The EasyIP Ecosystem is an AV-over-IP conferencing system in a box. It delivers professional-quality conference feeds for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.
This networked videoconferencing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, boardrooms and training rooms alike.

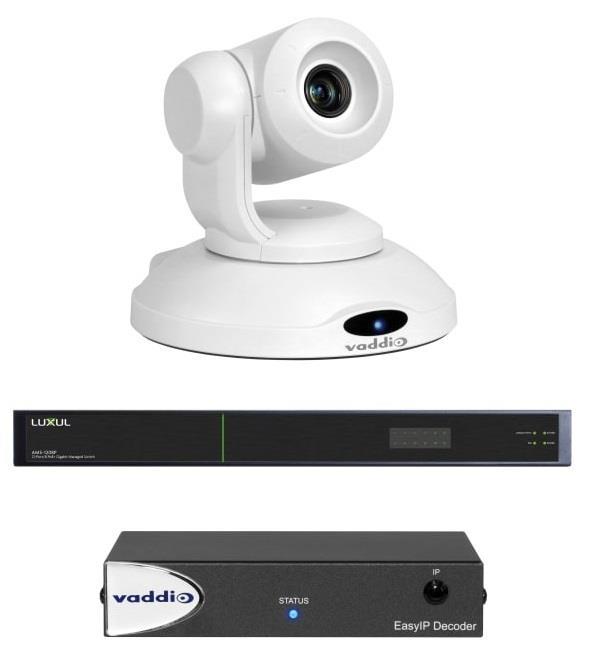

The Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle including one EasyIP Camera, one EasyIP Decoder and one Luxul AMS-1208p Switch.
Key Features
- Designed for flexible configuration in small, medium and large conference rooms
- Ideal for spaces with room dividers or partitions
- Provides USB 3.0 connection to leading web services: Teams/Skype for Business, Zoom, WebEx, BlueJeans, Google Meet and others
The EasyIP Ecosystem is an AV-over-IP conferencing system in a box. It delivers professional-quality conference feeds for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.
The EasyIP Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle.
New! Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
This Package Includes:

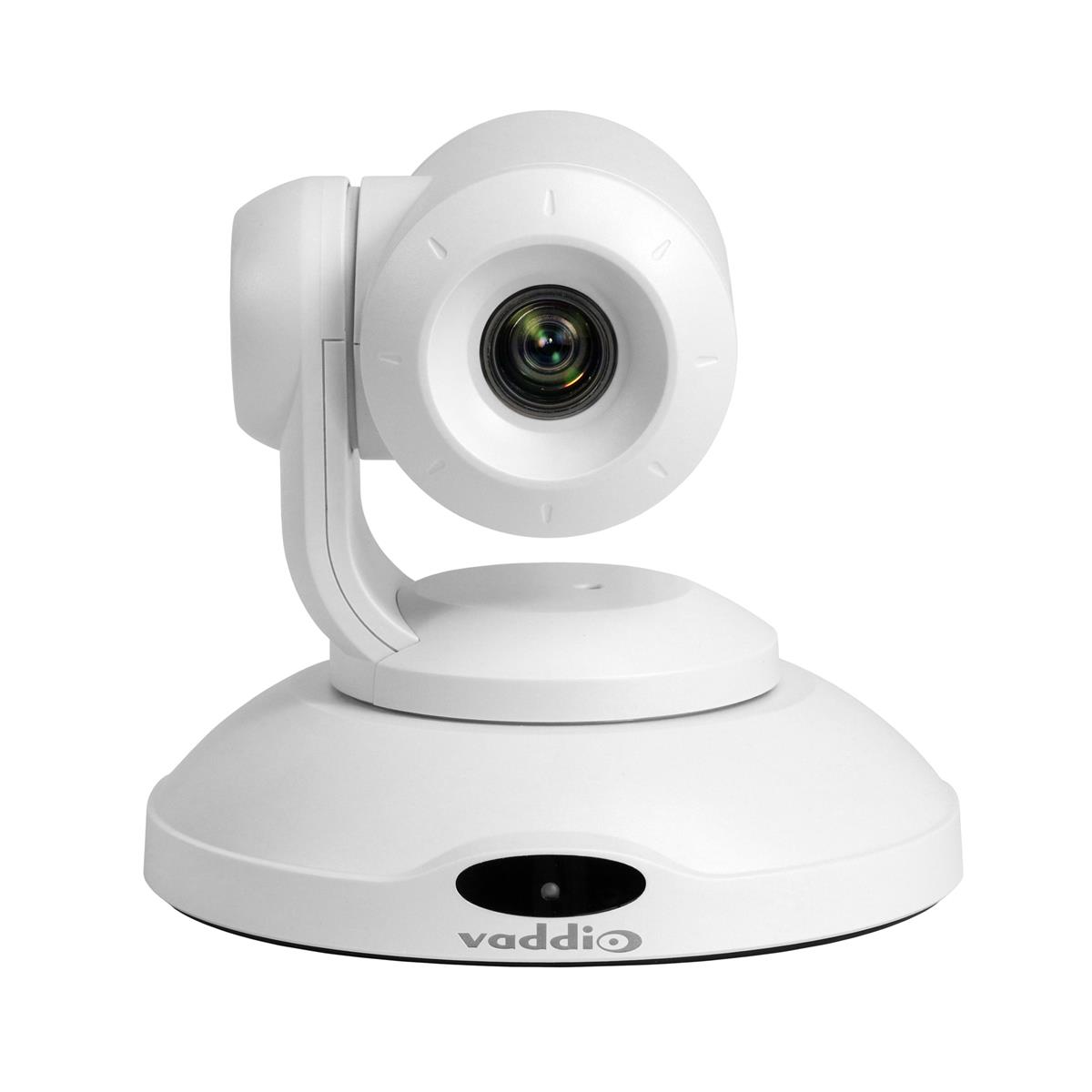

EasyIP 10 IP PTZ Camera (black or white)
Thin Profile Wall Mount (black or white) with mounting hardware
Vaddio IR Remote Commander
EasyIP Switch
Rack mount kit (for mounting the EasyIP Switch)
EasyIP Decoder
Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
3.05m Cat-5e snagless Cable, black
0.91 m Cat-5e cable
1.8 m USB 3.0 cable
1x 4-position phoenix-style connector
Power cord (for EasyIP Switch)
Quick-Start Guides
General
- Camera type
- Packaged solution, PTZ camera
- Color
- White
Image specification
- Max Resolution (Out)
- 1920x1080 60Hz
- Optical zoom
- 10 x
- Field of view (horizontal)
- 67 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0.4 Lux 100+ Recommended
- Min. working distance
- 10 mm
Functions
- Programmable presets
- Yes 16 + Custom Home
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 165 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes Connects to EasyIP decoder
- Built-in speaker
- No
- External speaker
- Yes Connects to EasyIP decoder
Connections
- Video out
- IP stream (RJ-45) EasyIP (AVoverIP) stream for video delivery to decoder
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 155 mm
- Depth
- 145 mm
- Height
- 163 mm
- Net weight
- 1.36 kg
Additional information
- Included Accessories
- See product text above
- Warranty
- 3 years
Packaging info
- Packaging size
- 360 x 360 x 460 mm
- Packaging weight
- 5.40 kg
