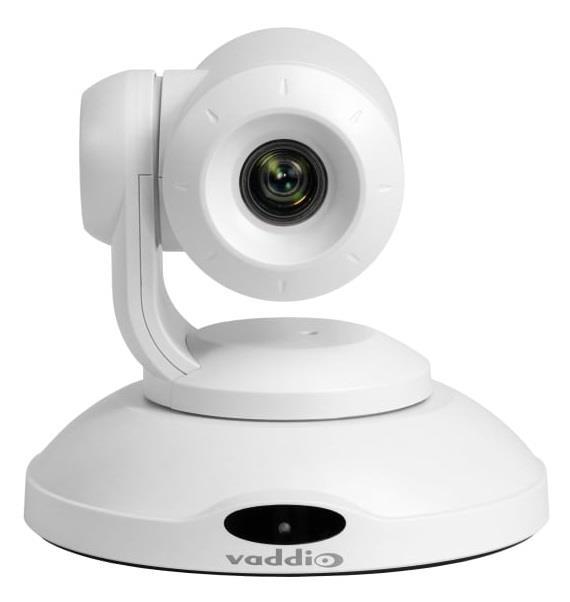

The EasyIP 10 Camera is an integral part of the EasyIP Ecosystem, an AV-over-IP solution for videoconferencing in small, medium and large conference rooms. It sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to UC soft clients and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. The PoE+ powered EasyIP 10 Camera is optimized to work with the Luxul AMS-1208P Managed PoE Switch; it also works with other properly configured 1 GB PoE switches.
Key Features:
- HD PTZ camera with 10x zoom, 67-degree horizontal field of view
- Camera is controlled via intuitive browser-based user interface from EasyIP Decoder
- One EasyIP (Network PoE+) video output
- Supports up to two EasyIP Decoders simultaneously
Do you need more zoom? Do you need an HDMI signal to feed into an EasyIP Mixer PIP? Check out the EasyIP 20 Camera.
The EasyIP 10 Camera is an integral part of the EasyIP Ecosystem, an AV-over-IP solution for videoconferencing in small, medium and large conference rooms. It delivers 1080p/60 resolution feeds for UC soft clients and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions.
The EasyIP 10 Camera delivers high definition imaging, exceptional color reproduction and fine detail. With a 67-degree wide horizontal field of view and 10x optical zoom, EasyIP 10 Camera, as part of the EasyIP Ecosystem, is ideal for meeting spaces in corporate, healthcare, government and education environments.
New! Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
In the box:
- EasyIP 10 Camera (black or white)
- Thin Profile Wall Mount (black or white) with mounting hardware and installation guide
- Vaddio IR Remote Commander
- 3.05m Cat-5e snagless Cable, black
- Quick-Start Guide
General
- Camera type
- PTZ camera
- Color
- White
Image specification
- Max Resolution (Out)
- 1920x1080 60Hz
- Optical zoom
- 10 x
- Field of view (horizontal)
- 67 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0.4 Lux 100+ Recommended
- Min. working distance
- 10 mm
Functions
- Programmable presets
- Yes 16 + Custom Home
- Ceiling installation/Flip image
- Yes Up/Down (Flip image for ceiling installation)
- Pan movement +/-
- 165 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes Connects to EasyIP decoder
- Built-in speaker
- No
- External speaker
- Yes Connects to EasyIP decoder

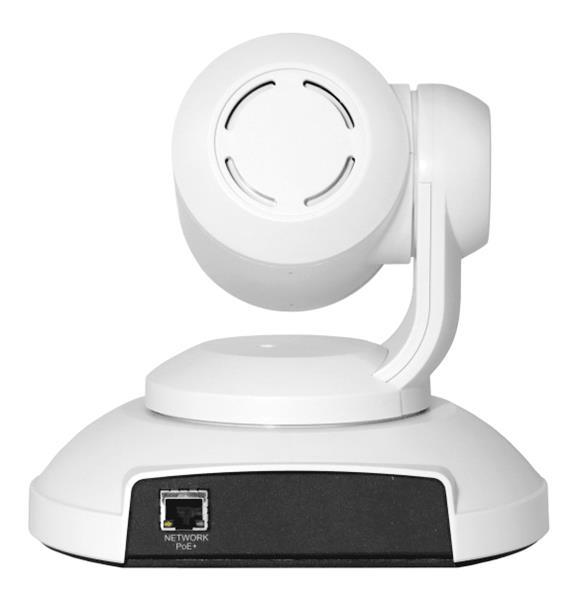

Connections
- Video out
- IP stream (RJ-45) EasyIP (AVoverIP) stream for video delivery to decoder
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 154.9 mm
- Depth
- 139.7 mm
- Height
- 160 mm
- Net weight
- 1.36 kg
Additional information
- Included Accessories
- See product text above
- Warranty
- 2 years
Packaging info
- Packaging size
- 360 x 360 x 460 mm
- Packaging weight
- 5.40 kg
- Barcode
- 840077505950
