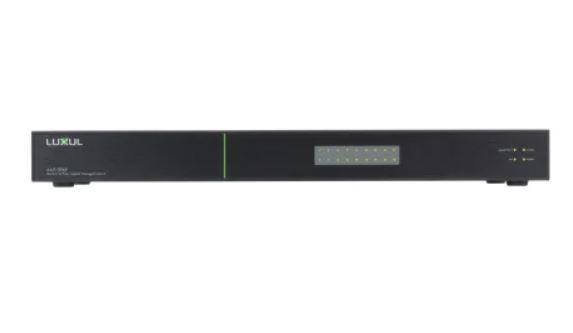

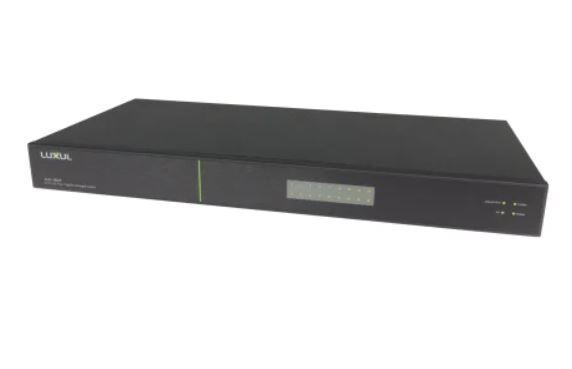

The EasyIP Switch (AMS-1208P) is preconfigured for use with Vaddio EasyIP products. The EasyIP Switch features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The switch includes 8 PoE+ ports, with a total power budget of 130 Watts. It also features 2 Gigabit RJ-45 and 2 Gigabit SFP ports for easy network expansion. The EasyIP Switch helps optimize your network with support for Layer 3 static routing between VLANs while also featuring simple-to-use management, VLAN and security capabilities to ensure optimal benefit from your home or office network.
Key Features:
• Seamlessly Integrate with AV Rack Systems
• Connect up to 8 PoE-Enabled Devices (Max Output 130 Watts)
• Optimize Your Network with VLAN, QoS and PoE Management
• Enhance Network Performance with Layer 3 Static Routing
• Simply Plug and Play
Features:
• Configured for use with Vaddio EasyIP Products
• PoE Self-Healing with auto-recovery and power scheduling
• 10, Gigabit RJ45 Ports
• 2, Gigabit SFP ports
• 8 Ports Support 802.3af/at PoE+ with 130 Watt Power Budget
• 24Gbps Switching Capacity
• Layer 3 Static Routing
• 802.1Q VLAN (with Trunking) and QoS Support
• Plug-and-Play Installation with Intuitive Management
• Simple Power Management of PoE-Enabled Devices
• User Selectable Green or Blue Front facing LEDs
• Fanless for Silent Operations
• Standard 19” Rack-Mount
• Three Year Limited Warranty
• The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)
This Package Includes:
- 12-port/8 PoE+ Gigabit Managed Switch or 18-port/16 PoE+ Gigabit Managed Switch. Please contact customer service for which unit is currently shipping.
- Power Cord
- Rack Mount Kit
- Quick Install Guide
- Managed
- Yes Browser-based User Interface for Remote Control
General
- Form factor
- 19" Rack, 1U, Desktop
- Switching capacity
- 24 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 10 x
- SFP Ports
- 2 x
Features
- PoE
- Yes
- PoE Ports
- 8 x
- PoE Budget
- 130 W
- Switch stacking
- No
Dimensions and Weight
- Width
- 442 mm
- Depth
- 211 mm
- Height
- 44.5 mm
- Weight
- 2.7 kg
Additional Information
- Power consumption
- 168 W Max
- Warranty
- 3 years
Packaging info
- Packaging size
- 90 x 520 x 300 mm
- Packaging weight
- 3.92 kg
- Barcode
- 840077505974
