TableMIC microphones connect to Vaddio products with EasyMIC ports to deliver professional-quality audio into your PC system for superior conferencing experiences.

Key Features:
• Capacitive touch control and acoustical fabric wrap
• Engineered for superior isolation from table vibrations
• Proven simple EasyMIC interface for fast and flexible installations

TableMIC microphones connect to Vaddio products with EasyMIC ports to deliver professional-quality audio into your PC system for superior conferencing experiences.

Designed to reduce distracting noises that arise in the conference room, the TableMIC’s solid metal base construction and engineered feet diminish table vibration noise that other table microphones experience.

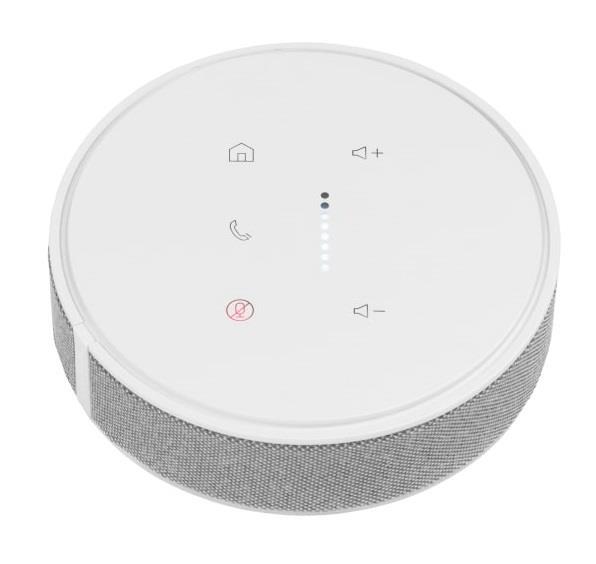

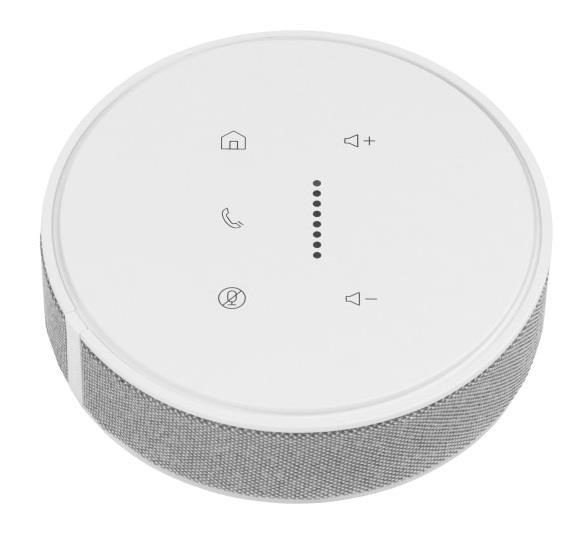

The top of the TableMIC features a capacitive touch control surface for silent operation. The ability to enable and disable button functionality during configuration can further simplify the end user's videoconferencing experience.

With 360-degree coverage from three unidirectional condenser microphone elements, a single TableMIC microphone provides excellent coverage for most meeting rooms.

Each of the three unidirectional cardioid microphone elements in the microphone is equipped with integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering and automatic gain control (AGC). The DSP in a companion product such as the Vaddio AV Bridge MATRIX PRO or EasyUSB Mixer/Amp provides an AEC reference from the far end and applies it to individual mic elements, so conference calls are crystal-clear on both ends of the conversation.

With its plug-and-play design, installation is simple: Just connect a standard Cat-5 cable between the TableMIC microphone and EasyMIC-compatible Vaddio equipment. Power, control and audio are all carried over the single cable. The TableMIC supports cable lengths of up to 100 feet (30 meters) between the microphone and EasyMIC ports.



General

Microphone application
Table 3x Unidirectional Cardioid elements

Audio specifications

Microphone type
Condensor x3
Directivity
Omnidirectional Full 360° pickup coverage from three unidirectional condenser microphone elements
Audio pickup range
4.5 m
Frequency range Min
100 Hz
Frequency range Max
16,000 Hz
Dynamic range
90 dB
Signal-to-noise ratio
0.02 dB

Connections

Audio outputs
EasyMic Port (RJ-45)
Cable lenght
7.6 m Included, Max 30m

Energy

Power Supply
Via EasyMIC port

Dimensions and weight

Width
127 mm
Depth
127 mm
Height
36.3 mm
Net weight
0.9 kg

Additional information

Color
White
Included Accessories
TableMIC microphone (black or white), 7.6m cat-5 cable (black or white), Quick-Start Guide
Warranty
3 years
Amount in delivery
Single unit

Packaging info

Packaging size
300 x 250 x 130 mm
Packaging weight
954 g
