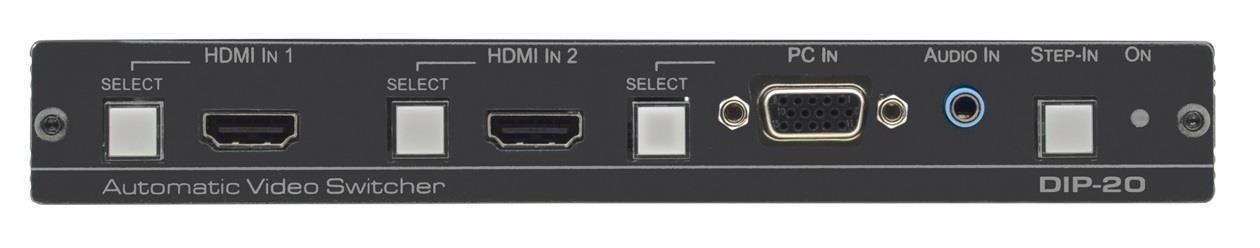

The DIP−20 is an 4K UHD HDBaseT transmitter and step−in commander for computer graphics video, HDMI, unbalanced stereo audio signals embedding and de−embedding. The DIP−20 accepts an HDMI and PC graphics video input, an Ethernet signal, serial data, and an unbalanced stereo audio input (which is embedded into the output signal), and transmits the signal via HDBaseT (twisted pair) cable to a compatible receiver (for example, the TP−588D or the TP−580RXR). The
DIP−20 is a PoE (Power over Ethernet) provider and can power compatible PoE acceptors, (for example, the TP−588D and the TP−590RXR).
Features:
· Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
· Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).
· HDTV Compatible.
· HDCP Compliant - Works with sources that support HDCP repeater mode.
· HDMI Support - Deep Color, x.v.Color™ and 3D.
· Automatic Live Input Detection - Based on video clock presence.
· Automatic Input Selection - Based on manual selection or last connected input.
· Automatic Analog Audio Detection & Embedding.
· I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
· Data Equalization and Reclocking.
· Local Balanced Audio De-Embedding.
· Support for Digital Audio Formats.
· Lockable EDID.
· System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.
· Local Step-In Switching - Button & contact closure.
· Power Supply - Supports PoE to power a remote receiver (such as TP−588D). Requires independent power supply.

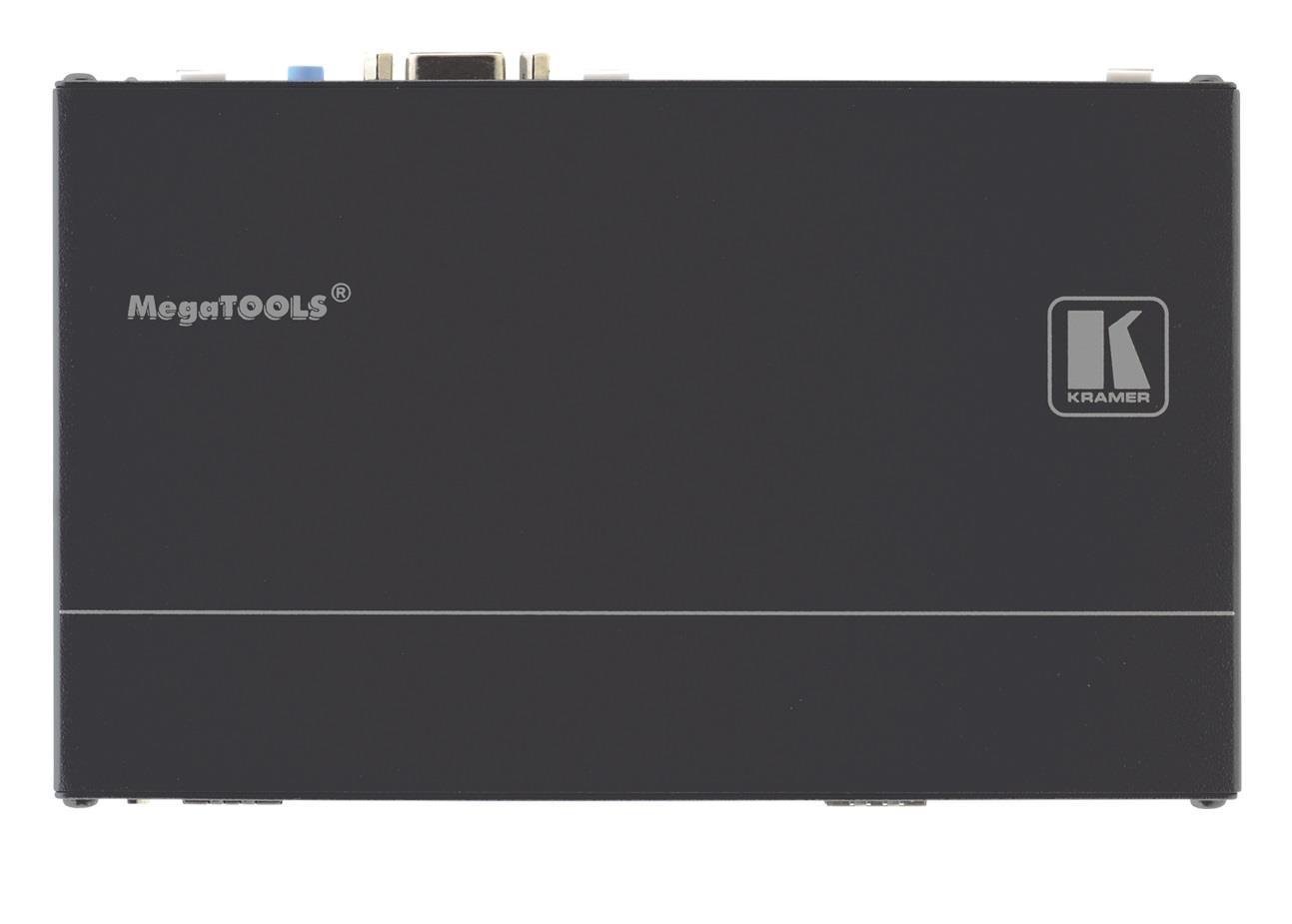

· Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Applications:
· Display systems requiring simple, automatic input selection
· Multimedia and presentation source selection
· Video distribution in hotel rooms and schools
General
- Application
- Switch
Video specification
- Resolution max out
- 3840x2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
Connections
- Video inputs
- 3
- Video outputs
- 1
- Video in
- HDMI x2
- Video in
- VGA
- Video out
- HDBaseT (RJ-45) Range up to 180m in ultra-mode (1080p @60Hz @24bpp)
- Lydinnganger
- 3,5mm tele Stereo, unbalanced
- Lydutganger
- 3,5mm tele Stereo, unbalanced
Functions
- Scaler
- Nei
- USB passthrough
- Nei
- Styring
- Auto-switching, Ethernet/IP (RJ-45), Front buttons, RS-232
Energy
- Power Supply
- 48V DC, 1.36A, Consumption: 630mA (includes 200mA for PoE over HDBaseT)
Størrelse & Vekt
- Width
- 187,5 mm
- Dypde
- 115 mm
- Høyde
- 25,4 mm
- Net weight
- 0,5 kg
Additional information
- Installation
- 19" Rack, 1U With RK-T2B rack adapter
- Installation
- Freestanding/Shelf
- Included Accessories
- Power adapter 48V DC 1.36A
- Warranty
- 7 år
Pakkeinformasjon
- Pakkestørrelse
- 357 x 172 x 60 mm
- Pakkevekt
- 1,15 kg
