VP−428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP−428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS−232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up−scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.
Key Features:
· PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high-quality scaling technology.
· HDMI 2.0 Compliant.
· HDCP 2.2 Compliant.
· HDBaseT Certified.
· System Range - For the HDBaseT output, extended reach of up to 100m using Kramer recommended cables.
· Provides Power (PoE) on HDBaseT Output to Compatible Devices.
· Max. Resolutions - Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
· Max. VGA Resolution - 1920 x 1200 @60Hz.
· Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness are set individually for each input.
· Constant Output Sync - No output disruption while switching between inputs when no video is detected.
· Audio - Unbalanced stereo and embedded audio.
· Auto Input Switching - Last connected & auto-scan, selectable.
· HDBaseT Tunneling - Supports full HDBaseT tunneling of Ethernet and RS-232 data.
· Non-Volatile Memory - Saves final settings.

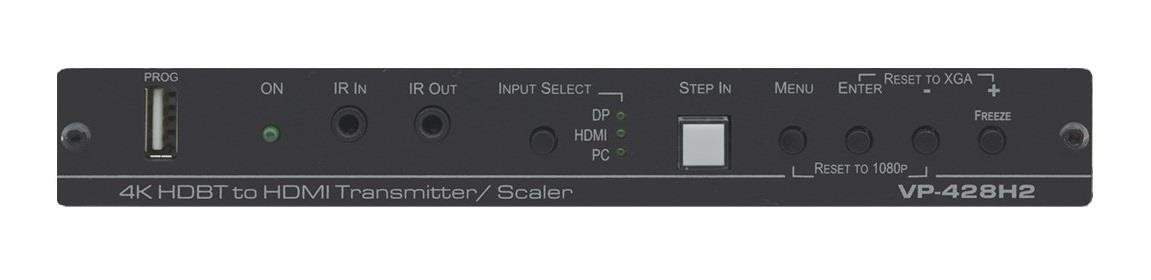

· Flexible Control Options - Front panel push buttons, RS-232, OSD (on-screen display) menu with front panel navigation buttons.
General
- Application
- Switch
Video specification
- Resolution max out
- 3840x2160 10.2Gbps (3.4Gbps per graphic channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0 HDMI/DP Input signal supports 4:4:4

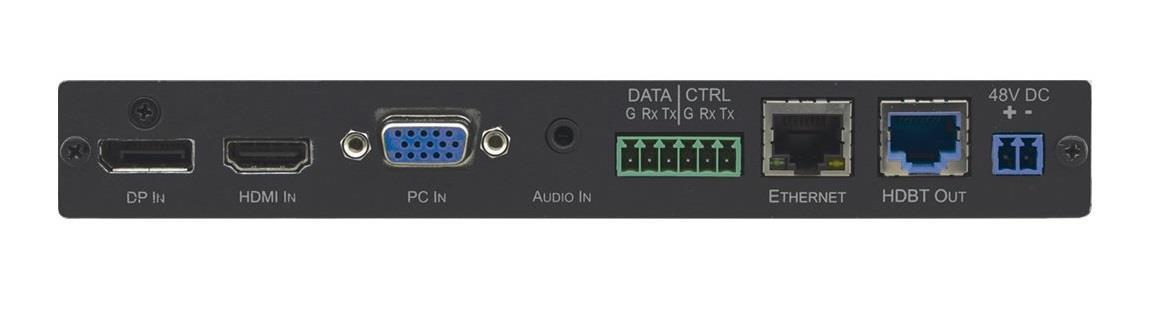

Connections
- Video inputs
- 3
- Video outputs
- 1
- Video in
- DisplayPort, HDMI
- Video in
- VGA Max 1920 x 1200 @60Hz
- Video out
- HDBaseT (RJ-45) Range up to 100m
- Lydinnganger
- 3,5mm tele
Functions
- Scaler
- Ja Upscales and downscales to / from all resolutions
- USB passthrough
- Nei
- Styring
- Auto-switching, Front buttons
- Styring
- IR cable connection x2 3,5mm tele
- Styring
- On-screen display, RS-232
Energy
- Power Supply
- 48V DC, 1,36A External Power Supply, Consumption: 48V DC, 410mA. Provides PoE to reciever
Størrelse & Vekt
- Width
- 223 mm
- Dypde
- 205 mm
- Høyde
- 25 mm
- Net weight
- 0,9 kg
Additional information
- Installation
- 19" Rack, 1U With RK-T2B rack adapter (optional)
- Installation
- Freestanding/Shelf
- Included Accessories
- Power supply
- Warranty
- 7 år
