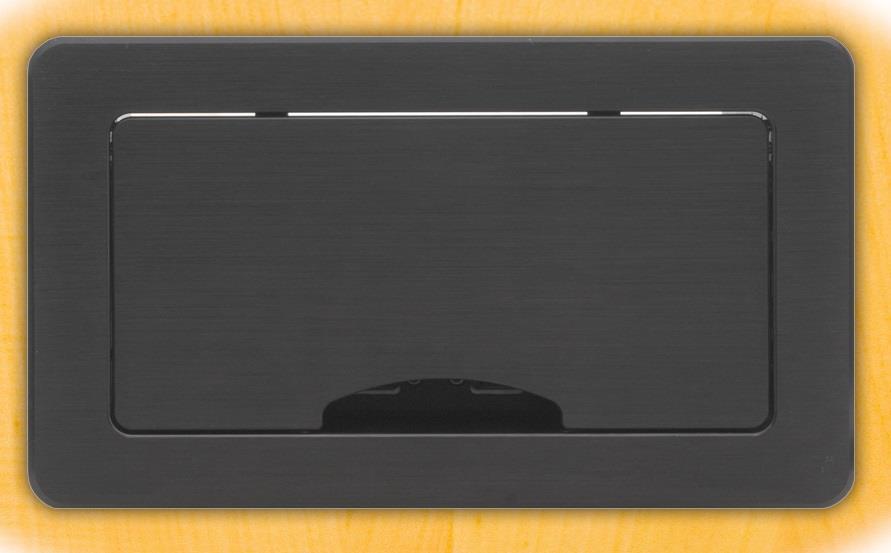

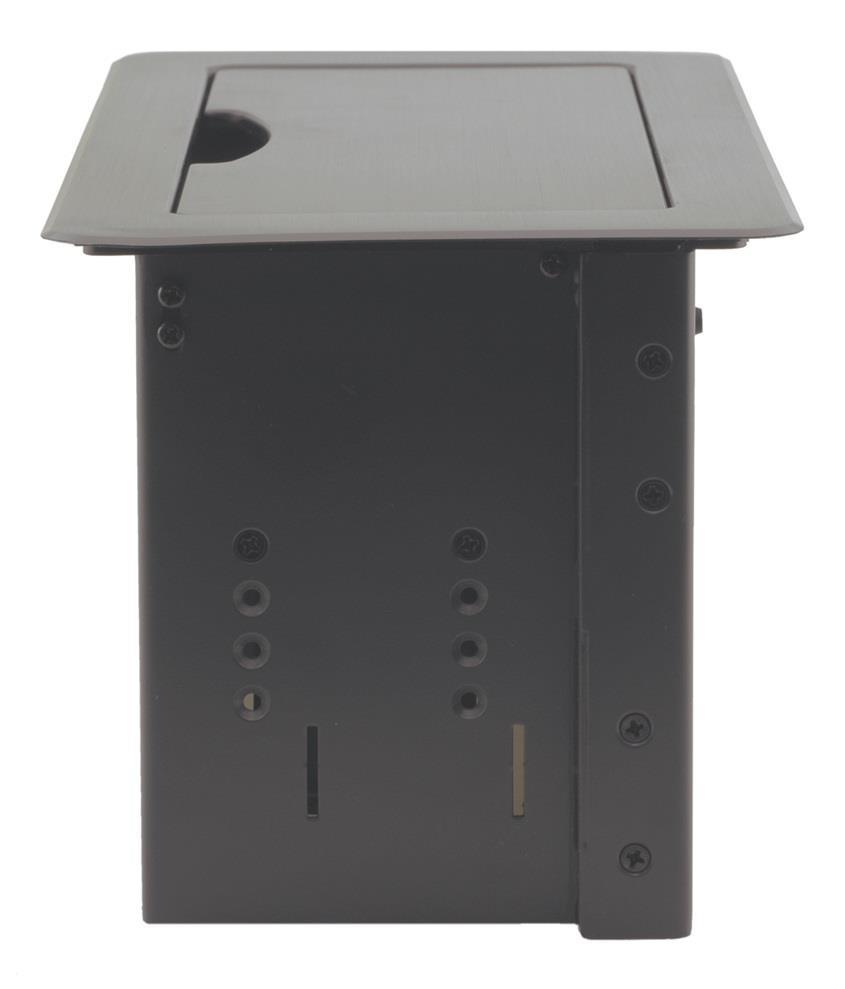

Table Mount Modular Multi–Connection Solution — Manually Retracting Lid
- Rectangular
- Retractable Lid
- Modular Design
The TBUS−6xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.
NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
- Inner Frame — 3 different "T6F" inner frame options are available.
- Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
- Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
- Retractable Lid — Manually slides into unit.
- Connector Depth — Adjustable.
- Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85").
- Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
- Weight — 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
General
- Application
- Table, lid 1-way
- Modular
- Ja
Connections
- HDMI
- Nei
- DisplayPort
- Nei
- USB type-C
- Nei
- USB type-A
- Nei
- VGA
- Nei
- DVI
- Nei
- Audio 3.5mm
- Nei
- Balansert lyd
- Nei
- Ethernet
- Nei
- Kabelgjennomføring
- Nei
- 230V Strøm
- 0 pcs. Sold separately
Størrelse & Vekt
- Length
- 243 mm
- Width
- 140 mm
- Dypde
- 130 mm
- Lenght cutout hole
- 225 mm
- Witdh cutout hole
- 123 mm
- Net weight
- 1,6 kg
Additional information
- Farge
- Sølv
- Warranty
- 7 år
Pakkeinformasjon
- Pakkestørrelse
- 100 x 80 x 30 mm
- Pakkevekt
- 300 g
