The EasyIP Mixer Base Kit is an AV-over-IP classroom system in a box. Ideal for large classrooms and multi-camera applications, the EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver our easiest production system to date.

It’s a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, houses of worship, government and training rooms alike.

Key Features:
• Compact A/V switcher supporting four EasyIP Camera video feeds plus an HDMI source
• 4x4 Dante Audio matrix (10x10 cross-point audio matrix)
• Concurrent 1080p/60 USB 3.0 and HDMI output
• HD PTZ camera with 10x zoom, 67-degree horizontal field of view
• Preconfigured PoE+ managed switch provides power and network for EasyIP endpoints
• Flexible control options with serial, telnet, trigger, Vaddio Device Controller, and web control

Installing and commissioning multi-camera designs has never been easier! The EasyIP Mixer revolutionizes the complex classroom A/V system, replacing expensive HDMI cable runs with category cables and saving precious time with simple video and audio routing in our intuitive web-based user interface.

Pair the EasyIP Mixer with up to four EasyIP cameras located on the network for exceptional room coverage. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switches between sources and delivers useful picture-in-picture (PIP) video streams. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speaker video through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications – including UVC control of connected cameras.

The EasyIP Mixer has robust audio mixing capabilities as well. A 4x4 Dante I/O allows for scalable networked audio to meet the needs of any application. No complicated audio routing - it’s easy to pair four EasyIP CeilingMIC D Dante microphones throughout the space. In larger rooms, select from a list of dozens of Dante audio products to select the optimal audio pickup of each event. Install the EasyIP Mixer in your existing classroom by utilizing the 2-channel analog audio I/O.

Experience worry-free presentations with the automation features built into the EasyIP Mixer. Connect Vaddio trigger devices like the StepVIEW Mat to recall a library of macros built into the web-based user interface. Control PIP settings, video sources, camera position presets and more with intuitive API integration for third party applications and control hardware. Store graphic overlays such as a company logo or speaker name to bring production quality to everyday events.

Get more from your video calls – switch between a view of the boardroom table and the action at the whiteboard without missing a beat. Enjoy crystal clear audio through built-in echo cancellation, ensuring that everyone hears both sides of the conversation without annoying feedback issues common with inexpensive audio devices.

The system is based around a PoE+ network switch like the EasyIP Switch or one of Luxul’s PoE+ managed switches. This network switch provides the power and control capabilities for the EasyIP Cameras as well as the EasyIP CeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools – the whole system can be configured in minutes.

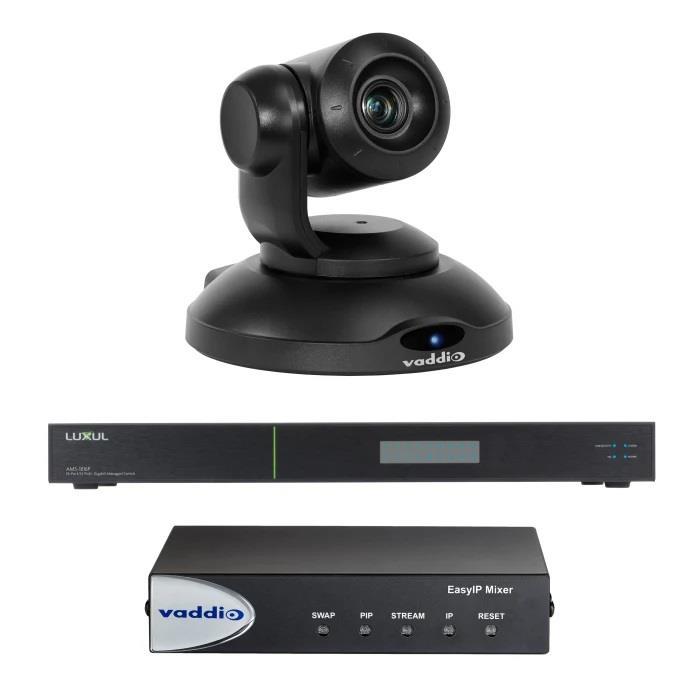

In the box:
EasyIP Mixer
Half-Rack mounting kit (for mounting the EasyIP Mixer into a full rack space)

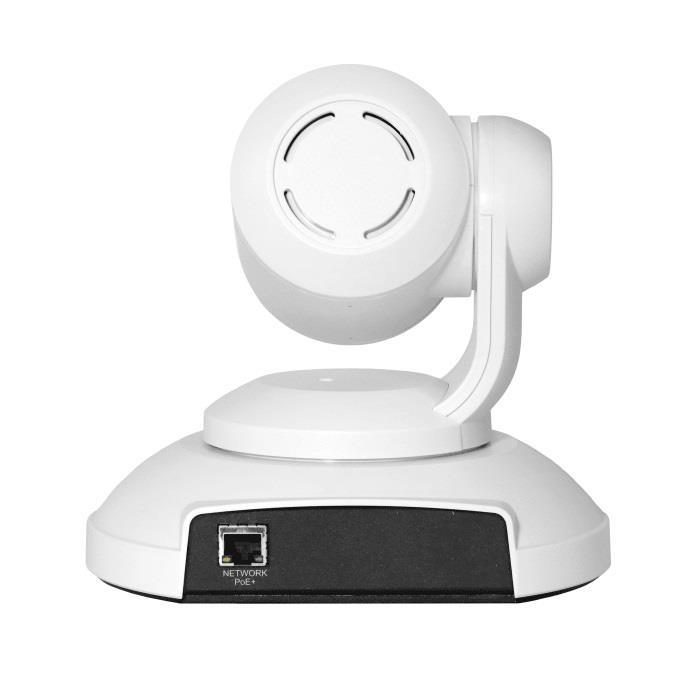

EasyIP 10 Camera (black or white)
Thin Profile Wall Mount with mounting hardware and installation guide
Vaddio IR Remote Commander
EasyIP Switch (Luxul AMS-1208p)
Rack Mount Kit (for mounting EasyIP Switch)
3.05m cat-5e snagless Cable, black
0.9m cat-5 cable, black
1.8m USB 3.0 cable, type A to B
6x 3-position phoenix-style connectors
Power Cord (for EasyIP Switch)
Quick-Start Guides
