Product page
Installation guide
Drawing

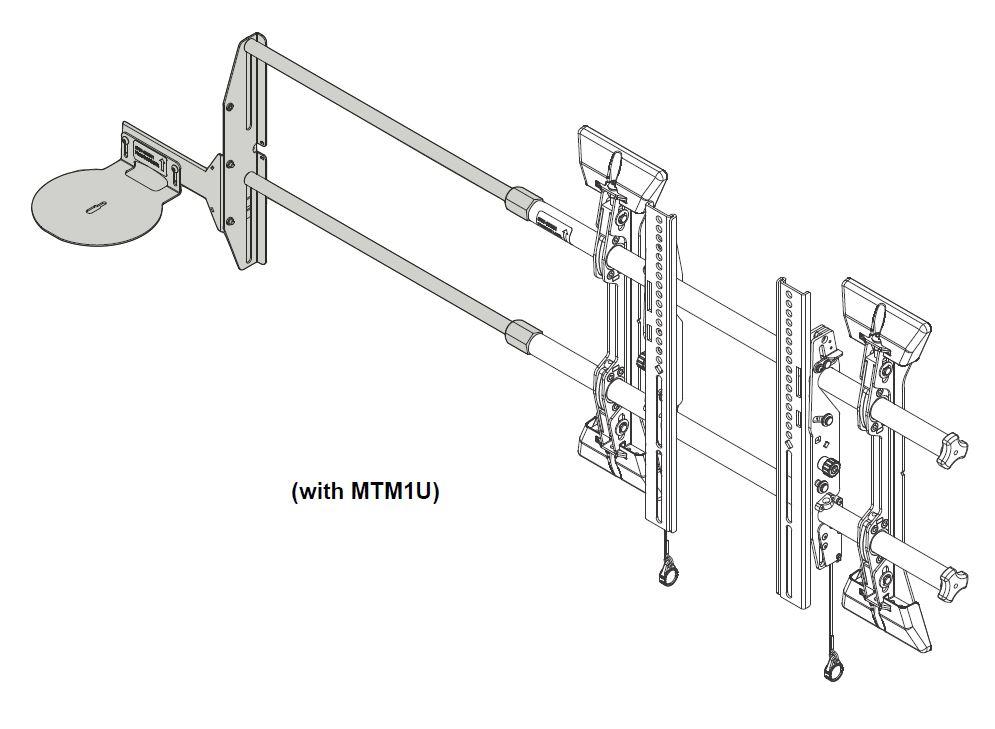

The FCA850 allows designers to place conferencing cameras to either side of the display for optimal viewing.

Compatible with:
XTM1U, LTM1U, MTM1U, LTA1U, MTA1U, XSM1U, LSM1U, MSM1U, LSA1U, MSA1U.

Key Features:

  • Infinitely adjustable to install flush to a wide range of display sizes
  • Post-installation leveling and height adjustment to achieve optimal positioning of cameras

Supported Cameras:
ConferenceSHOT10, ConferenceSHOTFX, EasyIP 10, RoboSHOT 12E HDBT, RoboSHOT 30E HDBT, RoboShot 12E USB, RoboSHOT 30E USB, RoboSHOT 12E HDMI, RoboSHOT 30E HDMI, RoboSHOT 12E NDI, RoboSHOT 30E NDI, RoboSHOT 12E SDI, RoboSHOT 30E SDI, RoboSHOT 12E AVBMP, RoboSHOT 30E AVBMP, Logitech Rally, Sony SRG-120 and Sony SRG-300



General

Color
Black
Lockable
No

Measurements and weight

Max weight capacity
2.27 kg
Width
643.7 mm
Height
304.8 mm
Depth
207.6 mm

Additional information

Warranty
10 years

Packaging info

Packaging size
723 x 317 x 165 mm
Packaging weight
6.80 kg

Accessories

Artikelnummer 2218197
