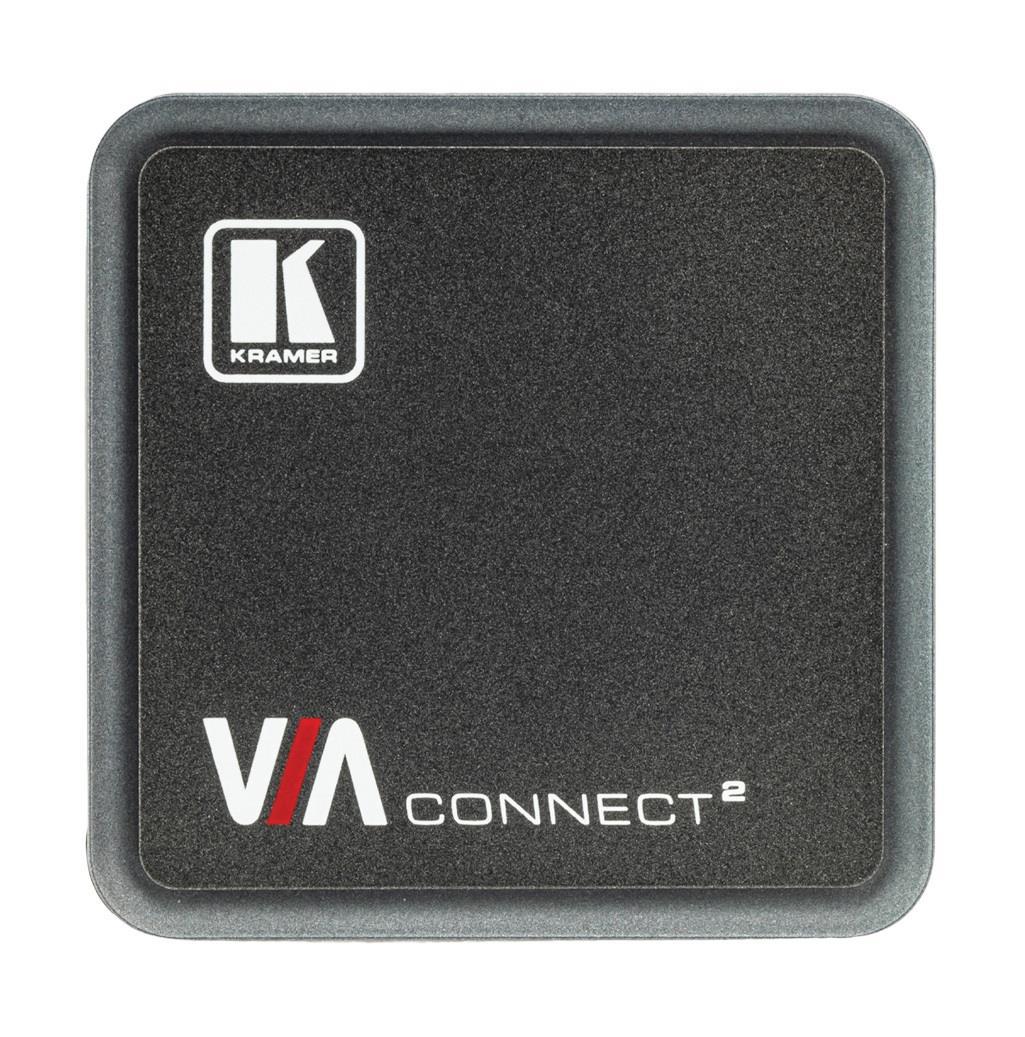

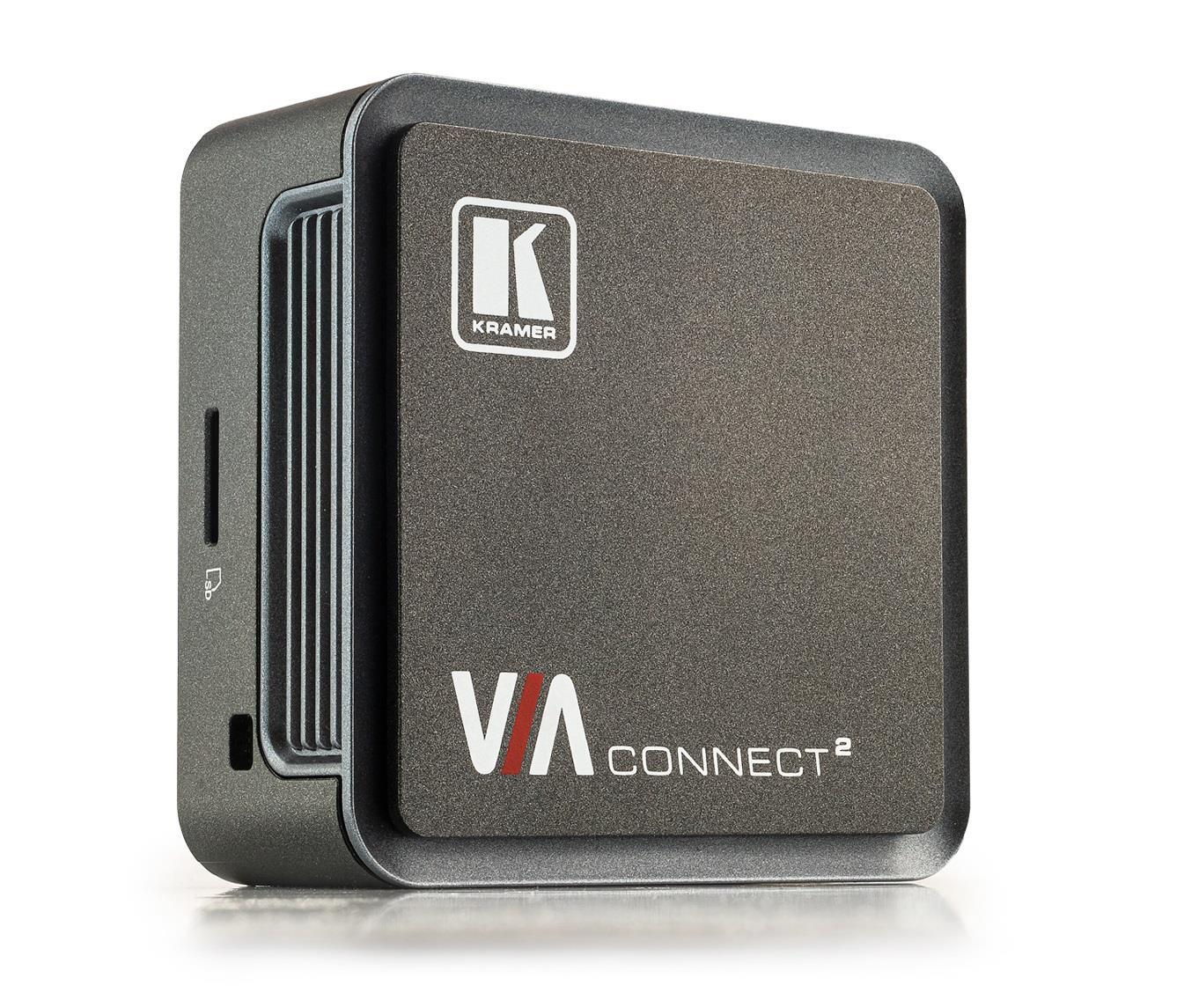

VIA Connect² is a smart, secure, wireless and wired presentation and collaboration platform that makes it simple to get actual work done during meetings and classes. With any laptop or mobile device, users can view, edit, and comment on documents in real time sessions. Meeting participants can display or stream full, uninterrupted video up to 4K@60Hz from their device, and even play YouTube® videos in full frame rate. Up to four participants can share their screens simultaneously on the main display either using the VIA app mirroring feature, iOS mirroring via AirPlay™, Windows & Android mirroring via Miracast™, or ChromeBook mirroring.
VIA Connect² supports 3rd party conferencing and apps, such as Microsoft Teams®, and Zoom®. The platform can handle most small to medium size meeting spaces and is ideal for classrooms and huddle spaces. VIA Connect² is super−compact (74x74mm) and flexible to install with both built−in Wi−Fi and LAN connectivity and includes industry−leading 1024−bit encryption for secure use on the internal network.
Key Features:
- Quick and Reliable Wireless Connectivity — A simple and intuitive user interface enables iOS™, Android™, Chromebook™, PC, and Mac™ device users to instantly connect to a main display. 2.4GHz/5GHz Wi–Fi and MIMO antennas establish and maintain a fast and reliable connection.
- Clientless Connectivity — Airplay, Miracast, Join Through Browser.
- Up to 4K@60 HDMI Wired Input — Enables hard–wiring, auto switching, for connecting a computer or any HDMI compatible device camera, multimedia player or computer that supports HDCP signals.
- Powerful Security Feature — 802.1x User authentication, 1024–bit encryption, dynamic room code.
- Built–In Wi–Fi and LAN.
- Comprehensive Collaboration Functionality — Whiteboard, filesharing, View Main Display, chat, etc.
- High–Quality Video Streaming — Supports up to 4K@60Hz resolution using the VIA app Multimedia feature.
- Simultaneous Display — Four participants can simultaneously present content on the main display.
- Seamless Live Video Streaming — Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more.
- Optimized for Video Conferencing — VIA Versa feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly.
- Wireless USB — Supports Microphone, Speaker & Camera.
- Built–in Third Party VC integration for Zoom™ & Teams™.
- Cloud–Based Management — Seamlessly compatible with VIA Site Management (VSM).
- Easy and Flexible Installation — With a super–compact form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.
General
- Application
- Wireless Collaboration, Wireless Conferencing
Functions
- Max connected users
- 254 pcs.
- Users on screen
- 4 (quad view)
- Extended desktop
- Yes For Windows PCs with driver installation, for Mac laptops via AirPlay
Video specifications
- Max output resolution
- 3840x2160 60Hz
- Max Framerate
- 30 FPS
compatibility
- Compatibility PC
- Yes Via Win App / Miracast mirroring or via Webbrowser
- Compatibility Mac
- Yes Via MAC App / AirPlay mirroring or via Webbrowser
- Compatibility iOS
- Yes Via iOS App or AirPlay mirroring
- Compatibility Android
- Yes Via Android App or Miracast mirroring
- Compatibility Chromebook
- Yes Via Chromebook mirroring
Connections
- Wireless sharing
- AirPlay, Desktop App, Miracast, Mobile App
- Donble included
- No
- Cable source
- HDMI x1 (4K 60Hz)
- Video out
- HDMI x1 (4K 60Hz)
Interactivity
- Touch support
- Yes Touchback function
- White/Blackboard function
- Yes Built-in Whiteboard function
- Moderator function
- Yes
Communication
- WiFi
- Yes 2.4GHz / 5GHz with MIMO antennas
- WiFi Standard
- 802.11 ac/b/g/n
- Dual/guest network
- Yes
- Network integration
- Yes
- Managed
- Yes via VIA Site Management (VSM)
- Security
- 802.1x User authentication, 1024–bit encryption, dynamic room code
Energy
- Power Supply
- External Power Supply, 12V DC 1.3A
- Consumption Max
- 15.6 W
Dimensions and weight
- Width
- 70 mm
- Depth
- 70 mm
- Height
- 33.4 mm
- Net weight
- 0.176 kg
Additional information
- Included Accessories
- Power adapter, Video Switching control cable, VESA mount
- Warranty
- 3 years 3 year warranty for hardware, 3 year warranty for firmware and software updates
Packaging info
- Packaging size
- 161 x 124 x 91 mm
- Packaging weight
- 578 g
