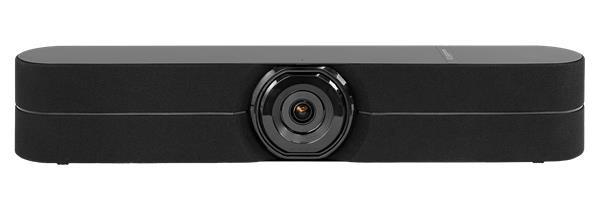

The HuddleSHOT® All-in-One Conferencing Camera with integrated audio is Vaddio’s newest solution optimized for huddle spaces. This USB conferencing product offers great performance, modern aesthetics and built-in IP management. HuddleSHOT provides professional 1080p/60 resolution for crisp, natural video and professional image - and its ultra-wide 125° horizontal FOV gets everyone in the picture.
HuddleSHOT is easy to deploy, easy to manage and easy to use. For huddle room users who need meetings to consistently start on time without any hiccups, the HuddleSHOT’s plug and play simplicity makes it extremely easy to use. For AV and IT managers, Vaddio’s intuitive browser-based user interface makes it simple to manage multiple HuddleSHOT cameras across multiple sites for easy enterprise deployments.
Key Features:
- All-in-one solution with PoE+ power for flexible installation anywhere
- Compatible with any software UC client using USB 3.0
- Full 10W wide range stereo speakers and two integrated microphones
- Two integrated beamforming microphones
- Remote management - browser-based user interface for remote configuration, management and control
- Fixed camera with 2x digital zoom and 1080p/60 resolution
Compatible Applications:
Compatible with any application that supports standard USB audio and video drivers, including but not limited to:
- Microsoft Skype for Business - Microsoft Skype™
- Microsoft Teams™
- Zoom®
- LogMeIn GoToMeeting®
- BlueJeans Network™
- Google Hangouts™ communication platform
- Amazon Chime™
- Cisco Webex® VidyoDesktop™
Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
General
- Camera type
- Video soundbar
- Color
- Black
Image specification
- Max Resolution (Out)
- 1920x1080 down to 180p at 60/30/15 fps, auto negotiated (USB 3.0)
- Framerate
- 60 FPS
- Optical zoom
- 0 x
- Digital zoom
- 2 x
- Field of view (horizontal)
- 125 ° 125° at 1x zoom (no video dewarp), 110° at 1x zoom (full video dewarp)
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0.15 Lux (F1.5), 100+ lux recommended
- Min. working distance
- 250 mm
Functions
- Programmable presets
- Yes Custom home position
- Ceiling installation/Flip image
- No
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- Yes 2x Beamforming microphones
- External microphone
- Yes 1x Vaddio Easy Mic Ceiling/Tablemic via CAT-5e cable (Option)
- Audio pickup range
- 3.6 m
- Built-in speaker
- Yes
- External speaker
- No

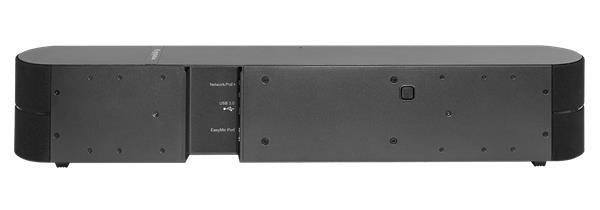

Connections
- Video out
- IP stream (RJ-45) H.264 RTMP or RTSP format
- Video out
- USB-C
- USB standard
- 3.0
- Audio inputs
- EasyMic Port (RJ-45) Adapter for 3,5mm tele as option
Energy
- Power Supply
- PoE+ (PoE injector with AC cord included)
Dimensions and weight
- Width
- 610 mm
- Depth
- 94 mm
- Height
- 105 mm
- Net weight
- 2.38 kg
Additional information
- Included Accessories
- HuddleSHOT camera, Bluetooth remote control, 2x AAA batteries, PoE+ pwr injector w AC cord, USB 3.0 A - C cable 1.8m, Cat-5e cable 3 m, Wall mount, QSG
- Warranty
- 2 years 1:th year Swap (customer sends faulty unit and gets a swap unit), 2:th year carry in.
Packaging info
- Packaging size
- 355 x 355 x 457 mm
- Packaging weight
- 6.02 kg
- Barcode
- 840077500023
