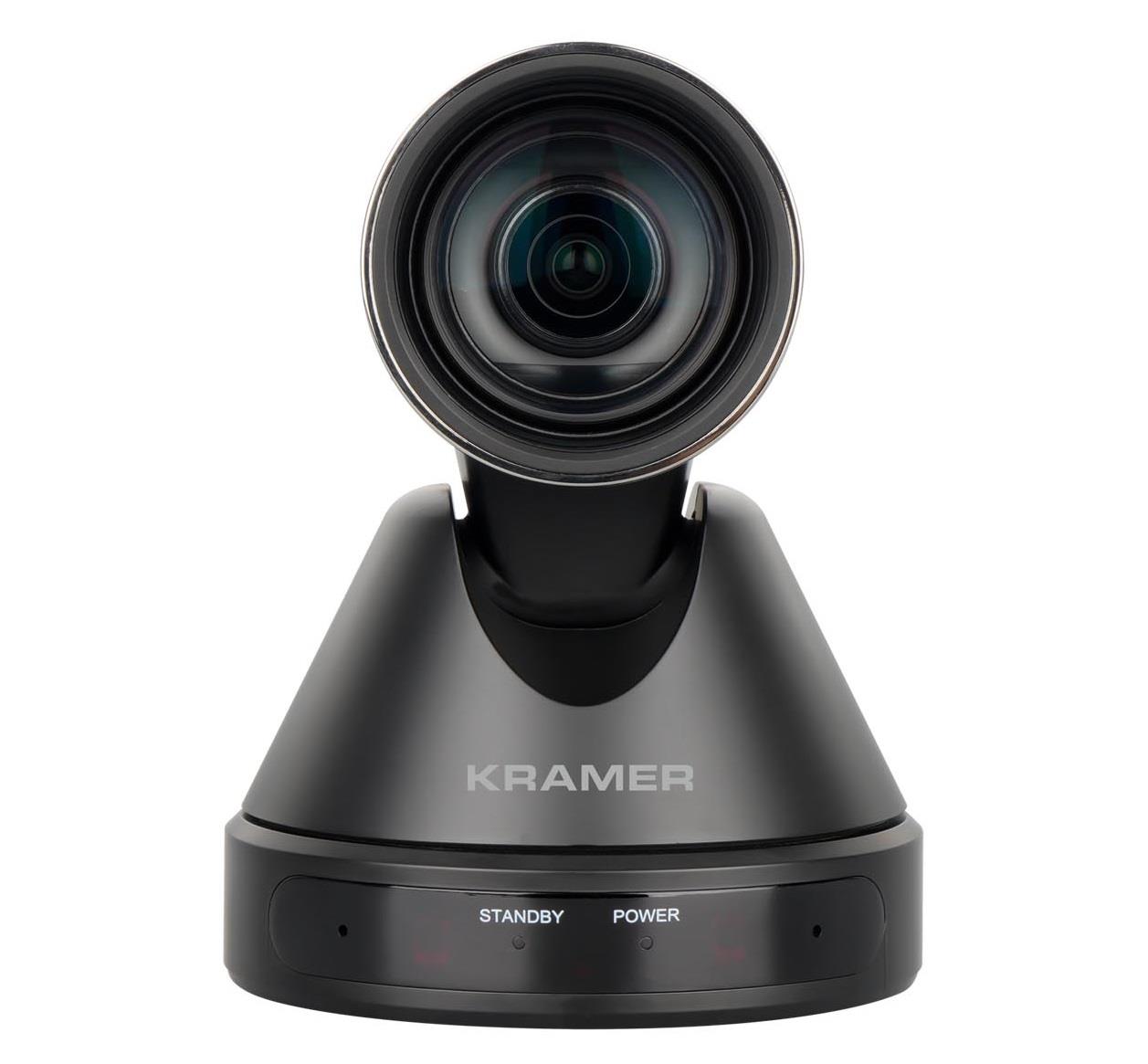

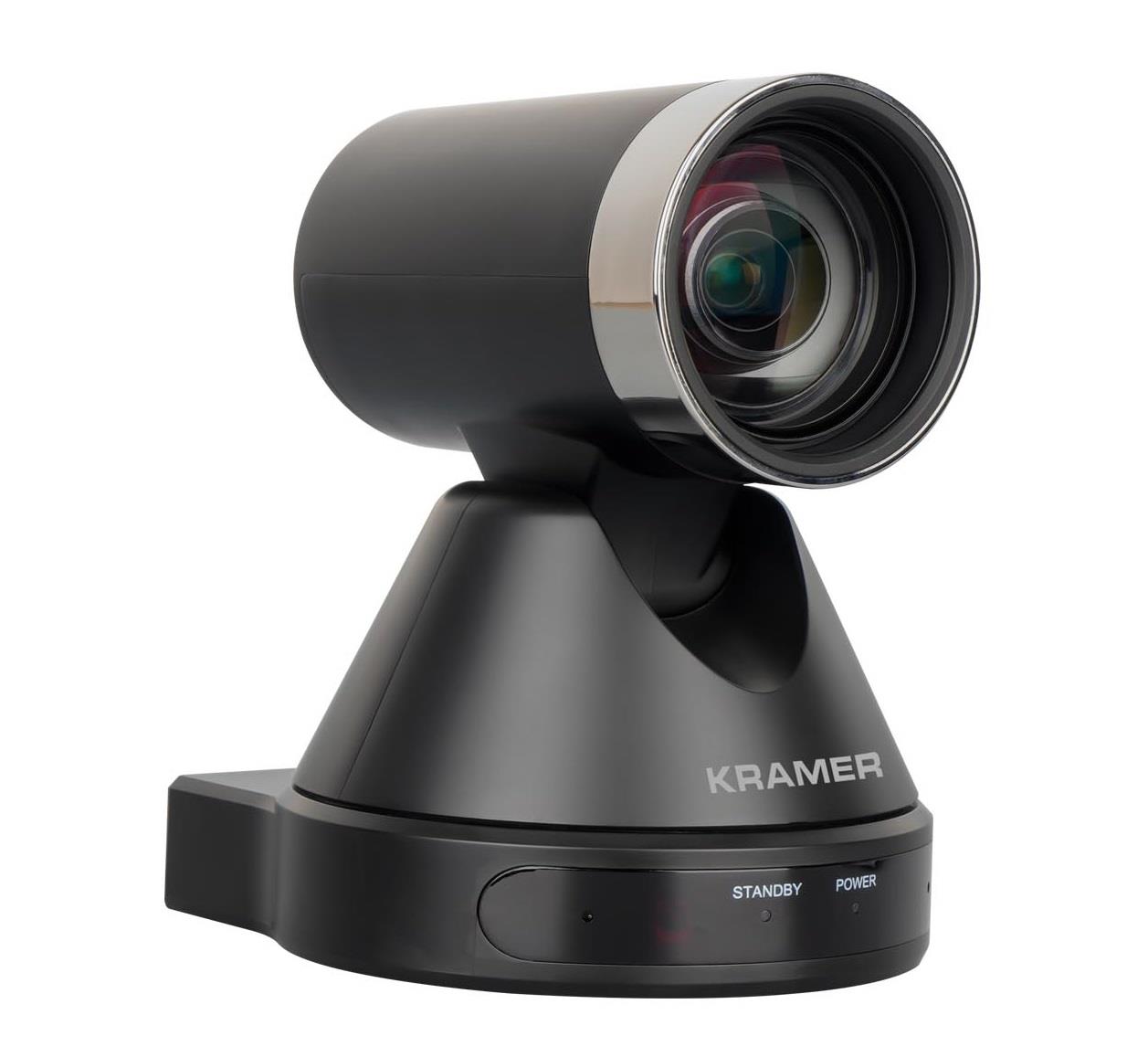

Professional HD camera for versatile video capture
Get a clear view of all meeting attendees, with special attention wherever it’s needed. This 1080p PTZ camera is equipped with high−power optical and digital zooms, ideal for zooming−in on specific participants in mid−sized and large video conferencing spaces. Silent PTZ movement and simple control let you capture only what you want, when you want it.
Versatile, high–quality video
- Wide–angle image capture with advanced PTZ control provides complete coverage of medium and large spaces, such as boardrooms, classrooms and auditoriums
- Outstanding image detail, with 1080p resolution, 12x optical zoom plus 16x digital zoom, and intelligent color optimization
- Clear image quality even in low light, with 2D and 3D digital noise reduction (DNR) and wide dynamic reduction (WDR)
- Easy, instant jumping between whiteboards and speakers, with a choice of 255 pre–set views
Simple deployment and operation
- Plug and play connection with a USB cable
- All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface
- Works with other meeting devices via IR and RS232 communication, enabling continued use of existing AV infrastructure
General
- Camera type
- PTZ camera
- Color
- Black
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 30 FPS
- Optical zoom
- 12 x
- Digital zoom
- 16 x
- Field of view (horizontal)
- 72.5 °
- Signal-to-noise ratio
- 55 dB
- Min. illumination
- 0.5 Lux F1.8, AGC ON
Functions
- Programmable presets
- Yes 255
- Ceiling installation/Flip image
- Yes Horizontal & Vertical Flip Support
- Pan movement +/-
- 170 °
- Tilt movement up
- 30 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes via 3,5mm tele
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- USB-B
- USB standard
- 3.0
- Audio inputs
- 3,5mm tele
Energy
- Power Supply
- 12V DC, 2A max
- Consumption Max
- 9.6 W
Dimensions and weight
- Width
- 145 mm
- Depth
- 98 mm
- Height
- 150 mm
- Net weight
- 0.94 kg
Additional information
- Included Accessories
- Power adapter and cord, 1 USB–C cable, remote controller, wall bracket, screws set, lens cover
- Warranty
- 3 years
Packaging info
- Packaging size
- 230 x 230 x 250 mm
- Packaging weight
- 2.49 kg
