Features

• Four Input / Output Card Slots
• Configurable Inputs / Outputs
• Analog Inputs (with Phantom Power per Channel)
• Analog Outputs
• Digital Inputs (AES/EBU and S/PDIF)
• Digital Outputs (AES/EBU and S/PDIF)
• AEC Inputs (with Phantom Power per Channel)
• Telephone Hybrid Card
• Configurable Signal Processing
• Rich Palette of Processing and Logic Objects
• 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus

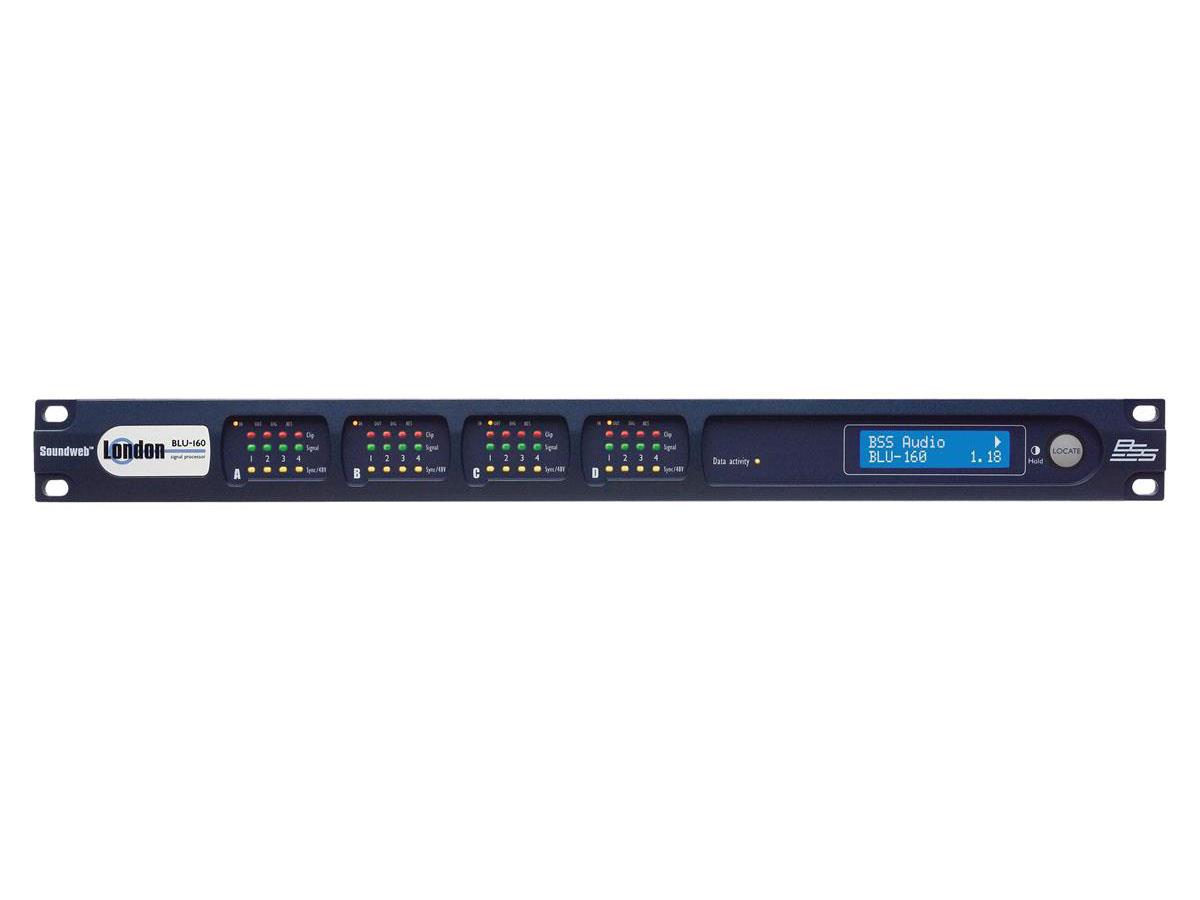

• Clear Front Panel LED Indication
• Informative Front Panel Display
• Bi-Directional Locate Functionality
• 12 Control Inputs and 6 Logic Outputs for GPIO Integration
• Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
• HiQnet Device
• Configuration, Control and Monitoring from HiQnet Audio Architect

Specifications

Chassis	19" (single rack space)
Custom I/O (card based)
Analog Inputs	up to 16
Digital Inputs	up to 16
AEC Inputs	up to 16
Analog Outputs	up to 16
Digital Outputs	up to 16
Telephone Connection	up to 4
Max Inputs/Outputs	16
Config	Software
LCD Display
Logic Processing
RS-232
GPIO
Signal Processing (MHz)	800
Cobranet	no
SWL Digital Audio Bus	256
AVB	no
Dante	no
