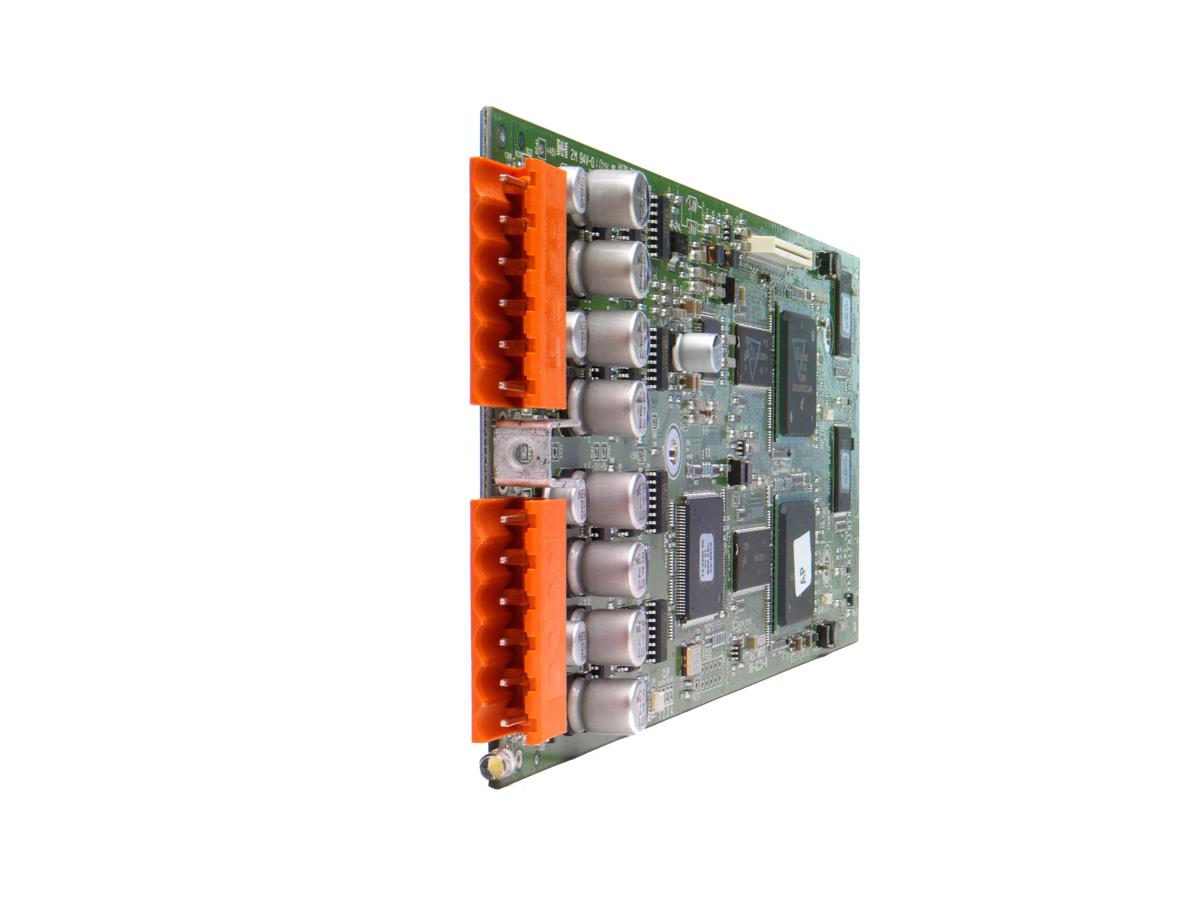

BSS BLUDIGITAL-OUT | Utgångskort AES/EBU-S/PDIF

Artikelnummer: 2264060
SKU: BSSBLUDIGITALOUT-M
EAN: 691991033438

Not in stock

Look at price and place order

Brosjyre Soundweb London (pdf).pdf

Datablad SL digitale kort (pdf).pdf

The Digital Output Card can be configured in the following ways:

2 Stereo AES/EBU Signals
1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
2 Stereo S/PDIF Signals

The Digital Output Card has two Combicon connectors which are used as follows:

Connector 1
- Stereo Audio, Channels 1 and 2 - AES/EBU / S/PDIF
- Stereo Audio, Channels 3 and 4 - AES/EBU / S/PDIF
Connector 2*
- Clock Input - High Impedance
- Clock Input - 75R Terminated

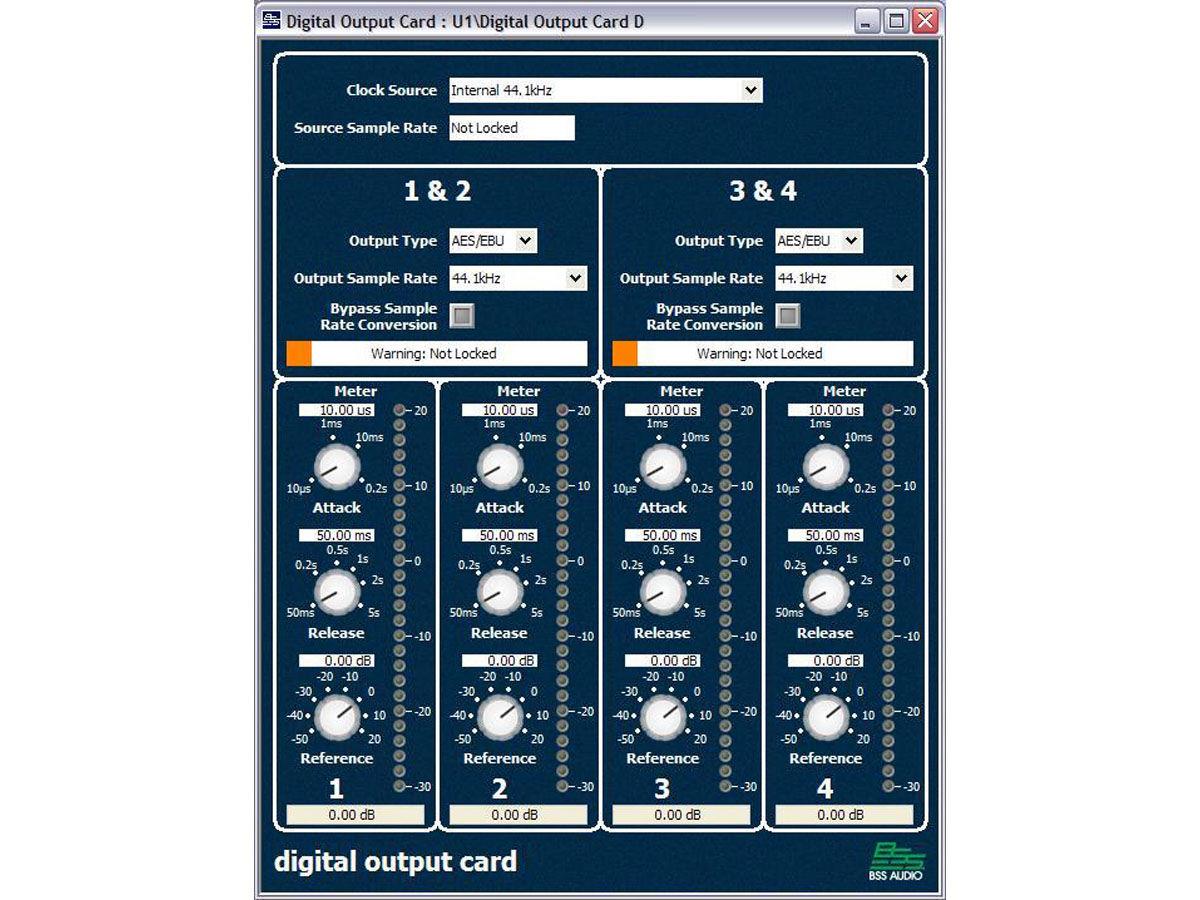

* active clock selected within HiQnet London Architect

Connector	[Clock Input]	[Audio Output]
Signal	3&4	1&2	3&4	1&2
---	---	---	---	---
Pin	[S + -]	[S + -]	[S + -]	[S + -]
---	---	---	---	---

Clock Input	Positive: to +	AES/EBU	Positive: to +	S/PDIF	Signal: to +
	Negative: to -		Negative: to -		Signal Ground: to -
	nil or -: to S		Shield: to S		Shield*: to S
				* Short "S" to "-" for unshielded cable

Specifications

Digital Outputs	4
Digital Output Type	AES/EBU and S/PDIF
Word Sync Input
