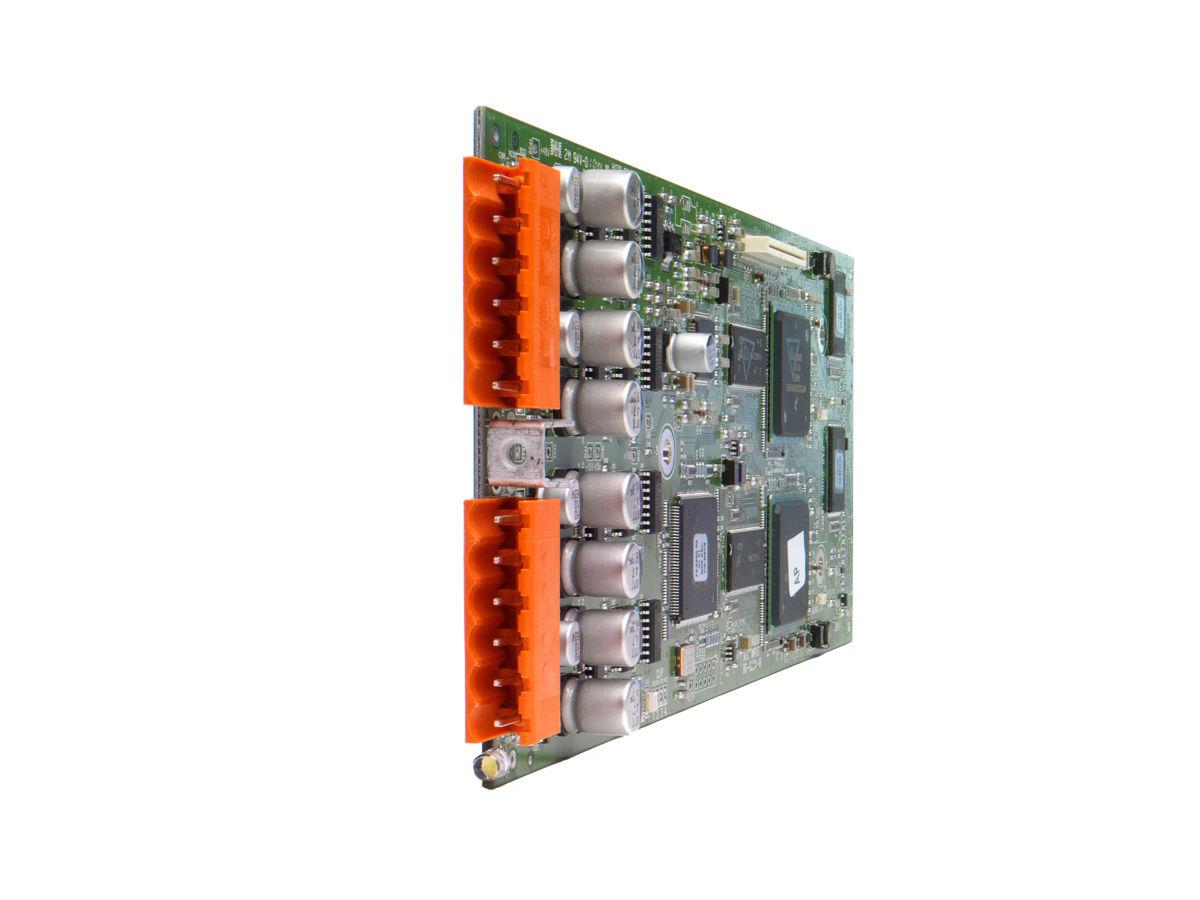

BSS BLUCARD-IN | Ingångskort 4ch Mic/Line

Artikelnummer: 2264057
SKU: BSSBLUCARDIN-M
EAN

In stock

Look at price and place order

BSS Soundweb London brosjyre (pdf).pdf

Datablad BSS SL digital cards (pdf).pdf

The Analog Input Card has two Combicon connectors which are used as follows:

Connector 1
- Balanced / Unbalanced Audio, Channel 1 - Mic/Line
- Balanced / Unbalanced Audio, Channel 2 - Mic/Line
Connector 2
- Balanced / Unbalanced Audio, Channel 3 - Mic/Line
- Balanced / Unbalanced Audio, Channel 4 - Mic/Line

Connector	[Mic/Line Combicon]	[Mic/Line Combicon]
Signal	4	3	2	1
---	---	---	---	---
Pin	[S + -]	[S + -]	[S + -]	[S + -]
---	---	---	---	---

Balanced	Hot: to +	Unbalanced	Hot: to +
	Cold: to -		Link to Shield: to -
	Shield: to S		Shield: to S

Specifications

Analog Inputs	4 mic/line
Input Type	balanced/unbalanced
Phantom Power

Packaging info

Packaging size: 251 x 160 x 96 mm
Packaging weight: 1,000 g
