Features
- Four Input / Output Card Slots
- Configurable Inputs / Outputs
- Analog Inputs (with Phantom Power per Channel)
- Analog Outputs
- Digital Inputs (AES/EBU and S/PDIF)
- Digital Outputs (AES/EBU and S/PDIF)
- AEC Inputs (with Phantom Power per Channel)
- Telephone Hybrid Card
- Rich Palette of Logic Objects
- AES67 and Dante Audio with support for Dante Domain Manager
- 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus

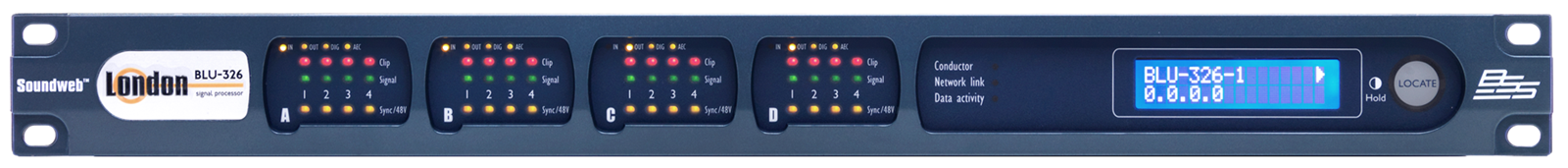

- Clear Front Panel LED Indication
- Informative Front Panel Display
- Bi-Directional Locate Functionality

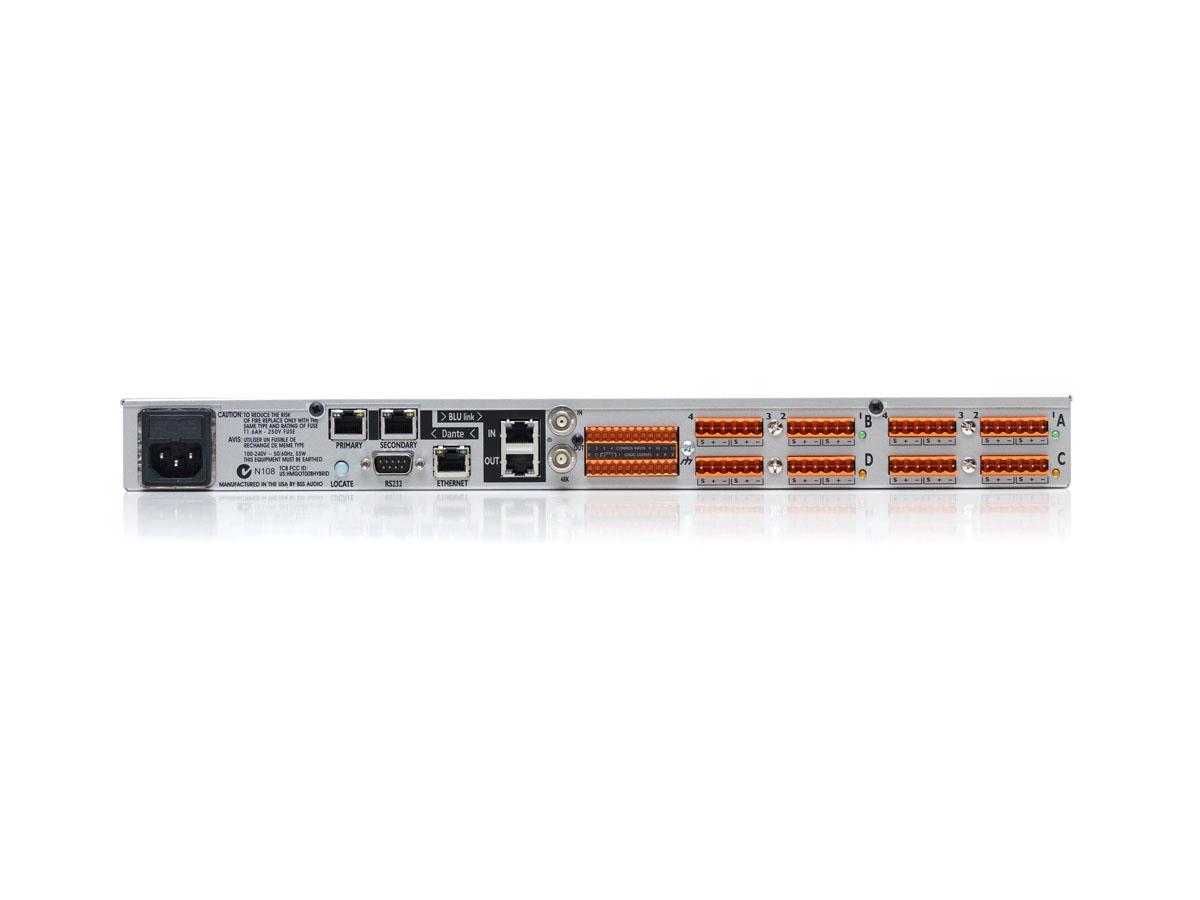

- 12 Control Inputs and 6 Logic Outputs for GPIO Integration
- Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
- HiQnet Device
- Configuration, Control and Monitoring from HiQnet Audio Architect
- AES67 Compatible
Specifications
Chassis | 19" (single rack space) |
---|---|
Custom I/O (card based) | ![]() |
Analog Inputs | up to 16 |
Digital Inputs | up to 16 |
AEC Inputs | up to 16 |
Analog Outputs | up to 16 |
Digital Outputs | up to 16 |
Telephone Connection | up to 4 |
Max Inputs/Outputs | 16 |
Config | Software |
LCD Display | ![]() |
Logic Processing | ![]() |
RS-232 | ![]() |
GPIO | ![]() |
Signal Processing (MHz) | no |
Cobranet | no |
AVB | no |
Dante | ![]() |
SWL Digital Audio Bus | 256 |
General
- Model series
- Soundweb
- Application
- Chassis
Packaging info
- Packaging size
- 620 x 500 x 110 mm
- Packaging weight
- 5.60 kg
