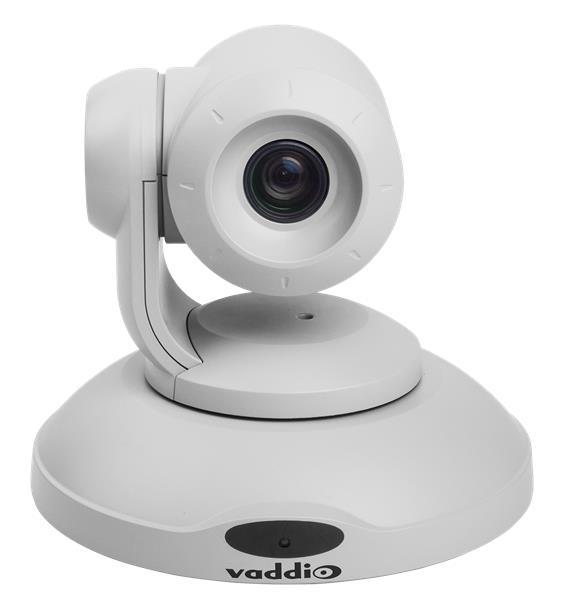

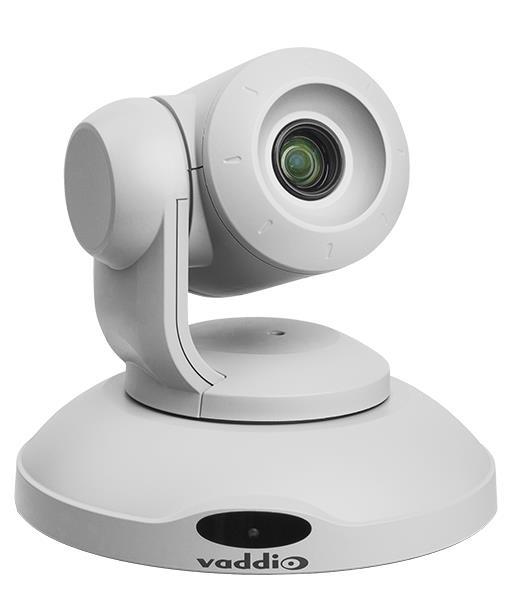

Ideal for video conferencing rooms, ConferenceSHOT AV integrates a PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect up to two microphones and an external speaker directly to the camera. Easy plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.
Key Features:
- UCC system with PTZ camera, microphone inputs and speaker output
- USB 3.0 connection to leading web services: Skype For Business, Zoom, Webex, Google Hangouts, BlueJeans and others
- HD PTZ Camera with 10X zoom, 74° horizontal field of view, supporting up to 1080p/60 resolution
- Ideal for small meeting spaces in corporate, healthcare, government and education environments
- Available in a variety of bundles
Ideal for small to medium conference rooms, the Vaddio™ ConferenceSHOT AV brings video conferencing to a new level with sharp video and robust sound. ConferenceSHOT AV is a 10x zoom PTZ camera with audio inputs and outputs that let you connect a speaker and two Vaddio microphones.
The USB 3.0-based ConferenceSHOT AV video conferencing camera supports any UC soft client such as Skype for Business, WebEx, Google and others. ConferenceSHOT is UVC compliant, requiring no drivers to be installed on your PC - just plug and play.
With a 74-degree wide horizontal field of view and 10x optical zoom with 11x zoom in super-wide mode, the ConferenceSHOT AV is ideal for small meeting spaces in corporate, healthcare, government and education environments.
The high-definition ConferenceSHOT AV conference room camera provides amazing high-quality imaging, exceptional color reproduction and truly fine detail.
ConferenceSHOT AV incorporates the Vaddio Remote Management system - providing remote monitoring, management and control of a distributed camera network. IP-accessible and a web-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
ConferenceSHOT AV Speakers are sold separately or in system bundles. For smaller rooms, the ConferenceSHOT AV with a single EasyUSB table MicPOD is ideal; for larger rooms, two EasyUSB MicPOD microphones (table or ceiling) connected with the Vaddio powered loudspeaker provide complete room coverage.
In the box:
- ConferenceSHOT AV camera (black or white)
- Quick-Start Guide
- PoE+ Midspan Power Injector with AC cord set(s)
- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander with audio controls
- 1.8m USB 3.0 cable, type A to B
- 3m cat-5 cable, black
- 1x 4-position phoenix-style connector
General
- Camera type
- PTZ camera
- Color
- White
Image specification
- Max Resolution (Out)
- 1920x1080 p
- Framerate
- 60 FPS
- Optical zoom
- 10 x
- Field of view (horizontal)
- 74 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0.4 Lux F 1.6
- Min. working distance
- 10 mm
Functions
- Programmable presets
- Yes 16 + Custom Home Position
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 165 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes Up to 2x EasyMIC microphones can connect to the camera (Optional)
- Built-in speaker
- No
- External speaker
- Yes Optional speaker / connection to external speaker
Connections
- Video out
- IP stream (RJ-45), USB-B
- USB standard
- 3.0
- Audio inputs
- EasyMic Port (RJ-45) x2
- Audio outputs
- Euroblock line Balanced
- Audio outputs
- USB-B
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 155 mm
- Depth
- 145 mm
- Height
- 163 mm
- Net weight
- 1.36 kg
Additional information
- Included Accessories
- Camera, QSG, PoE+ Injector w. AC cord set, Wall Mount w. Mnt hardware, IR Remote, 1.8m USB 3.0 A-B cable, 3m CAT-5 cable, 4-pin phoenix connector
- Warranty
- 2 years
Packaging info
- Packaging size
- 317 x 307 x 350 mm
- Packaging weight
- 4.87 kg
