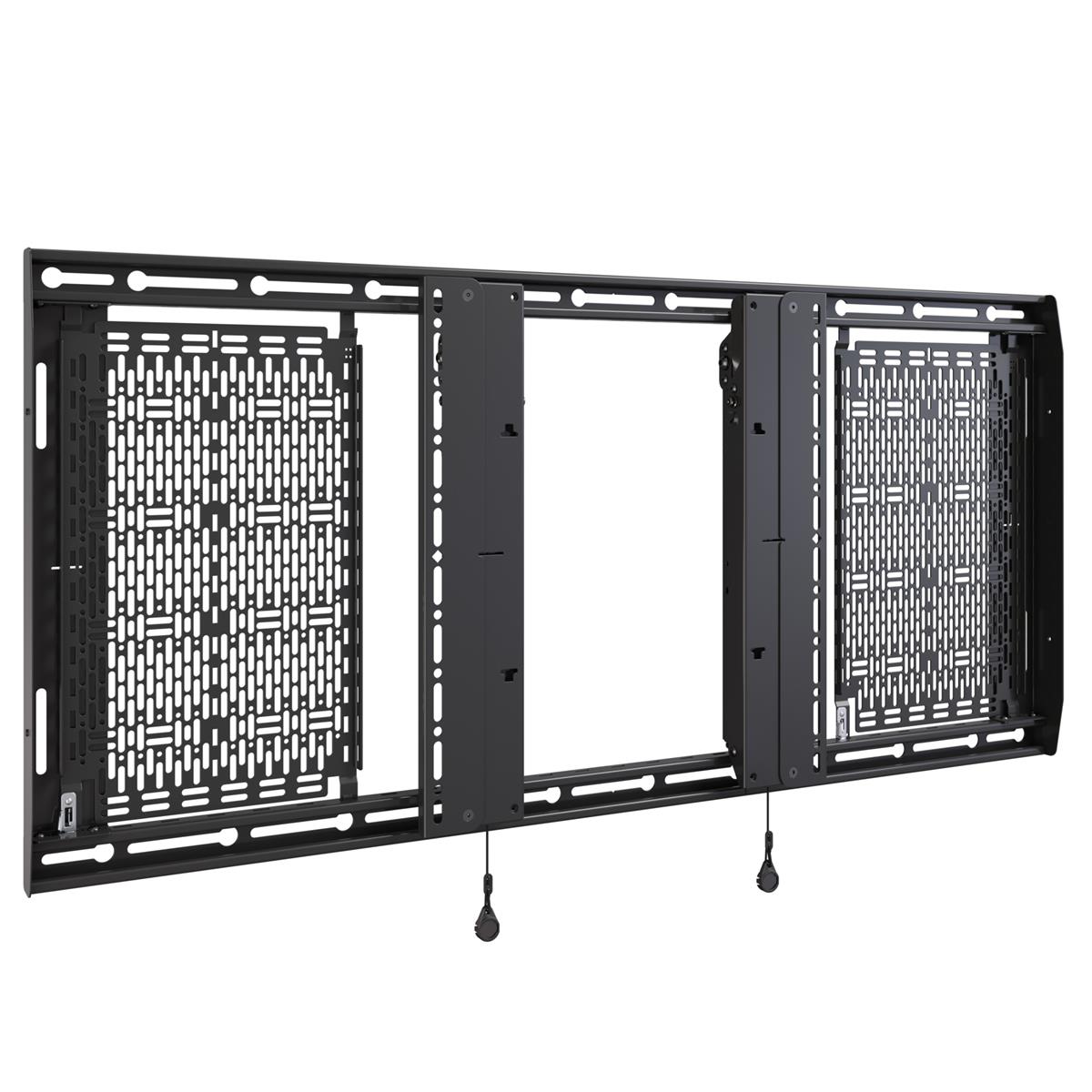

This all-in-one configurable wall mounting system is designed to improve efficiency by streamlining installation workflow. AV professionals can increase productivity and add money to the bottom line with this new system, especially for mass rollouts. Install on any wall and neatly store AV devices with simple, unparalleled service access. Install 2-6 small devices behind the display on integrated Lever Lock™ storage panels. Tempo Wall Mount System is thoughtfully designed with feedback from installers for faster deployments.
Accelerate AV Installations
One part number, one box, one order!
Ship to site pre-loaded with small devices and cabling.
Save Money
Reduce onsite installation personnel and time.
Minimize last-minute shipping costs of missing parts.
Feature Flexibility
Wall plate and extending interface design facilitates centering display in the right position.

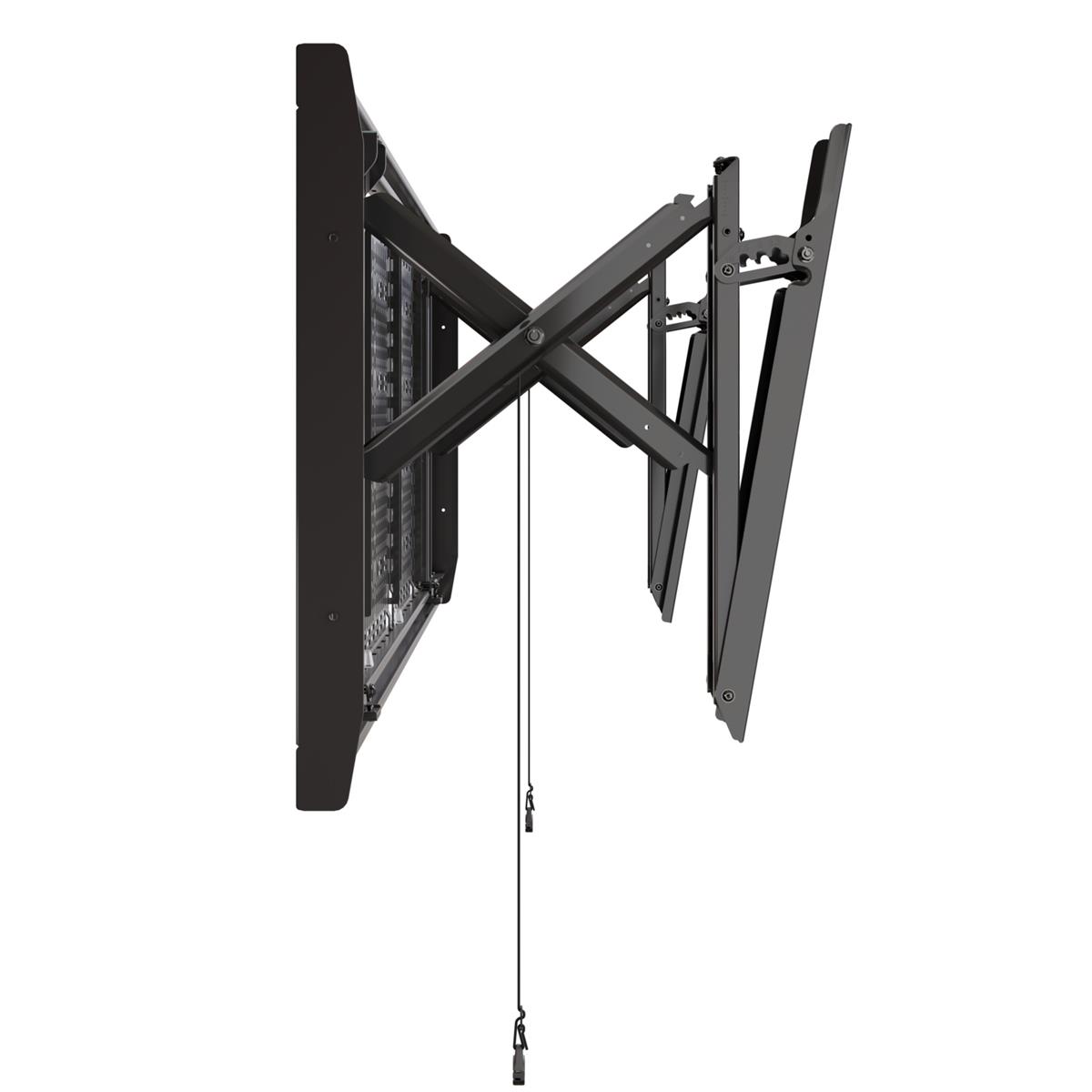

10° of adjustable display tilt in 2.5° increments.
Streamlined for Success
Total installation depth facilitates ADA compliance*
Up to 25 mm post-install leveling adjustment.
*When display depth is less than 51 mm.
Integrated Storage
Ships with two 15”x10” Lever Lock™ plates with space to add more.
Storage plates can be moved along the mounting rail for best placement of components.
Simplify Service
320 mm of service access.
Open wall plate for easy positioning of power and data sources and in-wall storage.
Allmänt
- Antal displayer
- 1 st.
- Applikation
- Vägg
- Färg
- Svart
- Display orientering
- Landskap
- Videovägg
- Nej
Funktioner
- Höjdjusterbart
- Ja Post-Installation Leveling Roll 25 mm
- Sidojusterbart
- Ja
- Djupjusterbart
- Ja
- Tiltbart
- Ja -10°/+0° in 2.5° increments
- Vridbart/Pan
- Nej
- Roterbart/Pivot
- Nej
- Motoriserat
- Nej
- Låsbart
- Ja
Mått och vikt
- VESA hålbild (mm)
- 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x200, 600x300, 600x400, 700x200, 700x300, 700x400, 800x200, 800x300, 800x400, 900x200, 900x300, 900x400
- Max belastning (per skärm)
- 90,7 kg
Förpackningsinfo
- Förpackningsstorlek
- 1 210 x 559 x 70 mm
- Förpackningsvikt
- 16,40 kg
