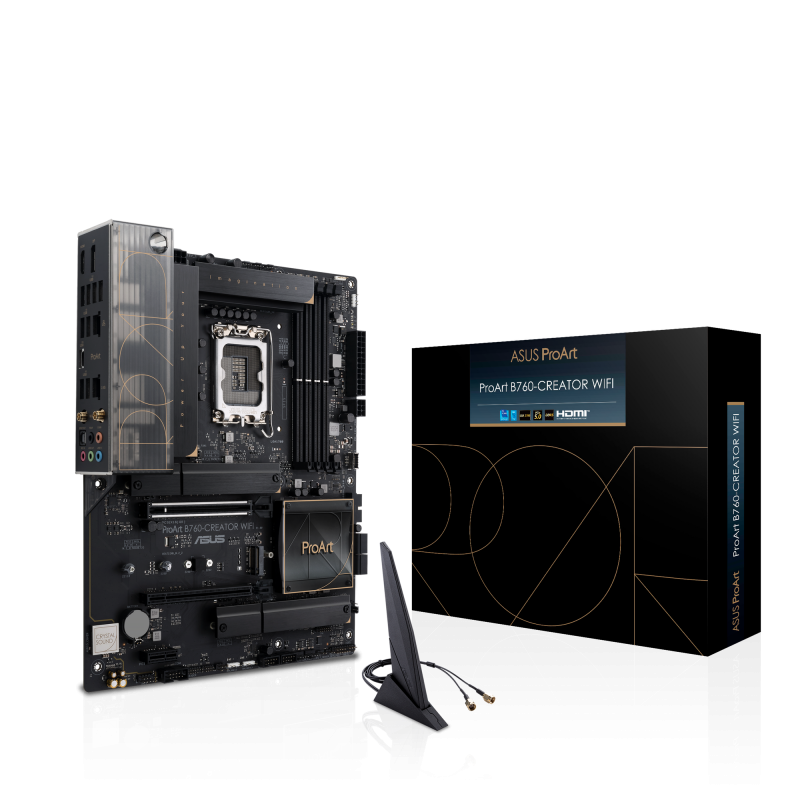

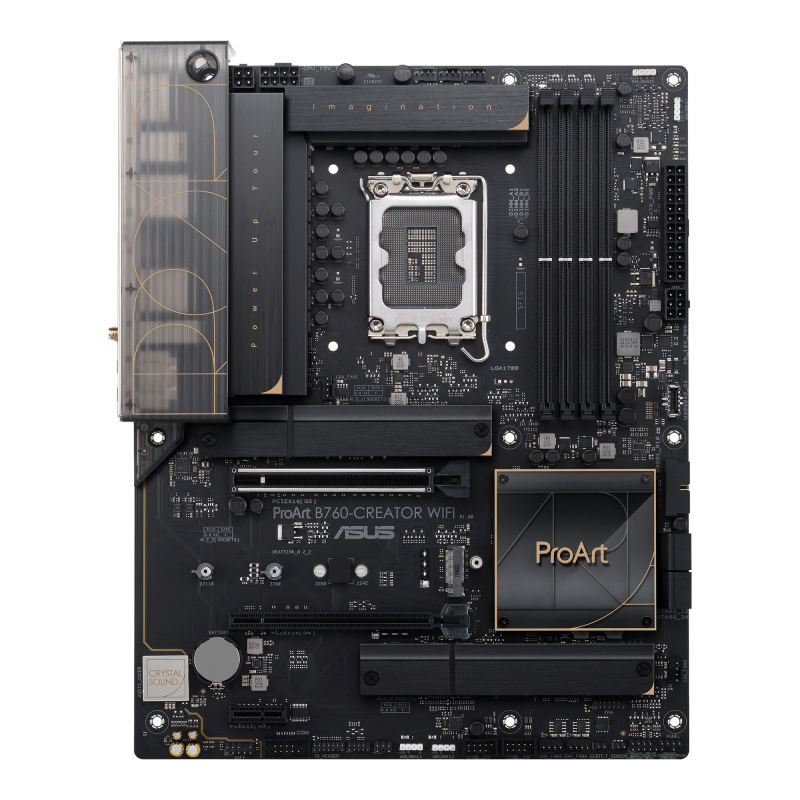

ProArt logoB760-CREATOR WiFi
ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
Comprehensive Connectivity
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator WiFi features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
Allmänt
- Processorsocket
- Intel 1700
- Chipset
- Intel B760
- Formfaktor
- ATX
Minne
- Minnestyp
- DDR5-SDRAM
- Minneskanal
- Dubbla kanaler
- Minnesplatser
- 4 st.
- Max minne
- 192 GB
Lagringsplatser
- Antal M.2-platser
- 3 st.
- M.2 stöd
- M.2, PCI Express 3.0, PCI Express 4.0
- SATA-portar
- 4 st.
Nätverk
- WiFi
- Ja
- WiFi Standard
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Ja
- Bluetooth standard
- 5.2
- LAN hastighet
- 2.5 Gigabit Ethernet, Gigabit Ethernet
Interna headers
- TPM
- Ja
- Thunderbolt
- Ja
- Fläkt-kontakter (4-pin)
- 7 st.
Externa portar
- USB typ-A
- Ja
- USB typ-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- Ljudutgång
- Ja
- Ethernet
- Ja
Förpackningsinfo
- Förpackningsstorlek
- 346 x 279 x 76 mm
- Förpackningsvikt
- 1,93 kg
Förpackningsinfo (4 st)
- Förpackningsstorlek
- 400 x 350 x 350 mm
- Förpackningsvikt
- 8,00 kg
