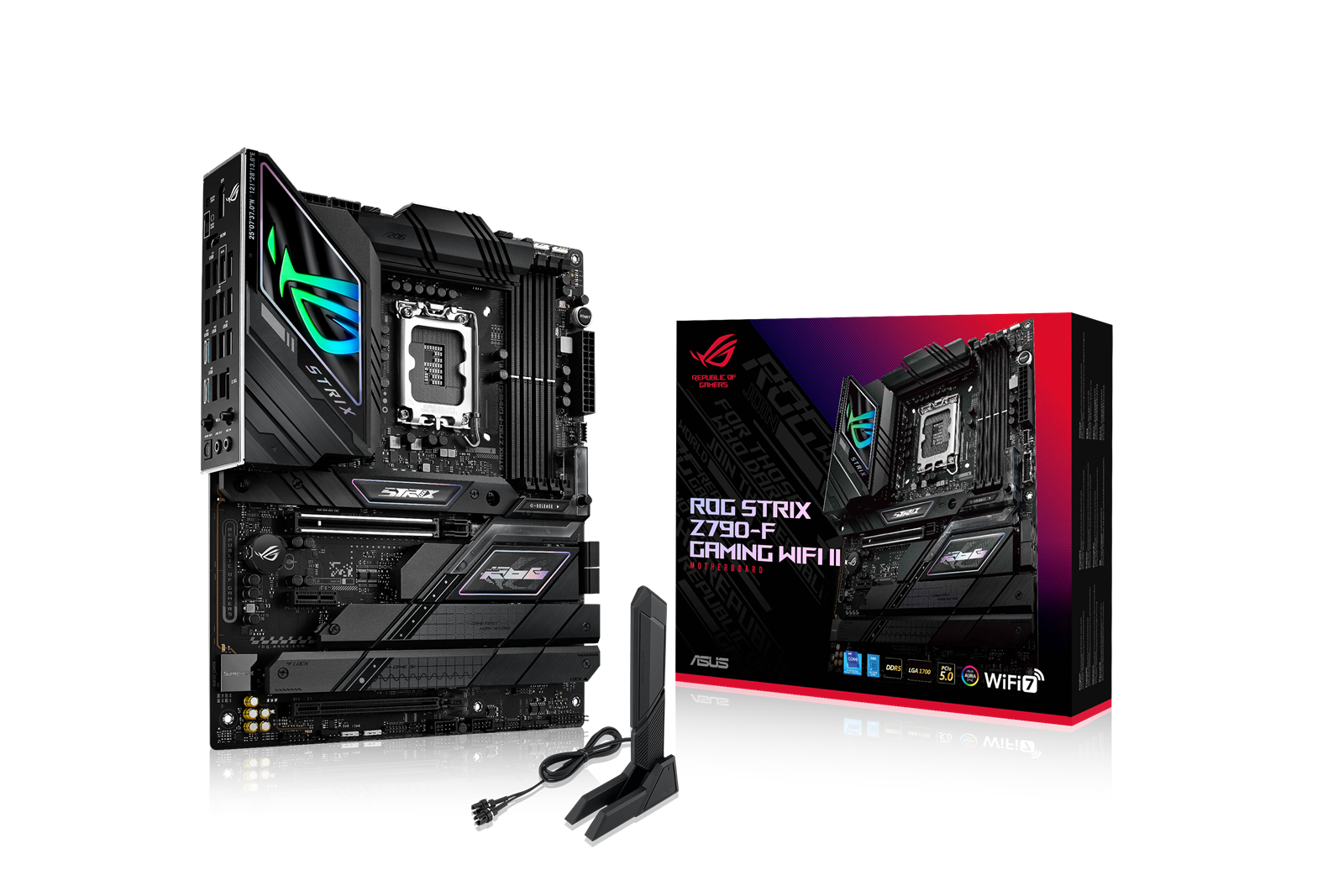

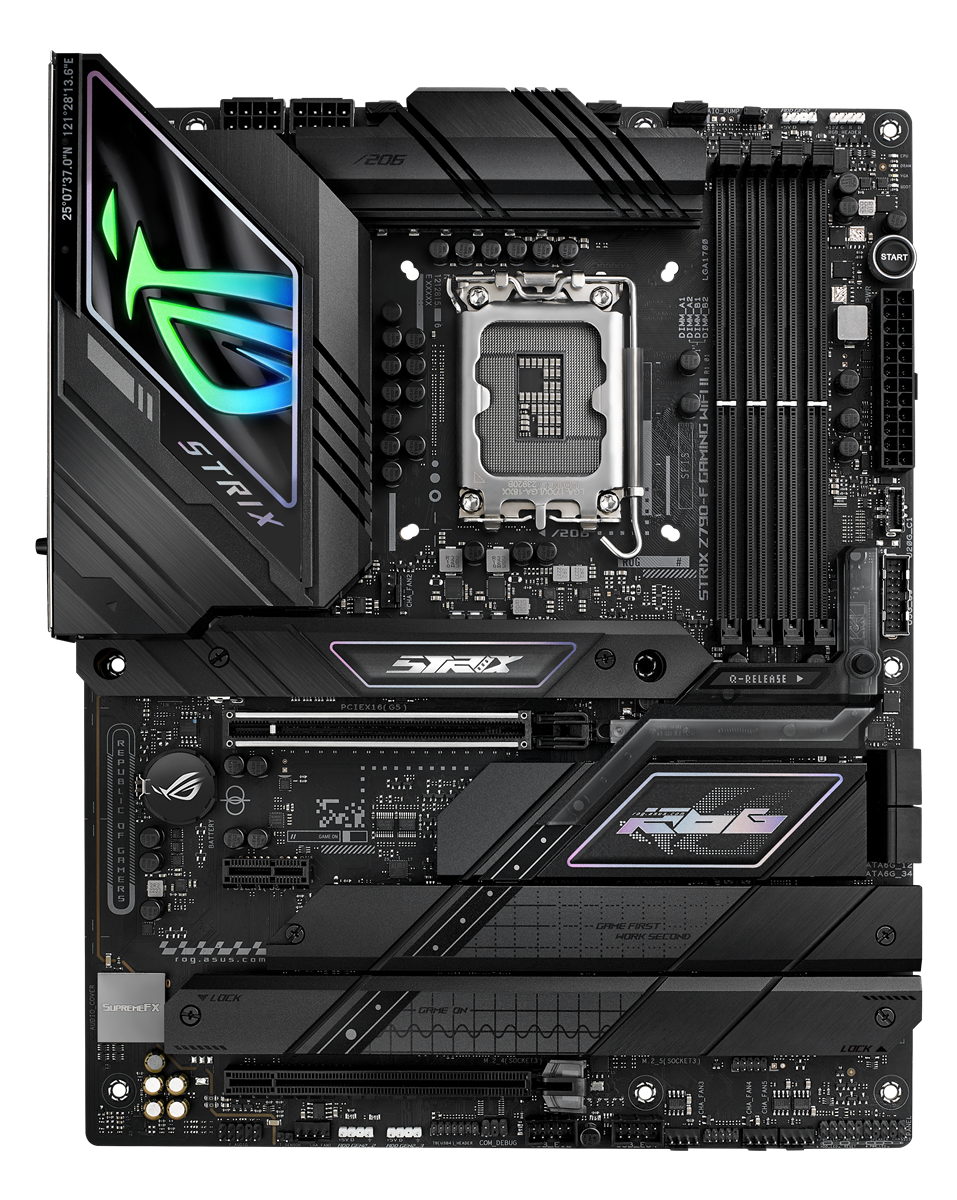

The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-F II at its center.
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
LEADING CONNECTIVITY
The ROG Strix Z790-F II delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
PLAY IN STYLE
Brooding aesthetics and Aura Sync RGB controls allow the ROG Strix Z790-F II to effortlessly flex between blending in and showing off.
Allmänt
- Processorsocket
- Intel 1700
- Chipset
- Z790
- Formfaktor
- ATX
Minne
- Minnestyp
- DDR5
- Minneskanal
- Dual Channel
- Minnesfrekvens (bas)
- 4 800 MHz
- Minnesfrekvens (OC)
- 8 000 MHz
- Minnesplatser
- 4 st.
- Max minne
- 192 GB
Expansionsplatser
- PCIe generation
- PCIe 5.0
- PCIe x16
- 2 st.
- PCIe x1
- 1 st.
Lagringsplatser
- Antal M.2-platser
- 5 st.
- M.2 stöd
- 2242/2260/2280/22110
- M.2 generation
- PCIe 4.0 x4
- M.2 gränssnitt
- PCIE 4.0 x4 and SATA modes
- SATA-portar
- 4 st.
Nätverk
- WiFi
- Ja
- WiFi Standard
- Wi-Fi 7
- Bluetooth
- Ja
- Bluetooth standard
- 5.4
- LAN controller
- Intel®
- LAN hastighet
- 2.5Gb Ethernet
Interna headers
- RGB
- Ja
- Fläkt-kontakter (4-pin)
- 8 st.
Externa portar
- USB typ-A
- Ja
- USB typ-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- Ljudutgång
- Ja
- Ethernet
- Ja
Mått och vikt
- Bredd
- 24,4 mm
- Längd
- 30,5 mm
Förpackningsinfo
- Förpackningsstorlek
- 364 x 279 x 76 mm
- Förpackningsvikt
- 2,26 kg
Förpackningsinfo (4 st)
- Förpackningsstorlek
- 450 x 400 x 400 mm
- Förpackningsvikt
- 10,00 kg
