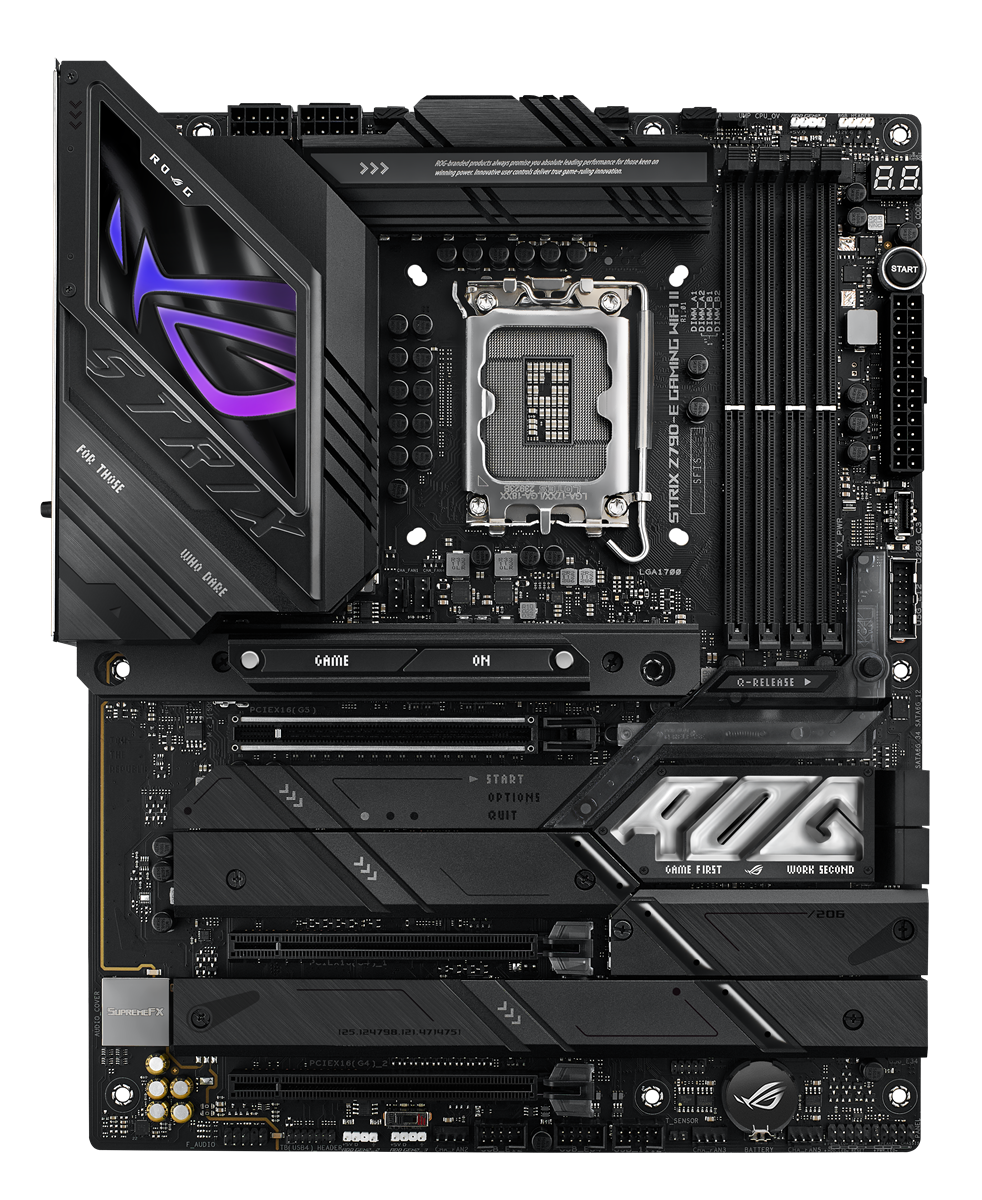

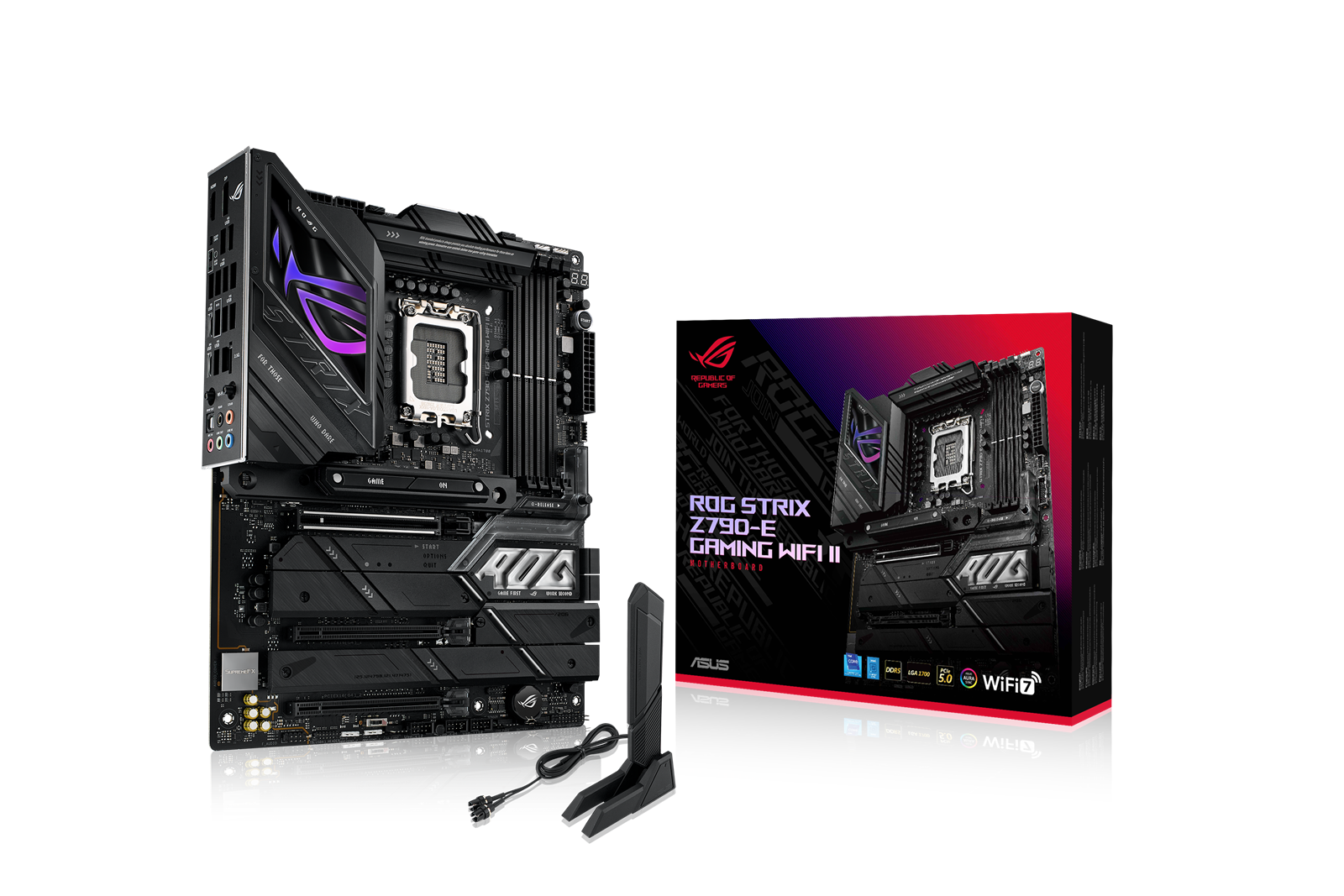

Style and substance come together like never before in the feature-packed ROG Strix Z790-E II. From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-E II at its center.
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
PCIE 5.0
Fully embracing the new standard, the Strix Z790-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
M.2 COMBO-SINK
This M.2 heatsink integrates a direct-contact U-shaped heat pipe to achieve optimal operating temperatures, and it has been upgraded with a larger surface area for even more cooling.
M.2 BACKPLATE
An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
LEADING CONNECTIVITY
Lightning-fast networking keeps the Strix Z790-E II in sync with the outside world for uninterrupted gaming and creation. In addition to breakneck data transfers, connected devices can now top-up quickly thanks to 30W charging support. And SupremeFX audio makes sound clear and punchy to shape truly immersive experiences.
Allmänt
- Processorsocket
- Intel 1700
- Chipset
- Z790
- Formfaktor
- ATX
Minne
- Minnestyp
- DDR5
- Minneskanal
- Dual Channel
- Minnesfrekvens (bas)
- 4 800 MHz
- Minnesfrekvens (OC)
- 8 000 MHz
- Minnesplatser
- 4 st.
- Max minne
- 192 GB
Expansionsplatser
- PCIe generation
- PCIe 5.0
- PCIe x16
- 3 st.
Lagringsplatser
- Antal M.2-platser
- 5 st.
- M.2 stöd
- 2242/2260/2280/22110
- M.2 generation
- PCIe 5.0 x4/PCIe 4.0 x4
- M.2 gränssnitt
- PCIE 4.0 x4 and SATA modes
- SATA-portar
- 4 st.
Nätverk
- WiFi
- Ja
- WiFi Standard
- Wi-Fi 7
- Bluetooth
- Ja
- Bluetooth standard
- 5.4
- LAN controller
- Intel®
- LAN hastighet
- 2.5Gb Ethernet
Interna headers
- RGB
- Ja
- Fläkt-kontakter (4-pin)
- 8 st.
Externa portar
- USB typ-A
- Ja
- USB typ-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- Ljudutgång
- Ja
- Ethernet
- Ja
Mått och vikt
- Bredd
- 24,4 mm
- Längd
- 30,5 mm
Förpackningsinfo
- Förpackningsstorlek
- 365 x 289 x 93 mm
- Förpackningsvikt
- 2,54 kg
Förpackningsinfo (5 st)
- Förpackningsstorlek
- 450 x 500 x 350 mm
- Förpackningsvikt
- 6,50 kg
