Native Microsoft Teams Rooms system for Medium-to-large rooms

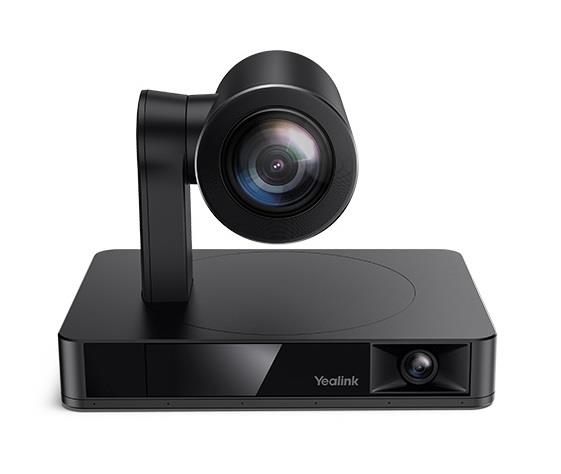

4K Dual-Eye Intelligent Tracking Camera for Medium and Large Rooms with Perfect Display
The Yealink UVC86 is a 4K dual-eye tracking camera for medium and large rooms with a perfect display in everyone and every detail.
With a built-in dual 4K camera and a range of AI-driven features, including Auto Framing, Speaker Tracking and Presenter Tracking, the UVC86 empowers your meeting space by reproducing every moment and detail precisely. Covering a wide field of view of 90° with a mechanical pan, the UVC86 tilt up and down easily via remote control or Yealink camera control plug-in software, bringing more efficient collaboration.
Flexible Audio Solution Fits Particular Needs
Yealink MVC860 brings more flexibility choice for conference room microphone.
Users can choose any Yealink voice devices for Microsoft Teams including Yealink VCM34 or VCM35 microphone, VCM38 ceiling microphone, and the MSpeaker II or audio solution from the mainstream third-party providers including Yamaha Adecia etc. for particular needs.
Multi-mounting Options Simplified Connections
The MCore Pro mini-PC can be set up on the wall or on a conference table in Microsoft Teams room according to particular room layout. Also, in all Yealink MVC room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time of video conference equipments.
MTouch Plus Touch Panel
Yealink MTouch Plus is the specific-designed Yealink third-generation touch panel with a unique appearance and all-in-one features. With an 11.6-inch anti-fingerprint and anti-glare IPS large screen, MTouch Plus provides you with a more comfortable control experience during the meeting. Yealink MTouch Plus supports controlling meetings by multiple touch panels simultaneously* and allowing multiple participants to control the meeting synchronously. It supports screen sharing via third-party* and wireless BYOD features*, and you can join the meeting with only one-time touch and share your screen anytime. With more deployed methods for MTouch Plus, you can mount it on the wall and lay it flat or fix it on the desktop according to your needs through a cleverly designed expansion bracket. Working with the RoomSensor, it can automatically detect participants entering the meeting room and automatically wake up the whole system, allowing you to experience different meeting room features.
Remote Management
Yealink MVC series video conference room solution supports the Yealink Device Management Platform/Cloud Service. You can manage, monitor, configure, update and diagnose all Yealink audio and video devices within the video conference kits and peripherals on this platform remotely.
MCore Pro (v2) Mini-PC
- CPU: Intel 11th-gen Intel i5-1135G7
- RAM: 8 GB Ram
- Storage: 128 GB SSD
- Metal dustproof heat sink
- Support TPM 2.0
- 3x HDMI out, support future upgrades for triple screen and 21:9 displays
- Built-in CEC chip, compatible with TVs certified by the CEC Association
- Built-in EDID module, configurable to the appropriate HDMI output resolution
MTouch Plus Touch panel
- 11.6-inch IPS 1080P screen, more comfortable operation
- Optional PD power supply to power the laptop when projecting (supported)
- With CTP28, multi-session screen control can be realized (H2 support)
- Support WPP30 wireless screen projection + wireless BYOD (Q3 support)
- Support RoomSensor, automatic wake-up covering a larger area and more accurate area. (Supported)
- MTouch Plus supports both table-top fixed and wall-mounted deployments

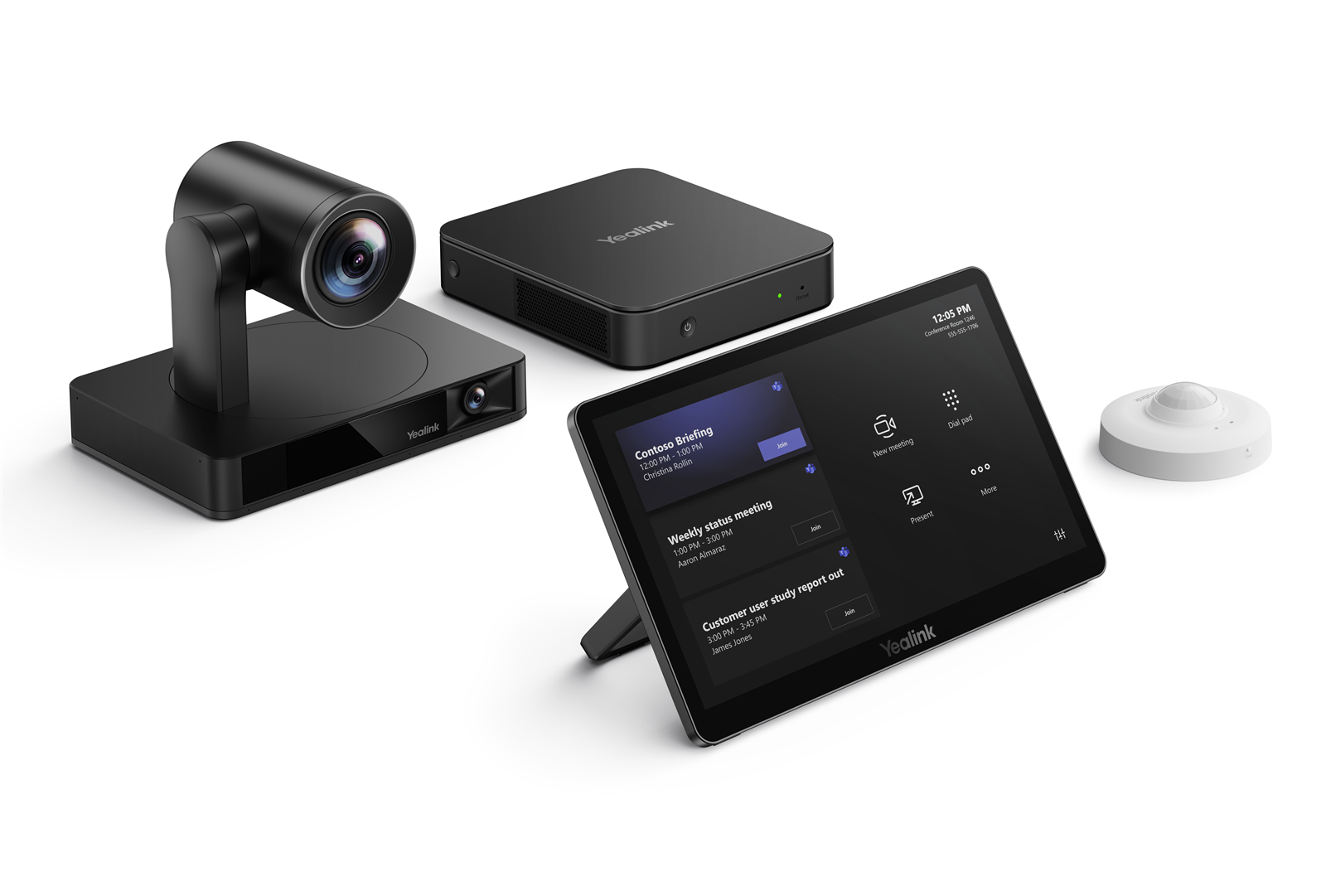

Included in the kit:
- 1x UVC86 12X optical PTZ 4K intelligent camera, VCR20 remote control, power adapter, wallmount bracket and cables
- Yealink MCoreKit-C5 (with MCore Pro mini-PC, MTouch Plus and RoomSensor), power adapter, cables and wall braket
- The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Microsoft Teams Rooms App, as well as Yealink Camera Control Plug-in
- No audio device
- Including 3-year hardware warranty
Allmänt
- Applikation/Certifiering
- Microsoft Teams Room
- Plattform/OS
- Windows
- Rumsstorlek
- Medium rum 4-8p, Stora rum 8p+
Kamera
- Kameratyp
- PTZ kamera 1x UVC86 Black
- Upplösning
- 3840x2160 30Hz
- Framerate
- 30 FPS
- Optisk zoom
- 12 x
- Digital zoom
- 1,7 x
- Synfält (horisontellt)
- 81 ° Horizontal FoV PTZ Camera, 110° Horizontal FoV Panoramic Camera
- Pan-rörelse +/-
- 100 °
- Tiltrörelse ner
- 90 °
- Tilt rörelse upp
- 40 °
- Programmerbara positioner
- Ja 9x Programmable Presets
- Auto framing/tracking
- Ja Auto Framing, Speaker Tracking, Presenter Tracking
Ljudspecifikation
- Inbyggd mikrofon
- Nej
- Extern mikrofon
- Ja Add optional external microphones like VCM34/VCM35/VCM38/CPW90
- Inbyggd högtalare
- Nej
- Extern högtalare
- Ja Add optional speakers like MSpeakerII Soundbar
Kommunikation
- Ethernet
- Ja 10/100/1000M Ethernet Port
- Wi-Fi
- Inbyggt Built-in to MCore Pro Mini-PC; IEEE 802.11 a/b/g/n/ac/ax, Built-in to MTouch Plus Touch Panel (for Yealink wireless presentation device only)
- Bilddelning
- Yes, USB-C with HDMI adapter connected to MTouch Plus Touch Panel. Power delivery available via USB-C
- Trådlös bilddelning
- Yes, via optional WPP30 wireless share pod/dongle, Airplay, Miracast or GoogleCast to MTouch Plus Touch Panel
- Kabelansluten BYOD
- No
- Trådlös BYOD
- Yes, via optional WPP30 wireless share pod/dongle, Connected to MTouch Plus Touch Panel
Anslutningar
- Bildanslutning in
- USB-C With HDMI adapter to MTouch Plus Touch Panel
- Bildanslutning ut
- HDMI x3 with CEC support, with built-in EDID adapter. HDMI 1 supports 5K 21:9 resolution
- USB anslutning
- USB-A x4 on MCore Pro Mini-PC
- USB standard
- 3.0
Energi
- Strömförsörjning
- Mini-PC: Input: 19V, 4.74A
Mått och vikt
- Bredd
- 210 mm UVC86 Camera
- Djup
- 155,6 mm UVC86 Camera
- Höjd
- 157,6 mm UVC86 Camera
- Nettovikt
- 3,27 kg UVC86 Camera
Övrigt
- Färg
- Svart
- Medföljande Tillbehör
- See product text above
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 610 x 408 x 288 mm
- Förpackningsvikt
- 8,46 kg
