Native Microsoft Teams Rooms system for Huddle and Small rooms
Impress Everyone in Every Meeting
Yealink UVC34 enables you to impress everyone in video meetings no matter where work happens. UVC34 integrates with a 4K AI-driven camera, microphone arrays, and speaker into a single device, bringing stunning video and audio experiences for small and huddle rooms. Moreover, the all-in-one and plug-and-play design make it portable and simple to set up, no matter where you're working.
- Ultra HD, 4K camera with 1/2,8 inch CMOS
- 120 degrees super-wide angle lens
- Electronic lens cap
- Auto-framing and AI face enhancement
- Built-in Wi-Fi, remote device management
- Applcable to most popular video conferencing platforms
Multi-mounting Options Simplified Connections

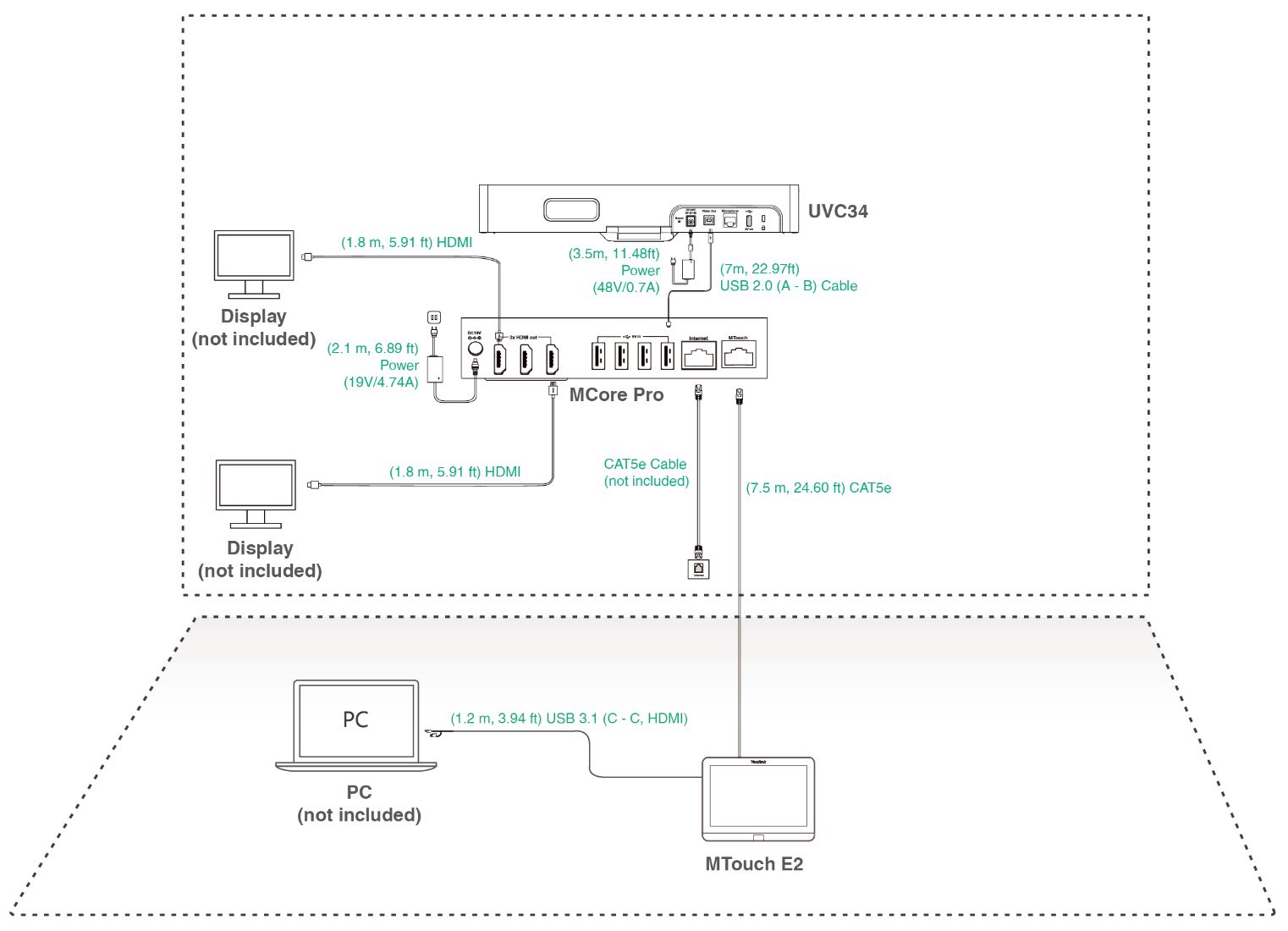

The MCore Pro mini-PC can be set up on the wall or on a conference table in Microsoft Teams room according to particular room layout. Also, in all Yealink MVC room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time of video conference equipments.
MTouch E2 Touch Panel
MTouch E2 is Yealink’s third-generation conference touch panel. It is an enhancement of MTouch II. Designed with the idea of multi-function all-in-one, the MTouch E2 touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch E2 has a built-in Human Motion Sensor that the conference system can automatically wake up and you can immediately start the conference.
Remote Management
Yealink MVC series video conference room solution supports the Yealink Device Management Platform/Cloud Service. You can manage, monitor, configure, update and diagnose all Yealink audio and video devices within the video conference kits and peripherals on this platform remotely.
MCore Pro (v2) Mini-PC
- CPU: Intel 11th-gen Intel i5-1135G7
- RAM: 8 GB Ram
- Storage: 128 GB SSD
- Metal dustproof heat sink
- Support TPM 2.0
- 3x HDMI out, support future upgrades for triple screen and 21:9 displays
- Built-in CEC chip, compatible with TVs certified by the CEC Association
- Built-in EDID module, configurable to the appropriate HDMI output resolution
MTouch E2 Touch panel
- 8-inch IPS screen
- 1280 x 800 resolution
- 10-point capacitive touch screen
- 3.5mm headset jack
- Human Motion Sensor
- Angle adjustable bracket (28° - 50°)
- 1080P/30FPS FHD for sharing
- Support wired and wireless content sharing
- Built-in Wi-Fi AP for Yealink wireless presentation device
- HDMI/USB-C video input
Included in the kit:
- 1x UVC34 all-in-one USB video bar, power adapter and cables;
- Yealink MCoreKit-C4 (with MCore Pro mini-PC and MTouch E2), power adapter, cables and wall braket;
- The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Microsoft Teams Rooms App, as well as Yealink Camera Control Plug-in;
- Including 3-year hardware warranty.
Allmänt
- Applikation/Certifiering
- Microsoft Teams Room
- Plattform/OS
- Windows
- Rumsstorlek
- Fokusrum 1-2p, Små rum 3-6p
Kamera
- Kameratyp
- Videobar 1x UVC34 included
- Upplösning
- 3840x2160
- Framerate
- 30 FPS
- Optisk zoom
- 0 x
- Digital zoom
- 5 x E-PTZ
- Synfält (horisontellt)
- 120 ° 133° diagonal
- Programmerbara positioner
- Ja 9 programmable presets
- Auto framing/tracking
- Ja
Ljudspecifikation
- Inbyggd mikrofon
- Ja Built-in 8+1 mic array (stereo mic)
- Räckvidd ljudupptagning
- 4,5 m
- Inbyggd högtalare
- Ja 1x 5W, Frequency response 100-20.000Hz
- Extern högtalare
- Nej
Kommunikation
- Ethernet
- Ja 10/100/1000M Ethernet Port
- Wi-Fi
- Inbyggt Built-in to MCore Pro Mini-PC; IEEE 802.11 a/b/g/n/ac/ax, Built-in to MTouch E2 Touch Panel (for Yealink wireless presentation device only)
- Bilddelning
- Yes, USB-C with HDMI adapter connected to MTouch E2 Touch Panel
- Trådlös bilddelning
- Yes, via optional WPP30 wireless share pod/dongle connected to MTouch E2 Touch Panel
- Kabelansluten BYOD
- No
- Trådlös BYOD
- No
Anslutningar
- Bildanslutning in
- USB-C With HDMI adapter to MTouch E2 Touch Panel
- Bildanslutning ut
- HDMI x3 with CEC support, with built-in EDID adapter. HDMI 1 supports 5K 21:9 resolution
- USB anslutning
- USB-A x4 on MCore Pro Mini-PC
- USB standard
- 3.0
Energi
- Strömförsörjning
- Mini-PC: Input: 19V, 4.74A, UVC34: External Power Supply, AV 100-240V in - DC48V/0,7A out (included)
Mått och vikt
- Bredd
- 380 mm UVC34
- Djup
- 55 mm UVC34
- Höjd
- 55 mm UVC34
- Nettovikt
- 1,28 kg UVC34
Övrigt
- Färg
- Svart
- Medföljande Tillbehör
- See product text above
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 700 x 371 x 315 mm
- Förpackningsvikt
- 7,96 kg
