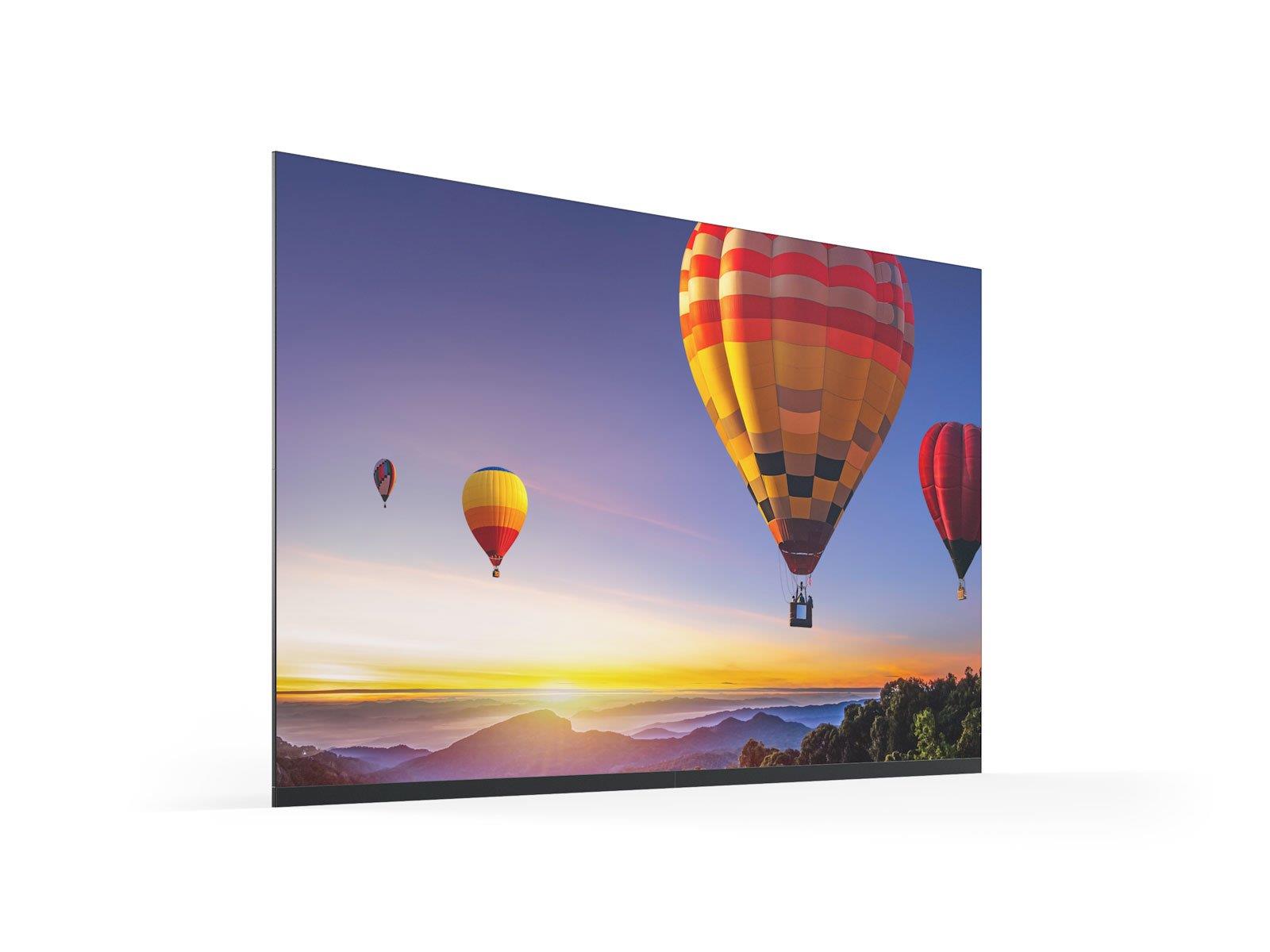

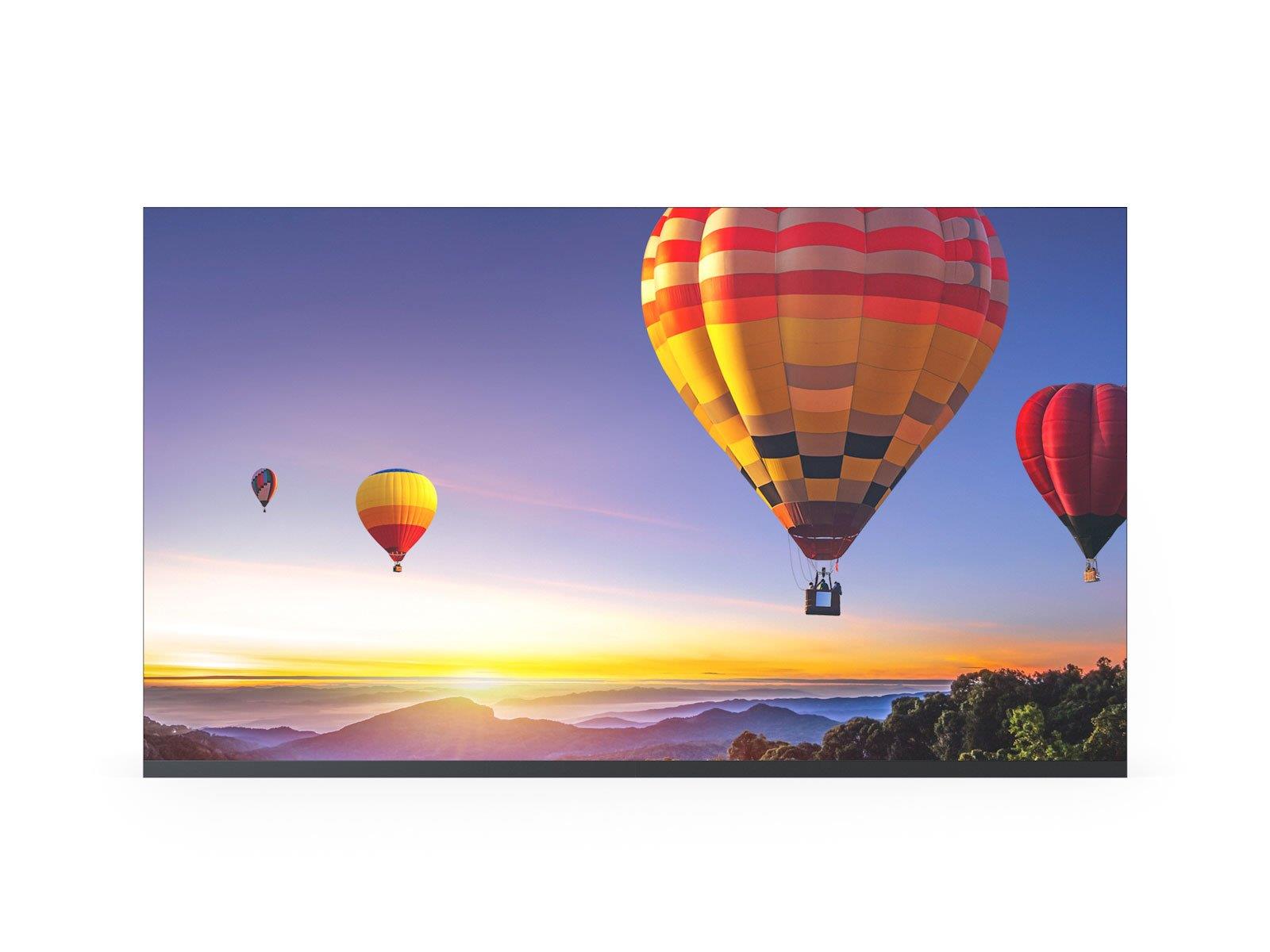

Large Image Presentation, Small Budget Preservation
Bringing all the advantages of fine-pitch LED to more cost-conscious applications in corporate meeting rooms and digital signage, the E series lacks nothing in high impact content delivery. The pre-bundled solution includes everything you need to implement large surface visualisation without hindrance from bezels, with superb brightness and high contrast which gets noticed even in areas of high ambient light.
Designed for quick and easy set-up, the product is light weight and super slim for unobtrusive integration either free-standing or wall mounted. Front serviceable, all components are easily accessed for maintenance.
As you would expect from a quality manufacturer, there is no compromise to reliability, longevity and safety in offering this low-cost solution. Consistent with all LED products from Sharp/NEC, the chassis is of metal construction.
- Low-profile integration – the super slim and light weight modules align with perfection to create a large digital canvas which integrates unobtrusively into any environment.
- Front serviceable modules – with front access to the LED modules, maintenance is easy.
- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
- Care-free installation – with bundled solutions that deliver all you need to get your LED video wall up and running.
Display
- Bilddiagonal
- 217 "
- Upplösning Display
- 3840x2160
- Pixel pitch
- 1,2 mm
- Diodtyp
- 3-in-1 SMD (Black)
- Uppdateringsfrekvens
- 3 840 Hz
- Ljusstyrka (Max)
- 600 Nits
- Betraktningsvinkel
- 170 ° Hor/160° Vert
LED Modul/Kabinett
- Antal kabinett/display (BxH)
- 8x8
- Antal moduler/kabinett (BxH)
- 4x1
- Upplösning Kabinett
- 480x270 pixels
- Upplösning Modul
- 120x270 Pixel
Anslutningar
- Bildanslutning in
- 3G-SDI x1
- Bildanslutning in
- DVI-D x1
- Bildanslutning in
- HDMI x1
- Ethernet
- Ja
Energi
- Strömförsörjning
- 100 V AC to 240 V AC, 50 Hz/60 Hz
- Förbrukning Max/m2
- 617 W
- Förbrukning Max tot.
- 8 000 W
Mått och vikt
- Bredd
- 4 812 mm
- Höjd
- 2 806 mm
- Djup
- 50 mm
- Nettovikt
- 342,8 kg
Övrigt
- Service access
- Front service
- IP Klassning
- IP20
- Min temp vid drift
- -20 Celsius
- Max temp vid drift
- 40 Celsius
- Medföljande Tillbehör
- 1x LED Controller; LED Modules (64 Cabinets, 256 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8)
- Garanti
- 2 år
Förpackningsinfo
- Förpackningsstorlek
- 1 800 x 800 x 1 400 mm
- Förpackningsvikt
- 198,50 kg
