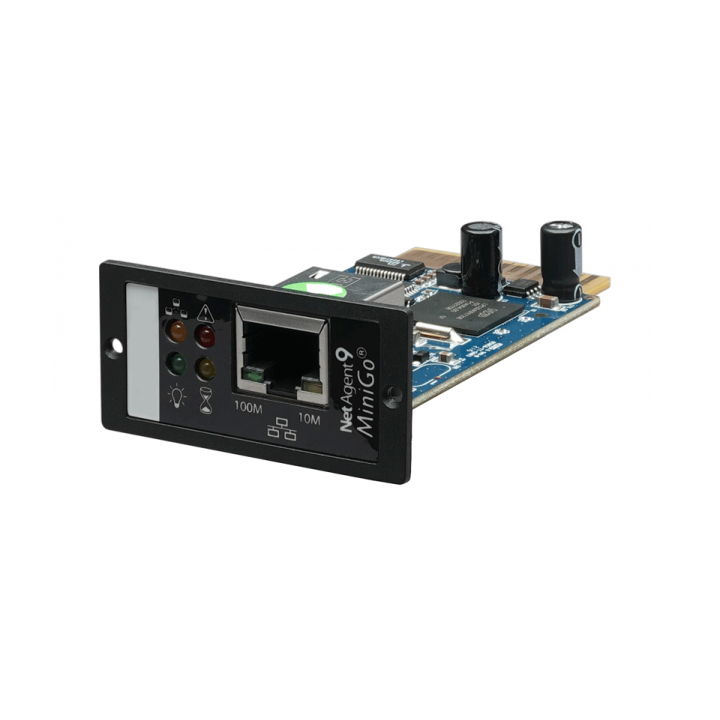

Internal SNMP card for use with all PowerPure RT's

SNMP DL801 mini card designed for remote monitoring and control of UPS via a local network or the Internet. Provides real-time information about the status of the mains and the UPS. Thanks to integrated http server, access to card can carried out via any web browser.

Connection

• Support protocols: http, IPv.4, SNMP v.1/v.2с, TCP/IP, telnet, SMTP
• Connector RJ45 Ethernet
• Modbus protocol support over TCP/IP
• User authentication via password, IP address
• Available model with ability to connect environmental sensors

Control

• Access to card interface through any web browser
• Support UPS MIB, RFC1628, PPC MIB
• System clock frequency 266 MHz
• Ability to remotely start reboot and self-testing the SIPB series UPS

Installation and operation

• Installation in UPS internal mini slot
• Alinement schedule for running commands
• Maintaining event logs and parameters of mains and UPS
• Sending informational messages by email or trap-notifications
• Ability to remotely upgrade firmware
