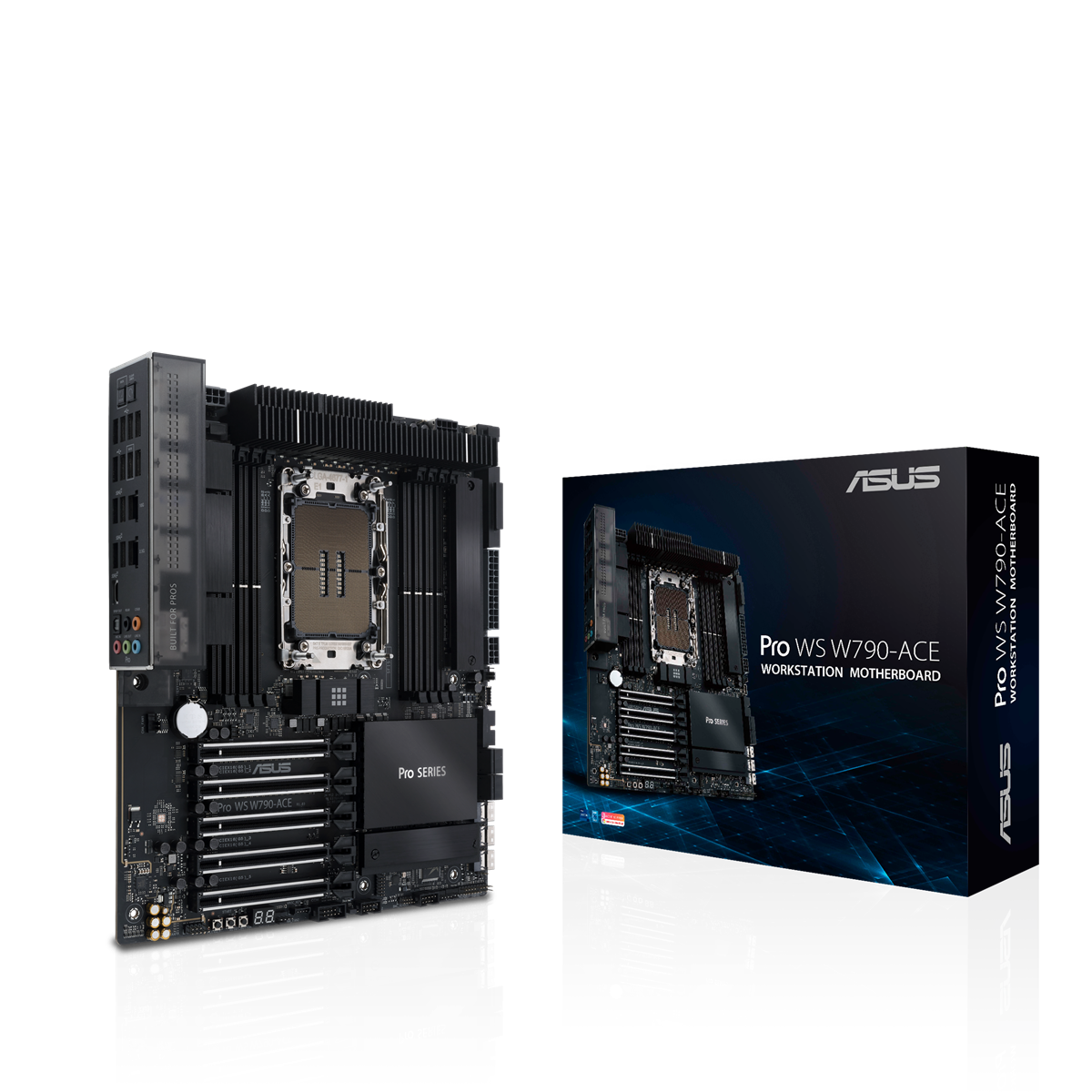

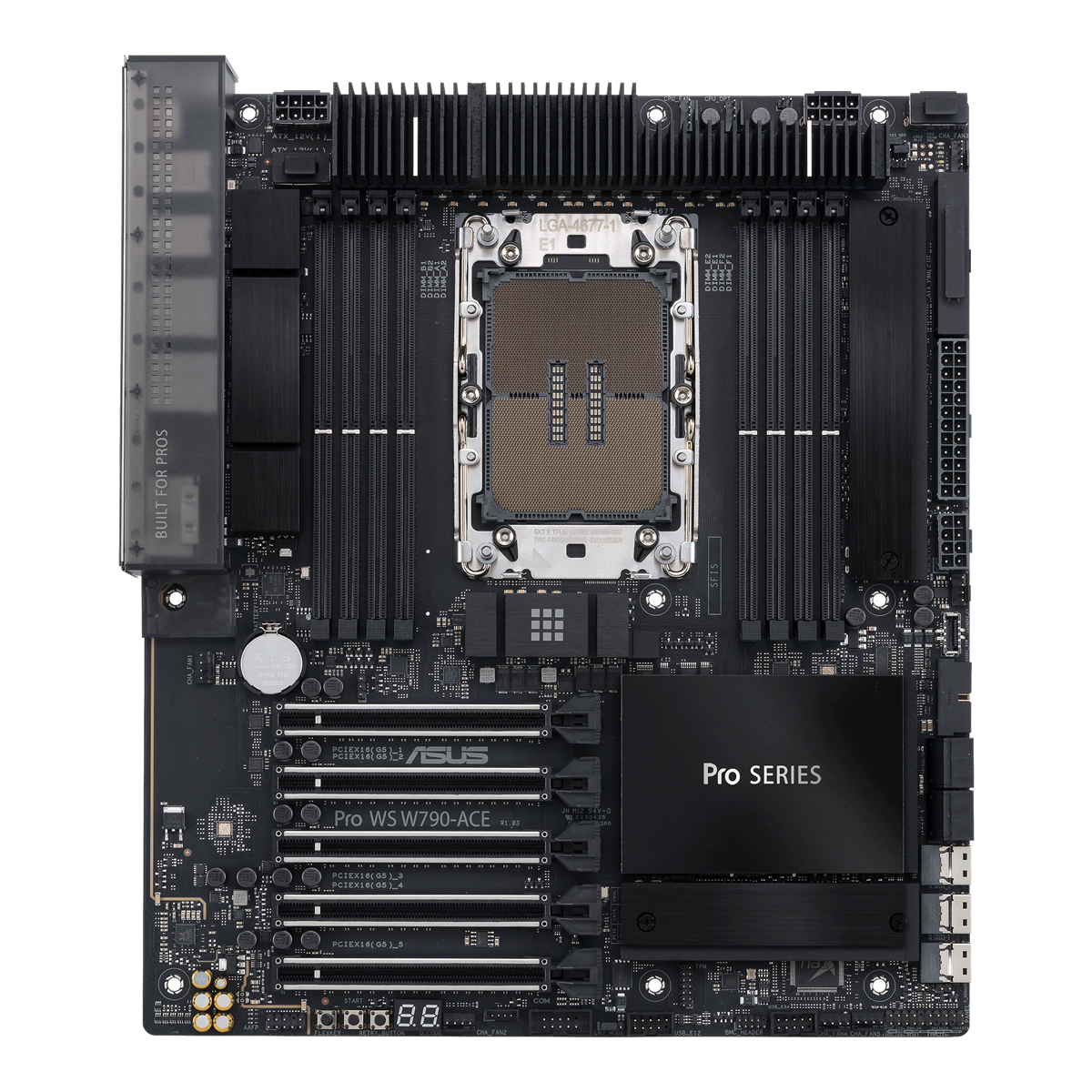

Intel® W790 (LGA 4677) CEB workstation motherboard, PCIe 5.0 x16, M.2, 10G and 2.5G LAN, Server-grade Remote Management, 12+1+1 power stages, front and Rear USB 3.2 Gen 2x2 Type-C®

  • Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
  • CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
  • Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C® and 3 SlimSAS
  • Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software – ASUS Control Center Express
  • Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
  • Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.

ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Multi-GPU support
The Pro WS W790-ACE features five PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling, simulation and rendering applications.



Allmänt

Processorsocket
Intel 4677
Chipset
W790
Formfaktor
CEB

Minne

Minnestyp
DDR5
Minneskanal
Quad Channel
Minnesfrekvens (bas)
4 800 MHz
Minnesfrekvens (OC)
6 800 MHz
Minnesplatser
8 st.
Max minne
2 048 GB

Expansionsplatser

PCIe generation
PCIe 5.0
PCIe x16
5 st.

Lagringsplatser

Antal M.2-platser
2 st.
M.2 stöd
2242/2260/2280/22110
M.2 generation
PCIe 4.0 x4
M.2 gränssnitt
PCIe
SATA-portar
4 st.

Nätverk

LAN controller
Intel® & Marvell
LAN hastighet
10 Gb/s, 2.5 Gb/s

Interna headers

Fläkt-kontakter (4-pin)
7 st.

Externa portar

USB typ-A
Ja
USB typ-C
Ja
Ljudutgång
Ja
Ethernet
Ja

Förpackningsinfo

Förpackningsstorlek
377 x 312 x 119 mm
Förpackningsvikt
3,13 kg

Förpackningsinfo (4 st)

Förpackningsstorlek
350 x 320 x 450 mm
Förpackningsvikt
12,00 kg
