Windows OPS for MeetingBoard series

Modular Compute Solution for Interactive Whiteboards Collaboration

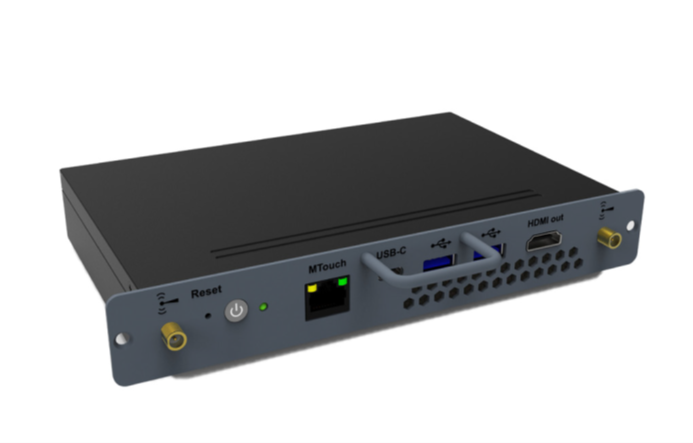

Yealink MCore-OPS is a modular compute solution specially designed for interactive whiteboards. Intel's 11th generation Core
i5 processor brings you more powerful computing performance and more efficient graphics processing power, allowing you to
install and run more applications at the same time without lag; MCore-OPS supports TPM 2.0 to protect your data security;
in addition, MCore-OPS supports CEC to automatically wake up the screen. No more external equipment is required, and the
sophisticated structural design will greatly facilitate your installation and deployment.

• INTEL Core™ 11:t gen i5 quad-core CPU
• 8GB Memory, 128GB SSD Storage
• Windows 10 IoT Enterpirse OS, license included
• Including 2-year hardware warranty
• Support TPM2.0
• Support CEC



Allmänt

Operativsystem
Windows 10 IoT Enterpirse

Processor

CPU Modell
Core i5 11th generation (Intel i5-1135G7)
Antal kärnor
4 st.

Minne

Internminne
8 GB 2 x 4GB

Grafikkort

GPU Modell
Intel Iris® X Graphics 1.30 GHz
GPU Hastighet
1,3 GHz

Lagring

HDD Typ
SSD
HDD Storlek
128 GB

Anslutningar

HDMI
Ja 1x out
DisplayPort
Nej
USB typ-A
Ja 2x USB-A 3.0
USB typ-C
Ja 1x USB 3.0

Kommunikation

Ethernet
Ja 1x MTouch port (RJ-45)
WiFi
Ja Wi-Fi 6 (802.11ax)
Bluetooth
Ja 5.2:AX201

Mått och vikt

Bredd
180 mm
Djup
119 mm
Höjd
30 mm
Nettovikt
0,7 kg

Övrigt

Medföljande Tillbehör
MCore-OPS, 2 x antenna, 2 x screw, 1 x screwdriver, 1 x Quick Start Guide
Garanti
2 år

Förpackningsinfo

Förpackningsstorlek
272 x 220 x 73 mm
Förpackningsvikt
921 g
