Complete USB 3.0 conferencing for small to medium conference spaces. Use the ConferenceSHOT AV camera and speaker with two CeilingMIC microphones.
Key Features:
• HD PTZ Camera with 10x zoom, 74° HFOV
• Two CeilingMIC microphones with 360° coverage and echo cancellation
• Powered 20-watt speaker with robust audio
• Administration and control via browser-based user interface

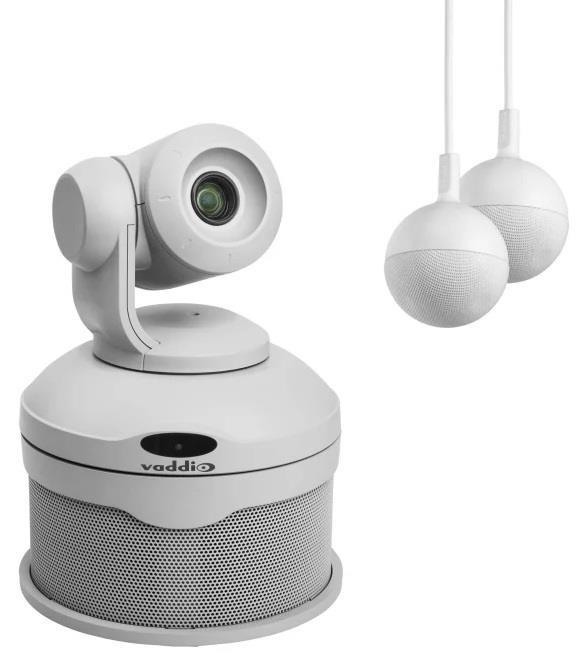

Ideal for small to medium-sized videoconferencing rooms, the ConferenceSHOT AV CeilingMIC 2 Bundle includes one ConferenceSHOT AV camera, one ConferenceSHOT AV Speaker and two white CeilingMIC microphones.
Powerful
ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and external speaker to the camera. The CeilingMIC 2 Bundle is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.
Simple
ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC - just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.
Enterprise-Class
ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
This USB-based solution makes it easy for your organization to collaborate using Skype for Business, WebEx, Zoom, BlueJeans, Google Hangouts, Vidyo and other leading UC services.
- ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.
In the box:
- ConferenceSHOT AV camera (black or white)
- ConferenceSHOT AV speaker (black or white)
- 2x CeilingMIC microphones (white)
- 2x silicone split strain relief boots (white)
- ConferenceSHOT AV Quick-Start Guide
- CeilingMIC Installation Guide
- PoE+ Midspan Power Injector with AC cord set(s)
- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander with audio controls
- Speaker mounting rail with gasket and mounting screws
- 2x CeilingMIC interface boxes
- 2x cable clamp grommets
- 4x ceiling trim ring plates (white) with mounting screws
- 2x ceiling tile braces
- 16.5cm Power/Audio cable with phoenix-style connectors
- 1.8m USB 3.0 cable, type A to B
- 2x 0.9m cat-5 cables, white
- 3m cat-5 cable, black
- 4-position phoenix-style connector
Allmänt
- Applikation/Certifiering
- USB BYOD
- Rumsstorlek
- Medium rum 4-8p, Stora rum 8p+
Kamera
- Kameratyp
- PTZ kamera
- Upplösning
- 1920x1080
- Framerate
- 60 FPS
- Optisk zoom
- 10 x
- Synfält (horisontellt)
- 74 °
- Pan-rörelse +/-
- 165 °
- Tiltrörelse ner
- 30 °
- Tilt rörelse upp
- 90 °
- Programmerbara positioner
- Ja 16 + Custom Home Position
- Auto framing/tracking
- Nej
Ljudspecifikation
- Inbyggd mikrofon
- Nej
- Extern mikrofon
- Ja 2x EasyMIC Ceiling microphones
- Räckvidd ljudupptagning
- 3,7 m per mic
- Inbyggd högtalare
- Nej
- Extern högtalare
- Ja Högtalare ingår

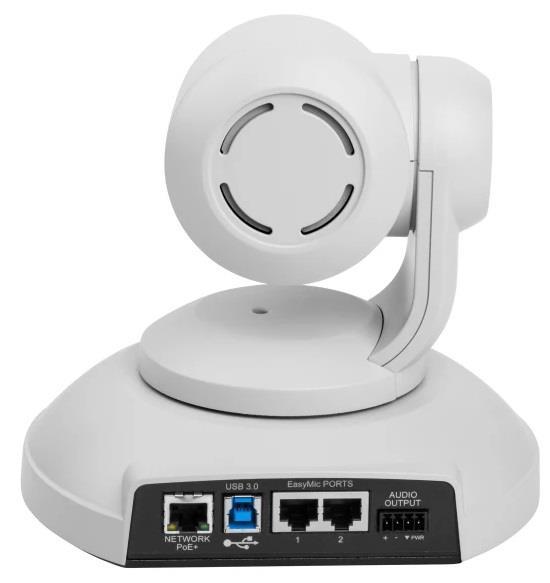

Anslutningar
- Bildanslutning ut
- IP stream (RJ-45), USB-B
- Ljudanslutning in
- EasyMic Port (RJ-45) x2
- Ljudanslutning ut
- Euroblock lågnivå Balanced
- Ljudanslutning ut
- USB-B
- USB standard
- 3.0
Energi
- Strömförsörjning
- PoE+
Mått och vikt
- Bredd
- 155 mm
- Djup
- 145 mm
- Höjd
- 163 mm
- Nettovikt
- 1,36 kg
Övrigt
- Färg
- Vit
- Medföljande Tillbehör
- See product text above
- Garanti
- 2 år
Förpackningsinfo
- Förpackningsstorlek
- 330 x 690 x 710 mm
- Förpackningsvikt
- 11,20 kg
