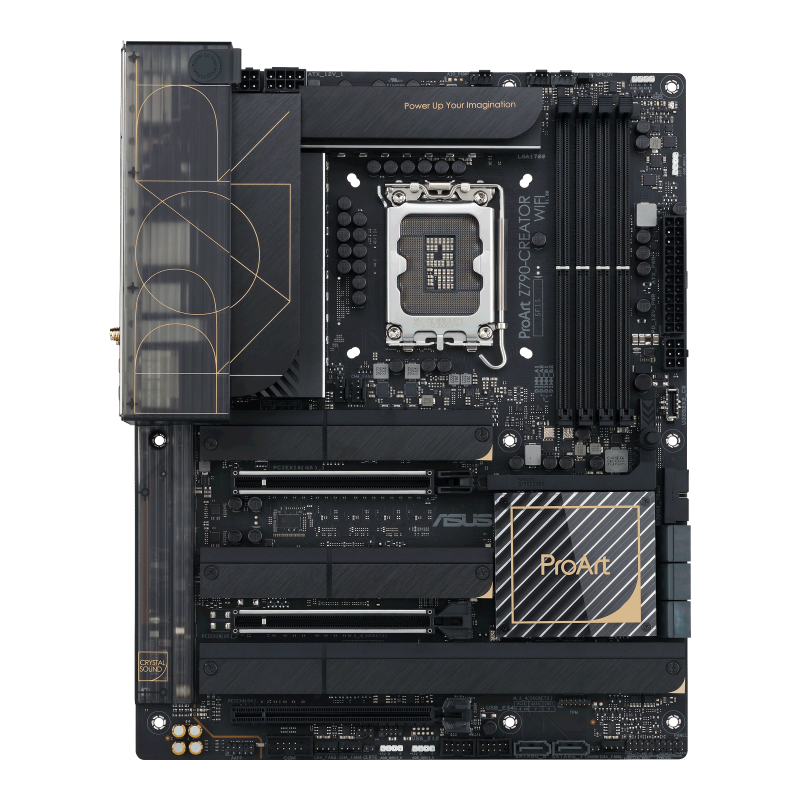

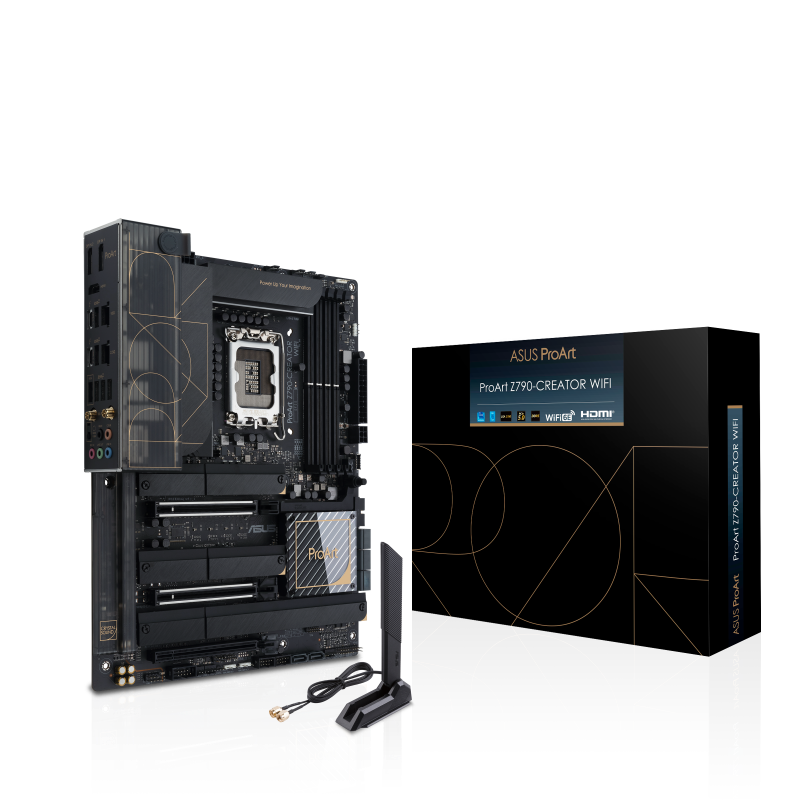

The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel® Core™ processors with 16+1 teamed power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including Thunderbolt™ 4 (USB4® compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.

It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches.

All you need for maximum productivity
Thunderbolt™ 4 ports (USB4® compliant)
Get immersed in your creations with two Thunderbolt™ 4 ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the Thunderbolt 4 port.

Ultrafast networking
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

PCIe 5.0 expansion slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

Ultrafast M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

Quick charging your USB devices
USB 3.2 Gen 2x2 Type-C® front-panel
connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

The core of your powerful workstation

Robust power design
16+1 teamed power stages
Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest 13th & 12th Gen Intel Core processors.

Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool II power connector
Built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Chokes & capacitors
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Performance boost

AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

Memory

Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.​

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

Self-adaptive fan tuning
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Everything you need to optimize workflow

Two-Way AI Noise Cancelation
As working from home becomes the new normal, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so your calls and video conferences with partners and clients are crystal clear.

Customize your personal settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.

Security control and remote management
Advanced security management functions from ASUS Control Center Express protect the systems and confidential data in your creative studio.

USB port management
Enable or disable the USB port or set it to Read-Only to prevent data leaks.

Software blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor on/off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.

Trusted stability
ProArt Z790-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.



Allmänt

Processorsocket
Intel 1700
Chipset
Z790
Formfaktor
ATX

Minne

Minnestyp
DDR5
Minneskanal
Dual-channel
Minnesfrekvens (bas)
4 800 MHz
Minnesfrekvens (OC)
7 200 MHz
Minnesplatser
4 st.
Max minne
128 GB

Expansionsplatser

PCIe generation
PCIe 5.0
PCIe x16
3 st.

Lagringsplatser

Antal M.2-platser
4 st.
M.2 stöd
2242/2260/2280/22110
M.2 generation
PCIe 4.0 x4
M.2 gränssnitt
PCIE 4.0 x4 and SATA modes
SATA-portar
8 st.

Nätverk

WiFi
Ja
WiFi Standard
Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth standard
5.3
LAN controller
Intel® & Marvell
LAN hastighet
2.5Gb Ethernet

Interna headers

Fläkt-kontakter (4-pin)
8 st.

Externa portar

USB typ-A
Ja
USB typ-C
Ja
HDMI
Ja
DisplayPort
Ja
Ljudutgång
Ja
Ethernet
Ja

Förpackningsinfo

Förpackningsstorlek
352 x 279 x 81 mm
Förpackningsvikt
2,39 kg

Förpackningsinfo (5 st)

Förpackningsstorlek
450 x 400 x 450 mm
Förpackningsvikt
12,00 kg
