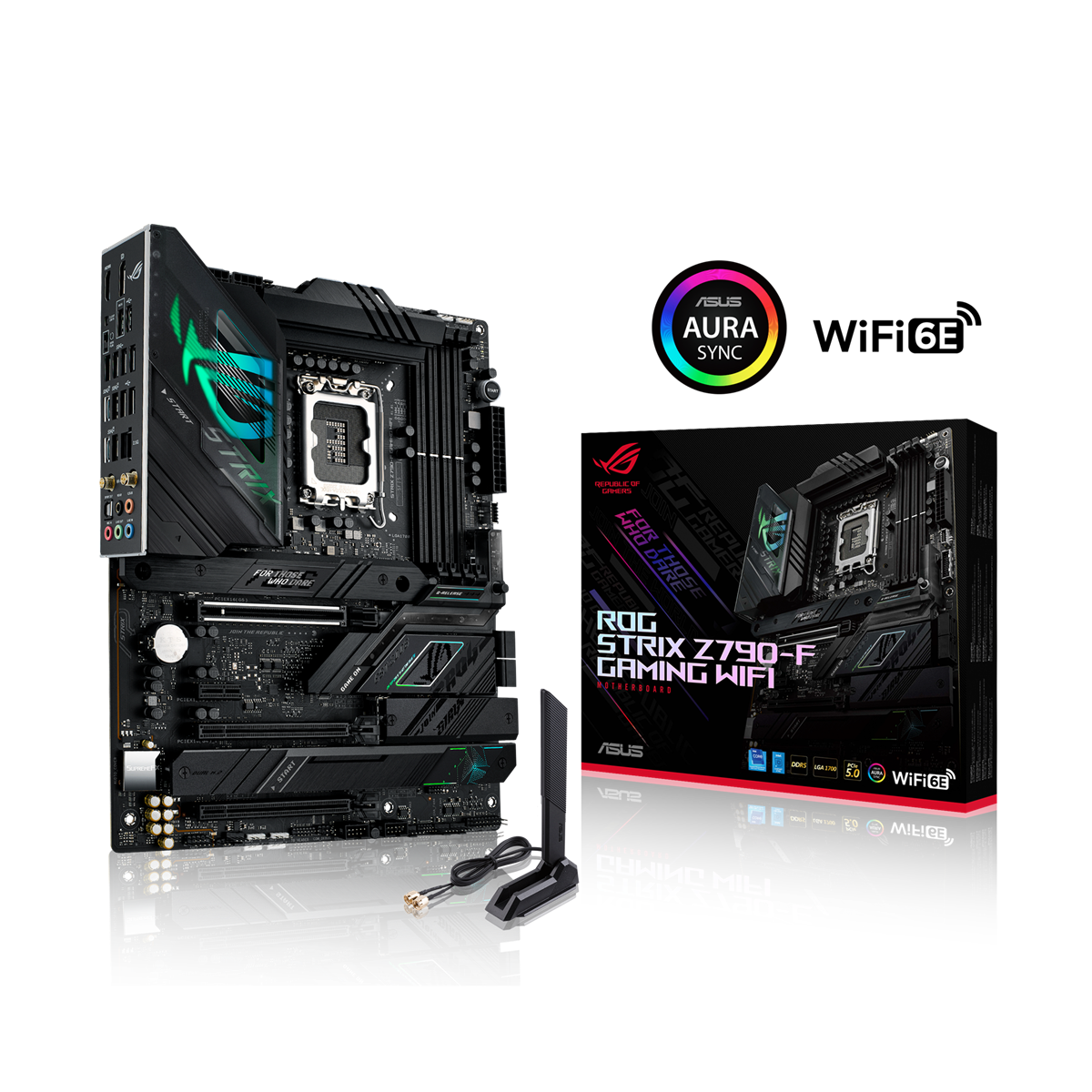

Beneath its dark heatsinks and brooding aesthetic, the ROG Strix Z790-F packs a power solution and overclocking features that push Intel® 13th Gen Core processors to new heights. Flush with advanced thermal management for quieter builds, along with support for DDR5, PCIe 5.0, and WiFi 6E, this well-equipped powerhouse delivers massive bandwidth for everything.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
BIOS FLASHBACK™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-F at its center.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
PCIE 5.0
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
POWER ARCHITECTURE
16 + 1 power stages rated to 90A each deliver ample current in order to drive 13th and 12th Gen Intel® Core™ Processors through any workload with ease.
DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
VRM HEATSINK ARRAY
Covering the power solution are two thick heatsinks connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance Intel 13th Gen processors.
LEADING CONNECTIVITY
The ROG Strix Z790-F delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
USB 3.2 GEN 2X2
The Strix Z790-F comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.
SUPREMEFX AUDIO
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
PLAY IN STYLE
Brooding aesthetics and Aura Sync RGB controls allow the ROG Strix Z790-F to effortlessly flex between blending in and showing off.
Allmänt
- Processorsocket
- Intel 1700
- Chipset
- Z790
- Formfaktor
- ATX
Minne
- Minnestyp
- DDR5
- Minneskanal
- Dual Channel
- Minnesfrekvens (bas)
- 4 800 MHz
- Minnesfrekvens (OC)
- 7 800 MHz
- Minnesplatser
- 4 st.
- Max minne
- 128 GB
Expansionsplatser
- PCIe generation
- PCIe 5.0
- PCIe x16
- 3 st.
- PCIe x1
- 1 st.
Lagringsplatser
- Antal M.2-platser
- 4 st.
- M.2 stöd
- 2242/2260/2280/22110
- M.2 generation
- PCIe 4.0 x4
- M.2 gränssnitt
- PCIE 4.0 x4 and SATA modes
- SATA-portar
- 4 st.
Nätverk
- WiFi
- Ja
- WiFi Standard
- Wi-Fi 6E
- Bluetooth
- Ja
- Bluetooth standard
- 5.3
- LAN controller
- Intel®
- LAN hastighet
- 2.5Gb Ethernet
Interna headers
- Fläkt-kontakter (4-pin)
- 8 st.
Externa portar
- USB typ-A
- Ja
- USB typ-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- Ljudutgång
- Ja
- Ethernet
- Ja
Mått och vikt
- Bredd
- 244 mm
- Längd
- 305 mm
Förpackningsinfo
- Förpackningsstorlek
- 345 x 274 x 76 mm
- Förpackningsvikt
- 2,19 kg
Förpackningsinfo (4 st)
- Förpackningsstorlek
- 400 x 400 x 450 mm
- Förpackningsvikt
- 10,00 kg
