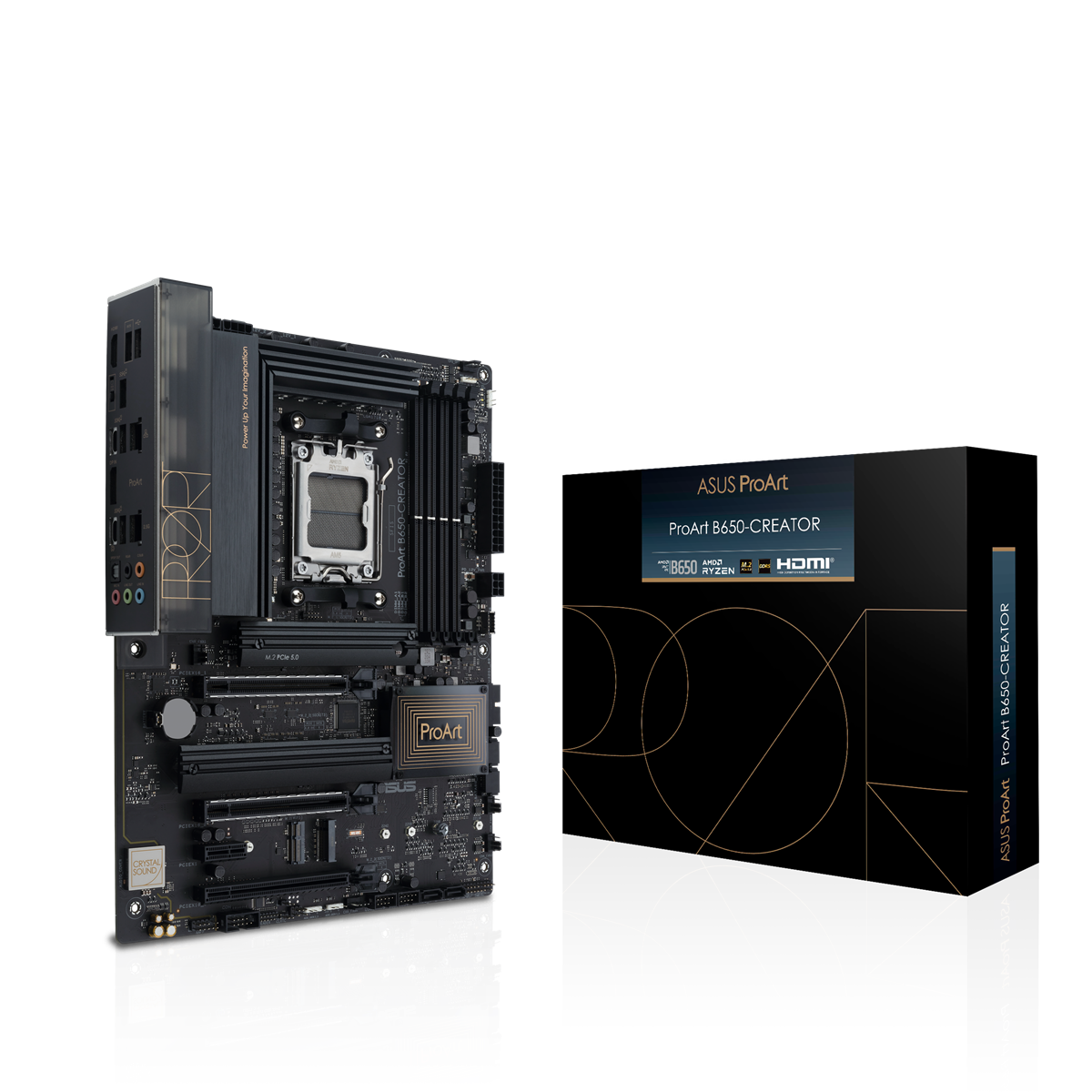

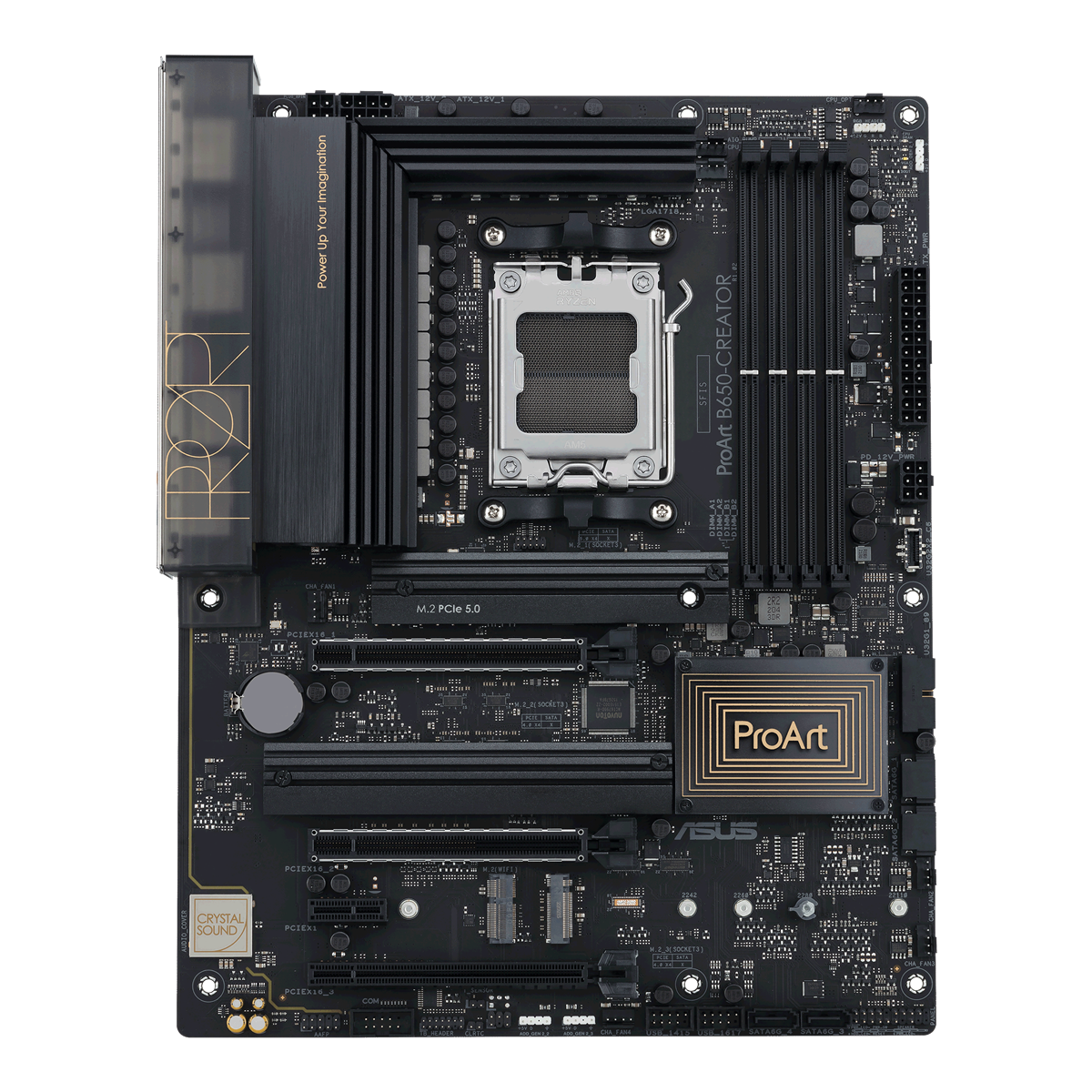

ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.
Comprehensive Connectivity - USB-C DisplayPort (DP Alt Mode)
This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.
*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.
USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Multi-card support
The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.
Dual Ethernet
2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 5.0 M.2 Storage
The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.
Robust power design - 12+2 teamed power stages
Rated for 60 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.
DDR5 Strength
For those who want to fly past stock DDR5 speeds, the ProArt B650-Creator is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Allmänt
- Processorsocket
- AMD AM5
- Chipset
- B650
- Formfaktor
- ATX
Minne
- Minnestyp
- DDR5
- Minneskanal
- Dual Channel
- Minnesfrekvens (bas)
- 4 800 MHz
- Minnesfrekvens (OC)
- 6 400 MHz
- Minnesplatser
- 4 st.
- Max minne
- 128 GB
Expansionsplatser
- PCIe generation
- PCIe 5.0
- PCIe x16
- 3 st.
- PCIe x1
- 1 st.
Lagringsplatser
- Antal M.2-platser
- 3 st.
- M.2 stöd
- 2242/2260/2280/22110
- M.2 generation
- PCIe 5.0 x4/PCIe 4.0 x4
- M.2 gränssnitt
- PCIE modes
- SATA-portar
- 4 st.
Nätverk
- LAN controller
- Realtek
- LAN hastighet
- 2.5Gb & 1Gb Ethernet
Interna headers
- Thunderbolt
- Ja
- RGB
- Ja
- Fläkt-kontakter (4-pin)
- 7 st.
Externa portar
- USB typ-A
- Ja
- USB typ-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- Ljudutgång
- Ja
- Ethernet
- Ja
Mått och vikt
- Bredd
- 244 mm
- Längd
- 305 mm
Förpackningsinfo
- Förpackningsstorlek
- 286 x 342 x 76 mm
- Förpackningsvikt
- 1,96 kg
Förpackningsinfo (4 st)
- Förpackningsstorlek
- 400 x 400 x 350 mm
- Förpackningsvikt
- 8,00 kg
