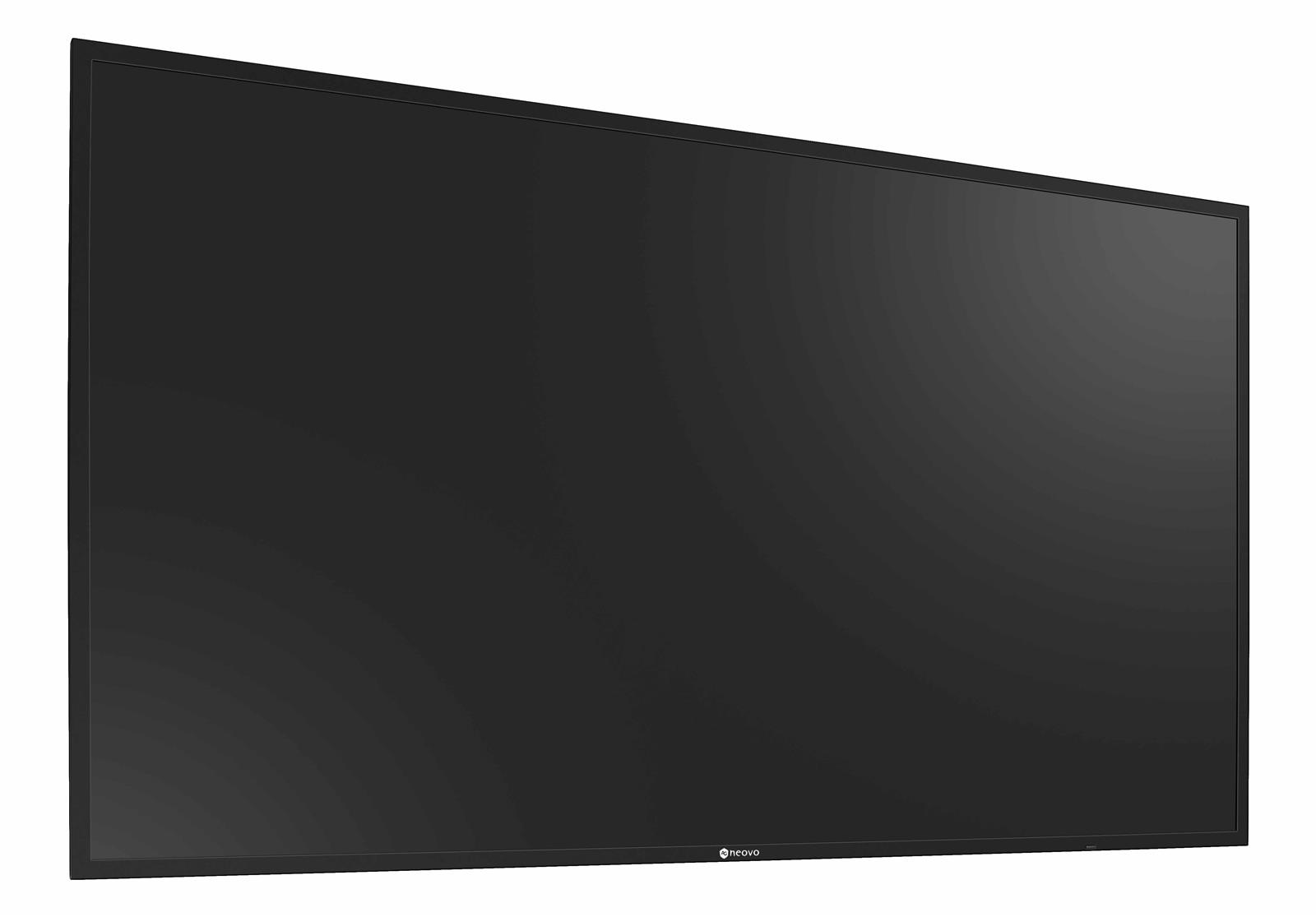

The SMQ-4301 is a durable 43-inch 4K surveillance display. The display technology is future-proof and compatible with both analogue and digital surveillance systems. It provides 24/7 nonstop operation in the control rooms. The display supports up to 8MP camera image quality and can present crisp video footage, especially when zooming in the images for further detail checking. This level of image quality promotes more efficient and accurate video surveillance analysis. The SMQ-4301 features AG Neovo patented Anti-Burn-in™ Technology, preventing LCD burn-in during a surveillance operation. The technology also includes PID command & Ctrl software for easy management of multiple displays in security environments.
• 4K UHD 3840 x 2160 resolution
• Anti-Burn-inTM technology prevents image ghosting
• Image Enhancer: 3D Comb Filter / Deinterlace / Noise Reduction
• Versatile connectivity: HDMI, DVI, VGA, Composite (BNC)
• BNC passive loop-through output port
• RS232/LAN Control - provides compatibility with control systems
• Black-level adjustment for presenting more details in dark images
• Selectable gamma curves optimise different kinds of images
• CCTV picture mode for maximum image detail in low light footage
• Optional blue or black screen when no input signal is detected
• Lockable control keys to prevent tampering in public environments
• Commercial-grade panel for high reliability and long product lifetime
• 24/7 Operation with a rugged metal housing design
- Strömförsörjning
- AC 100-240V, 50/60 Hz Internal
- Bildanslutning in
- BNC x1 (Composite)
- Bildanslutning in
- DVI-D x1
- Bildanslutning in
- HDMI x1 (vers. 2.0)
- Skyddsglas
- Nej
- Bildanslutning in
- VGA x1
- Bildanslutning ut
- BNC x1 (Composite)
- Videovägg
- Nej
- Produkttyp
- Surveillance Display with BNC
- Förbrukning Stand-by
- 0,5 W
- Bilddiagonal
- 43 "
- Ljudanslutning in
- 3,5mm tele
- Wi-Fi
- Nej
- Utomhusbruk
- Nej
- Ljudanslutning ut
- 3,5mm tele, Coaxial Digital
- Trådlös bilddelning
- Nej
- TV Tuner
- Nej
- Haze värde (%)
- 1
- Porträtt
- Nej
Panelspecifikation
- Upplösning
- 3840x2160
- Ljusstyrka
- 350 Nits
- Drifttid
- 24/7
Anslutningar
- LAN
- Ja
Ergonomi
- VESA gränssnitt
- 400x200
Mått och vikt
- Bredd
- 969,9 mm
- Djup
- 84,6 mm
- Höjd
- 558,3 mm
- Vikt
- 9 kg
Övrigt
- Inbyggd högtalare
- Ja 2x 5W
- Medföljande Tillbehör
- Power Cord, HDMI Cable, Remote Control, Batteries, Quick Start Guide
- Förbrukning Max
- 75 W On Mode
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 1 070 x 153 x 663 mm
- Förpackningsvikt
- 11,70 kg
