Easy to move, easy to reach.

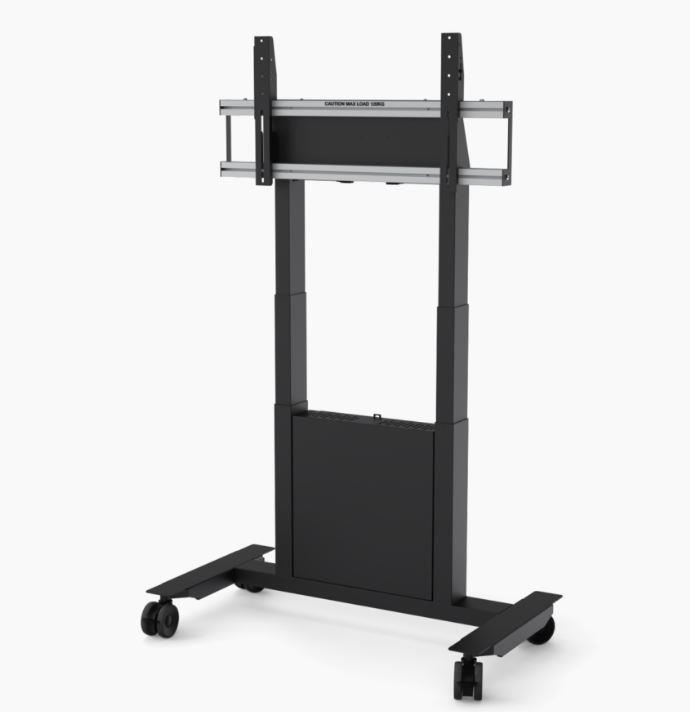

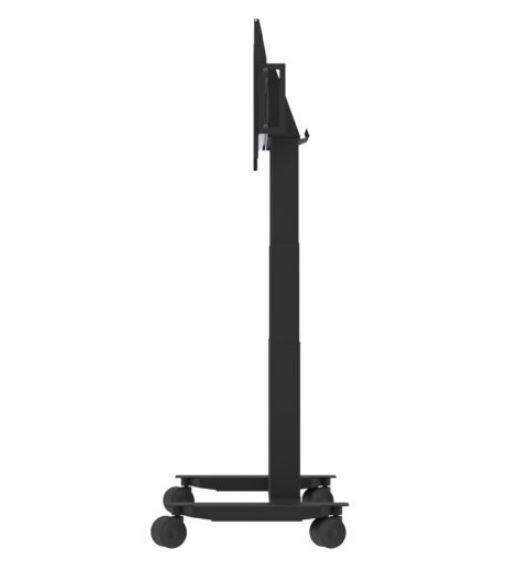

Func Mobile Motorized is easy to adjust for different needs. The very stable design is perfect for large displays and touch displays. The pre-assembled motorized height adjustment ensures that the user can work ergonomically, whether very tall, short, standing up or sitting down.

Thanks to the lockable wheels, it is easy to move the unit between rooms. In other words, perfect for places where the display will be the center of attention for people with different needs.

A storage box is included, for e.g. mini PC or codec, easily accessed from the front. The box can be locked with a padlock (not supplied).



Allmänt

Antal displayer
1 st.
Display orientering
Landskap
Applikation
Golv
Färg
Svart
Videovägg
Nej

Funktioner

Pelartyp
Justerbar
Höjdjusterbart
Ja Stroke length 660 mm
Tiltbart
Nej
Roterbart/Pivot
Nej
Mobilt
Ja
Motoriserat
Ja
Låsbart
Ja

Mått och vikt

VESA hålbild (mm)
200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400
Pelarlängd min
800 mm
Pelarlängd max
1 460 mm
Max belastning (per skärm)
120 kg

Övrigt

Garanti
2 år

Förpackningsinfo

Förpackningsstorlek
1 196 x 773 x 205 mm
Förpackningsvikt
47,00 kg

Tillbehör

Artikelnummer 2213137
Artikelnummer 2321486
Artikelnummer 2322451
