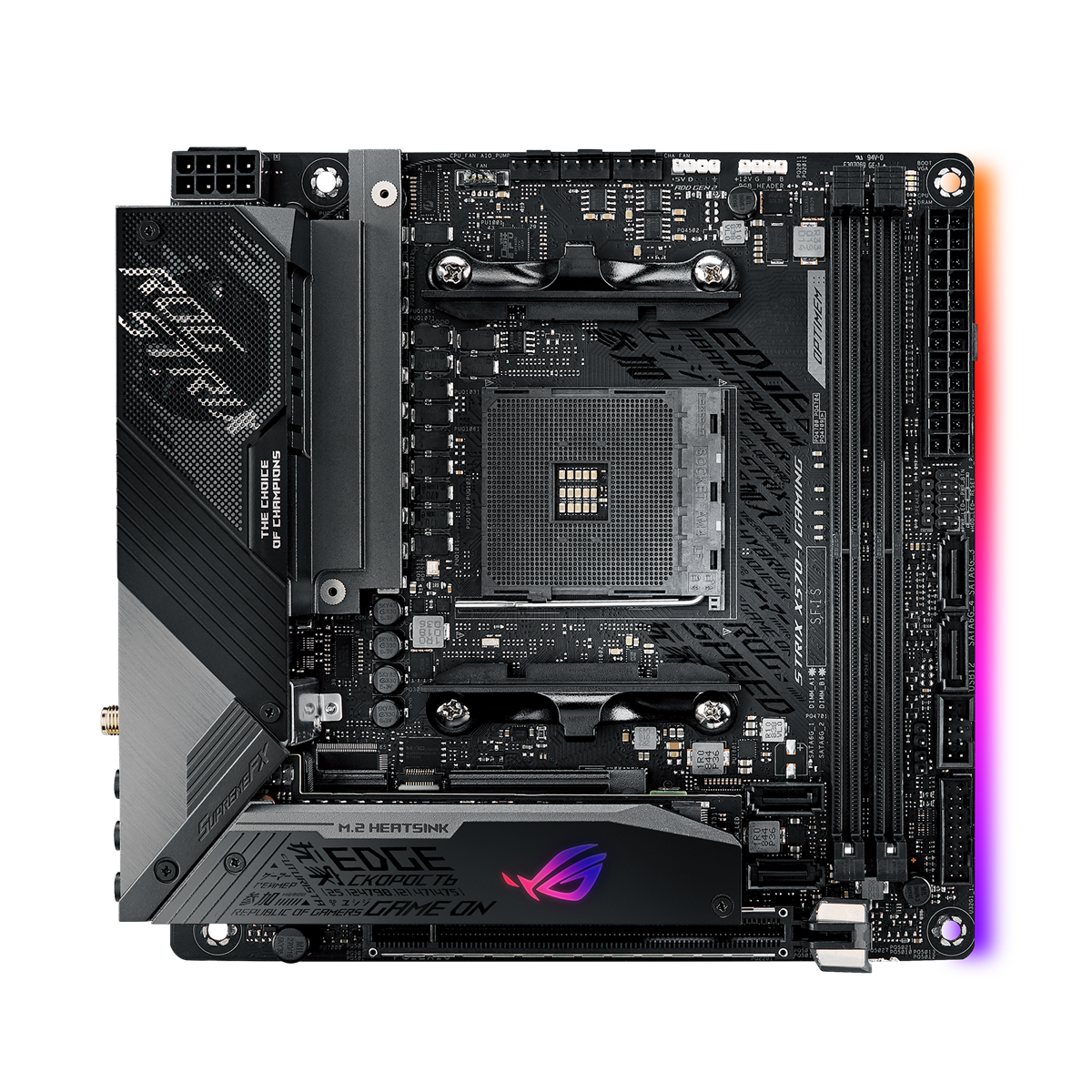

ROG Strix X570-I Gaming rises above the rest to deliver incredible power and undeniable style for your small form factor gaming build. With support for the latest AMD Ryzen processors, ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down. Coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ultrafast next-generation wireless networking and PCIe 4.0 connectivity, ROG Strix X570-I Gaming is a compact gaming powerhouse.
Designed to be Chilled
Effective cooling is extremely important, so ROG Strix X570-I Gaming provides comprehensive cooling features that enable higher performance at lower temperatures.
SOLID HARDWARE SPECS
With upgraded power delivery to fuel high-core-count Ryzen CPUs, plus faster storage and networking, ROG Strix X570-I Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
DESIGN & CUSTOMIZATION
The arrival of ROG Strix X570-I Gaming brings a brand-new design that features unique mesh and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-I Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.
TUNE YOUR RIG YOU WANT
The ROG Strix X570-I Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
THE POWER OF AMD
AMD X570 chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors.
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
Allmänt
- Processorsocket
- AMD AM4
- Chipset
- AMD X570
- Formfaktor
- Mini-ITX
Minne
- Minnestyp
- DDR4-SDRAM
- Minneskanal
- Dual Channel
- Minnesfrekvens (bas)
- 2 133 MHz
- Minnesfrekvens (OC)
- 5 100 MHz
- Minnesplatser
- 2 st.
- Max minne
- 64 GB
Expansionsplatser
- PCIe generation
- PCIe 4.0
- PCIe x16
- 1 st.
Lagringsplatser
- Antal M.2-platser
- 2 st.
- M.2 stöd
- 2242/2260/2280
- M.2 generation
- PCIe 4.0/ 3.0 x4
- M.2 gränssnitt
- PCIE 4.0 x4 and SATA modes
- SATA-portar
- 4 st.
Nätverk
- WiFi
- Ja
- WiFi Standard
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth
- Ja
- LAN controller
- Intel® I211-AT
Externa portar
- USB typ-A
- Ja
- USB typ-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- Ljudutgång
- Ja
- Ethernet
- Ja
Mått och vikt
- Bredd
- 170 mm
- Längd
- 170 mm
- Vikt
- 1 230 g
Förpackningsinfo
- Förpackningsstorlek
- 233 x 192 x 98 mm
- Förpackningsvikt
- 1,29 kg
Förpackningsinfo (6 st)
- Förpackningsstorlek
- 400 x 300 x 500 mm
- Förpackningsvikt
- 8,50 kg
