Slim & Robust Design with Outstanding Visibility
With a slim & robust design, XE4F series can be easily installed to meet the customer’s needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer’s attention even under strong and direct sunlight.
Key Features:
• Brightness (Typ.) : 4,000 nits
• Bezel : 38.4 mm (T/B), 26.0 mm (L/R)

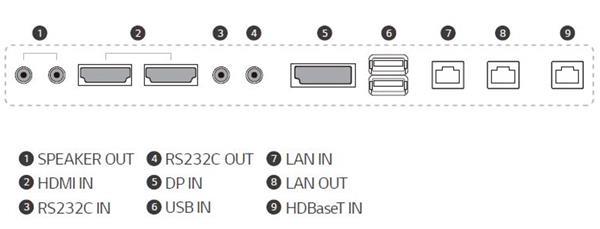

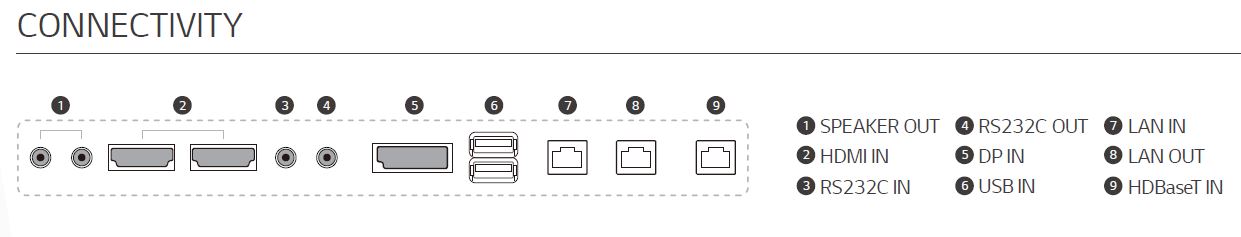

• Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
• Anti-Reflection Coating
• IP56 Design, IK10 Protective Glass
Slim & Light Design
XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
Easy integration for partner’s customized design
The XE4F series are lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series are also mount ready and optimized for customers, based on the industry destination and use.
Bright & Brilliant
The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses. *Quarter Wave Plate
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
Support HDBaseT ™
XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs.
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Display
- Drifttid
- 24/7
- Bilddiagonal
- 49 "
- Upplösning
- 1920x1080
- Ljusstyrka
- 4 000 Nits
- Porträtt
- Ja
Funktioner
- Skyddsglas
- Ja IK10 certifierat
- Videovägg
- Nej
- Utomhusbruk
- Ja
- TV Tuner
- Nej
- Inbyggd högtalare
- Nej
- Mediaspelare
- Integrerad WebOS 4.0
Kommunikation
- Ethernet
- Ja x2 (in/out)
- Wi-Fi
- Nej
- Trådlös bilddelning
- Nej
Energi
- Strömförsörjning
- 100-240V~, 50/60Hz, Internal Power Supply
- Förbrukning Stand-by
- 0,5 W
- Förbrukning Typisk
- 290 W
- Förbrukning Max
- 370 W
Mått och vikt
- VESA hålbild (mm)
- Ej Standardhålbild 490x1048 mm. An extra bracket is needed for VESA compability
- Bredd
- 1 153 mm
- Höjd
- 656,2 mm
- Djup
- 88 mm
- Nettovikt
- 32 kg
Övrigt
- Medföljande Tillbehör
- Remote Controller, Manual, Regulation Book, Phone to RS232C Gender, HDMI Cable, Power Cable, Battery
- Garanti
- 3 år swap
Förpackningsinfo
- Förpackningsstorlek
- 1 287 x 797 x 207 mm
- Förpackningsvikt
- 37,00 kg
