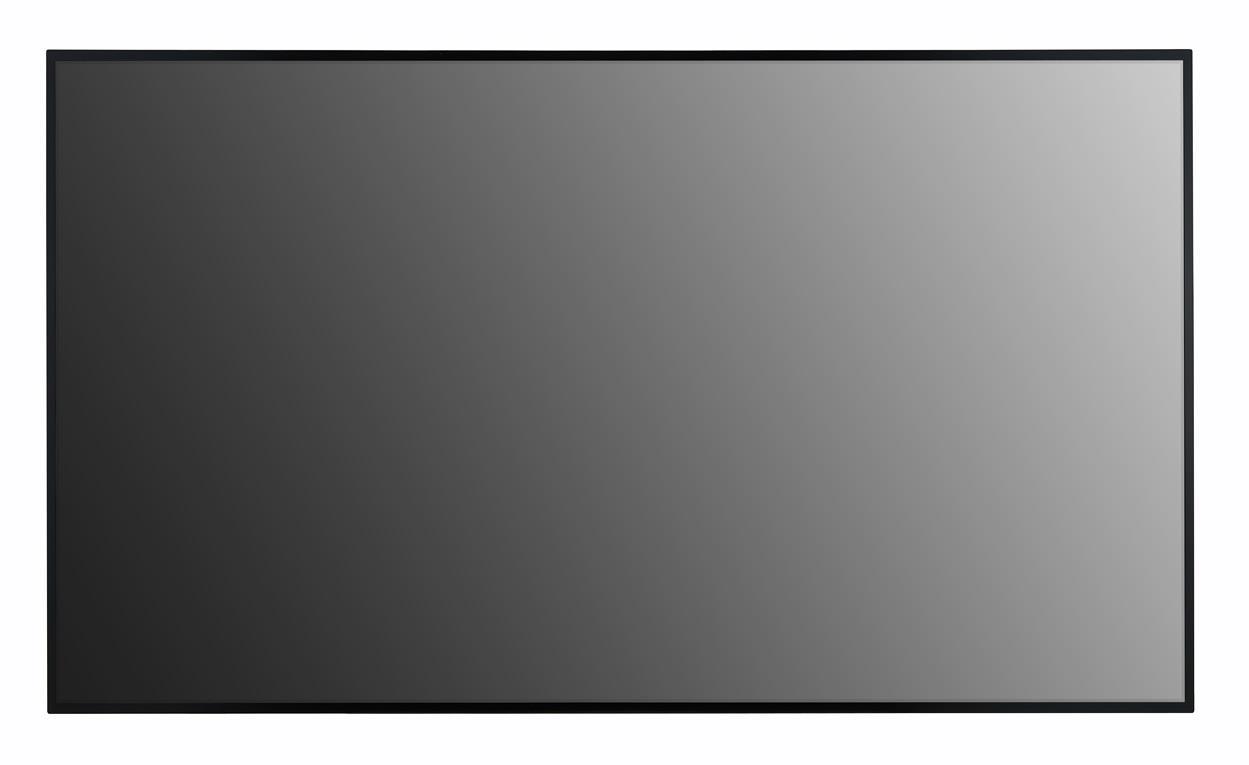

XF Series - There is increasing demand for outdoor signage for delivering information and advertisement. With high-brightness and reliable performance, the open frame XF Series is able to achieve these goals effectively in any location.
Key Features:
- Brightness : 3,000 cd/㎡ (Typ.)
- Life Time : 50,000 hours
- Bezel : 9 mm (T/B), 6.5 mm (L/R)
- Depth : 105 mm
- Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB / External speaker out (L/R)
High Brightness - With a great brightness of 3,000* cd/㎡, XF series clearly deliver contents and
attract public attention, which is the ultimate display for outdoor visibility.
Visible with Polarized Sunglasses - QWP (Quarter Wave Plate)* enables clear visibility even when the viewer is wearing polarized sunglasses.
No Blackening - Even under direct sunlight exposure, the open frame XF series remain free
of blackening defects under 110°C and provide superior quality for outdoor usage.
Smart Brightness Control - The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
High Operating Temperature - Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
Conformal Coating - The product can be often unavoidably exposed to dust and water during
maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
webOS Smart Platform - Quad Core SoC (System-on-Chip) can execute several tasks at the same time
without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

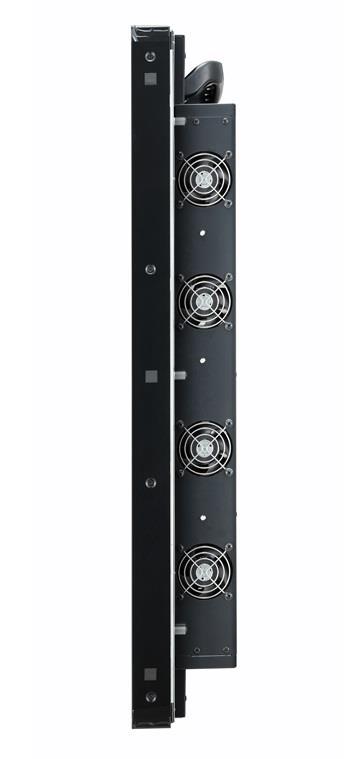

Slim Design - Thanks to its thin depth, the XF series takes up less space and leads to ease of
installation for various applications.
Display
- Drifttid
- 24/7
- Bilddiagonal
- 55 "
- Upplösning
- 1920x1080
- Ljusstyrka
- 3 000 Nits
- Porträtt
- Ja
Funktioner
- Skyddsglas
- Nej
- Videovägg
- Nej
- Utomhusbruk
- Nej
- TV Tuner
- Nej
- Inbyggd högtalare
- Nej
- Mediaspelare
- Integrerad WebOS 3.0
- Mediaspelare
- USB mediaspelare
Kommunikation
- Ethernet
- Ja
- Wi-Fi
- USB-dongle (tillbehör) via AN-WF500 Wi-Fi USB dongle (option)
- Trådlös bilddelning
- Nej
Energi
- Strömförsörjning
- 100-240 V~, 50/60 Hz Built-in Power Supply
- Förbrukning Stand-by
- 0,5 W
- Förbrukning Typisk
- 250 W
- Förbrukning Max
- 290 W
Mått och vikt
- VESA hålbild (mm)
- 600x400
- Bredd
- 1 235,5 mm
- Höjd
- 709,4 mm
- Djup
- 106,8 mm
- Nettovikt
- 26,5 kg
Övrigt
- Medföljande Tillbehör
- Remote Controller (2 Batteries Included), Power Cord, IR Extension Cable/PCB, HDMI Cable, Manual (ESG&EIG), IR Bracket
- Garanti
- 3 år swap
Förpackningsinfo
- Förpackningsstorlek
- 1 344 x 236 x 820 mm
- Förpackningsvikt
- 32,30 kg
