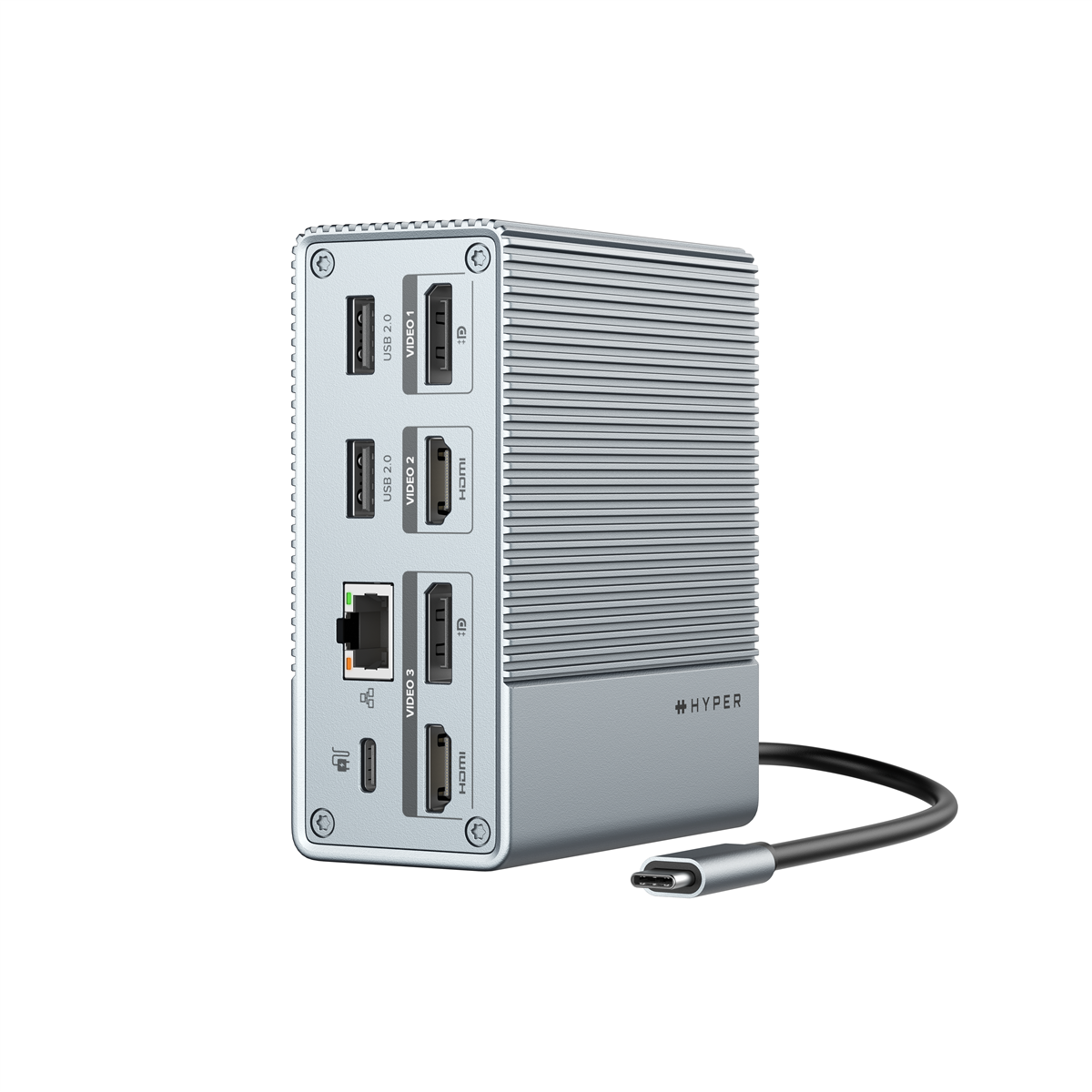

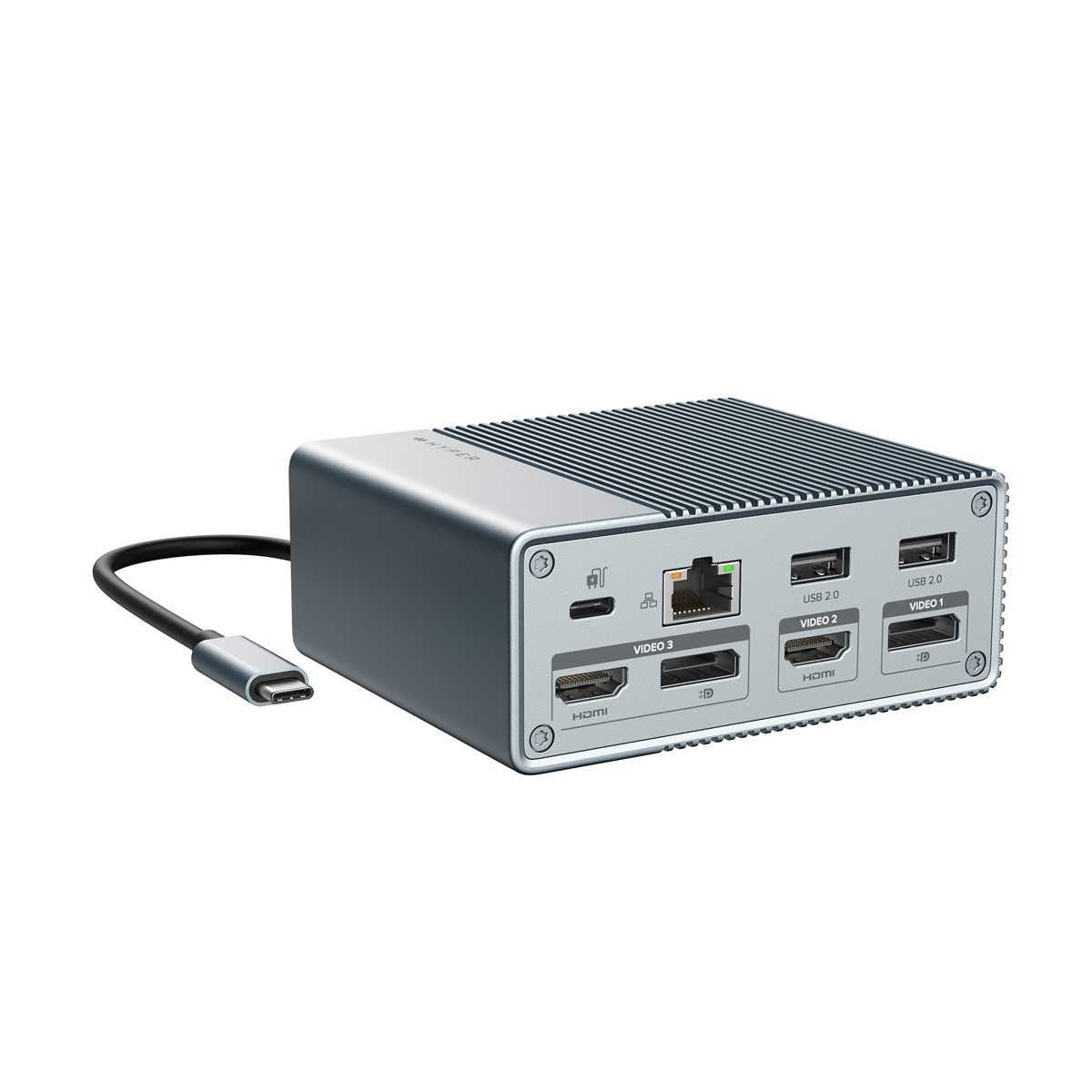

HyperDrive GEN2 12-in-1 USB-C Docking Station

  • Triple Extended Display Support
  • Use HDMI Or DisplayPort
  • High-Speed USB
  • Driverless Plug & Play
  • Compatible with 100W USB-C Power adapters†
  • Fast & Reliable Gigabit Ethernet

Meet the newest way we’re maximising any working professional’s PC, Chromebook or MacBook, the HyperDrive GEN2 12 Port USB-C Dock. This powerful and minimalist USB-C Docking Station features driverless plug and play triple extended display support to deliver an incredibly versatile connectivity solution.

Additionally, it features 12 integrated ports for all your connected devices or peripherals and allows you to connect to extended displays with the flexibility of 2 HDMI ports or 2 DisplayPorts that can be used interchangeably.

Triple Extended Display Support
Easily connect up to 3 external displays with the flexibility of 2 HDMI and 2 DP ports. *Up to 3 Extended Displays are supported on Windows and Chrome OS only as MST (Multi-Stream Transport) is required. macOS does not support MST. Up to 3 Mirrored Displays are supported on Windows, Chrome OS and macOS. 4K 60Hz requires that your USB-C port supports DP 1.4 and DSC.

Use HDMI Or DisplayPort
You choose how you want to connect with 2 HDMI ports or 2 DisplayPorts that can be used interchangeably.

High-Speed USB
Blazing-fast 2nd generation USB-A 3.2 10Gbps and USB-C 3.2 10Gbps with 2X faster transfer speed than our 1st generation hubs.

Driverless Plug & Play
Driverless plug & play capability allows for easy installation and deployment.

Uniquely Powered By USB-C Power Delivery
Top up your laptop with up to 100W power when connected to an external USB-C PD charger†. Reduce complexity thanks to USB-C power compatibility, no proprietary connection required.

Fast & Reliable Gigabit Ethernet
Get the most reliable and fastest internet connection for work, play, and video conferencing.

Compatible Operating Systems
macOS 10.15 or later: Yes, Windows 8 or later: Yes, Chrome OS: Yes, Linux: Yes, iPad OS: Yes, Android: No

Compatible Devices
MacBook Air/Pro 2021 or later: Yes, MacBook Air/Pro 2016-2020: Yes, iPad Pro 2018 or later: Yes, iPad Air 2020 or later: Yes, Chrome OS laptop with Thunderbolt 3/4, USB 3.0 or later Type C with DP Alt-Mode: Yes, Windows OS laptop with Thunderbolt 3/4, USB 3.0 or later Type C with DP Alt-Mode: Yes, Any other device with USB-C*: No

† Power adapter not included for maximum flexibility. Requires Targus® APA108EU or HyperJuice HJG100EUZ 100W USB-C AC adapter for maximum power PD pass-through.

*M1/M2 MacBook (2020 MacBook 13"Air & 2020 MacBook 13"Pro) will not support multi-display connectivity, but will be compatible with the rest of the dock’s ports.

*USB-A ports will not support Apple SuperDrive or charge iPads.

*The host device’s USB-C port must support Power Delivery, DisplayPort Alt Mode and USB-C 3.1 (generation 1 or 2).

*Up to 2 Extended Displays are supported on Windows and Chrome OS only as MST (Multi-Stream Transport) is required. Mac OS does not support MST.

*Up to 2 Mirrored Displays are supported on Windows, Chrome OS and Mac OS.

*4K 60Hz requires that your USB-C port supports DP 1.4 and DSC.

*Full dock functionality depends on the host computer’s capabilities. Please contact your host device manufacturer to confirm external display, host charging, and USB device support.

Monitor Support Capability

  • Extended Monitors: 3
  • Single Monitor (Max output): 4K 60Hz
  • Dual Monitor (Max output): 4K 60Hz / 4K 30Hz
  • Triple Monitor (Max output): 4K 30Hz / 4K 30Hz / 1080P


Allmänt

Effekt
100 W
Kompatibel Mac
Ja Dual & Triple extended displays are not supported on Mac OS as MacOS supports ST (Single Stream Transport)
Kompatibel PC
Ja Extended display video requires USB-C host to support DP Alt mode.
Kompatibel Chromebook
Ja Extended display video requires USB-C host to support DP Alt mode.

Anslutning

USB/Data anslutning från
USB-C
DisplayPort
Ja 2x 1.4 (4K 60Hz)
HDMI
Ja 2x HDMI 2.0 (4K 60Hz)
Ethernet
Ja Gigabit Ethernet
Ljudutgång
Ja 3.5 mm Audio Combo Jack (384 kHz 32 bit)
Thunderbolt
Ja Thunderbolt 3/4 compatible
USB-C PD
Ja 1x 10Gbps PD 85W Passthrough, 1x 10Gbps 100W PD
USB typ-C
Ja 1x 10Gbps
USB typ-A
Ja 1x 10Gbps, 2x 480Mbps

Övrigt

Färg
Silver
Garanti
2 år Limited 2-Year Warranty

Förpackningsinfo

Förpackningsstorlek
160 x 149 x 55 mm
Förpackningsvikt
600 g

Förpackningsinfo (10 st)

Förpackningsstorlek
310 x 272 x 180 mm
Förpackningsvikt
6,26 kg
Streckkod
16941921148284

Förpackningsinfo (20 st)

Förpackningsstorlek
380 x 330 x 300 mm
Förpackningsvikt
13,14 kg
Streckkod
20817110016319, 26941921148281

Tillbehör

Artikelnummer 1973540
