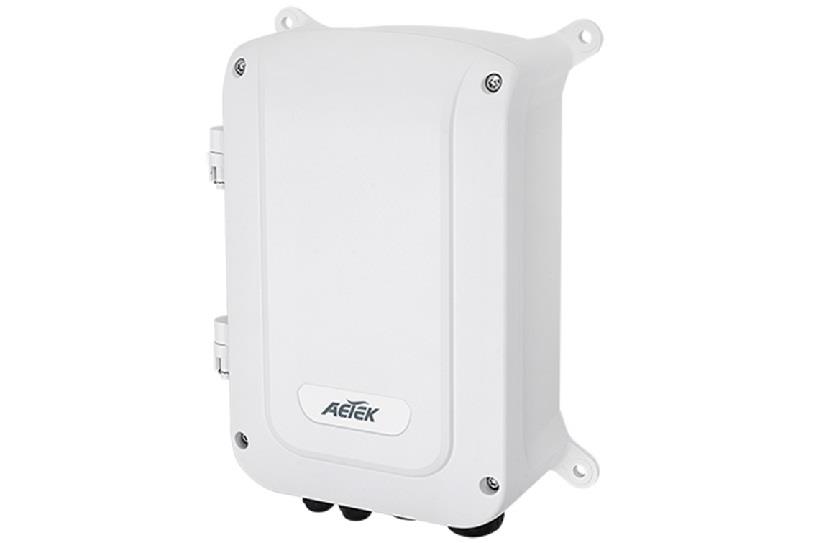

The H40-082-30-250 is a Gigabit PoE solution for the outdoor environment and offers eight of 10/100/1000BASE-T ports featuring 30-watt 802.3at. Further empowering the units are 2 additional Gigabit SFP fiber slots for uplink.
With a total PoE power budget up to 250 watts, the H40-082-30-250 meets the demand of PoE power for any HD IP surveillance applications. It enables the outdoor connection of PoE power devices(PDs) to the network, including outdoor PoE IP cameras, PoE wireless access points (APs), and other industrial applications.
The H40 series of Industrial Unmanaged PoE Switches supports IP67, 6KV surge protection for each Ethernet port, 40KV surge protection in AC power, and harden-graded construction to ensure operation in harsh weather conditions ranging from -40°C to 65 °C.
The H40 series has three sub-models, each classified as easy-to-install power source equipment (PSE) and providing power of up to 30W or 60W per port.
Allmänt
- Formfaktor
- Vägg
- Switch kapacitet
- 20 Gbit/s
- Primära Portar
- 8 x
- SFP Portar
- 2 x
Funktioner
- PoE
- Ja
- PoE Ports
- 8 x
- PoE Effekt/Port
- 30 W Max
- PoE Budget
- 250 W
Mått och vikt
- Bredd
- 245,8 mm
- Djup
- 118 mm
- Höjd
- 315,4 mm
- Vikt
- 4,37 kg
Miljövariabler
- IP Klassning
- IP67
Förpackningsinfo
- Förpackningsstorlek
- 445 x 319 x 220 mm
- Förpackningsvikt
- 4,99 kg
