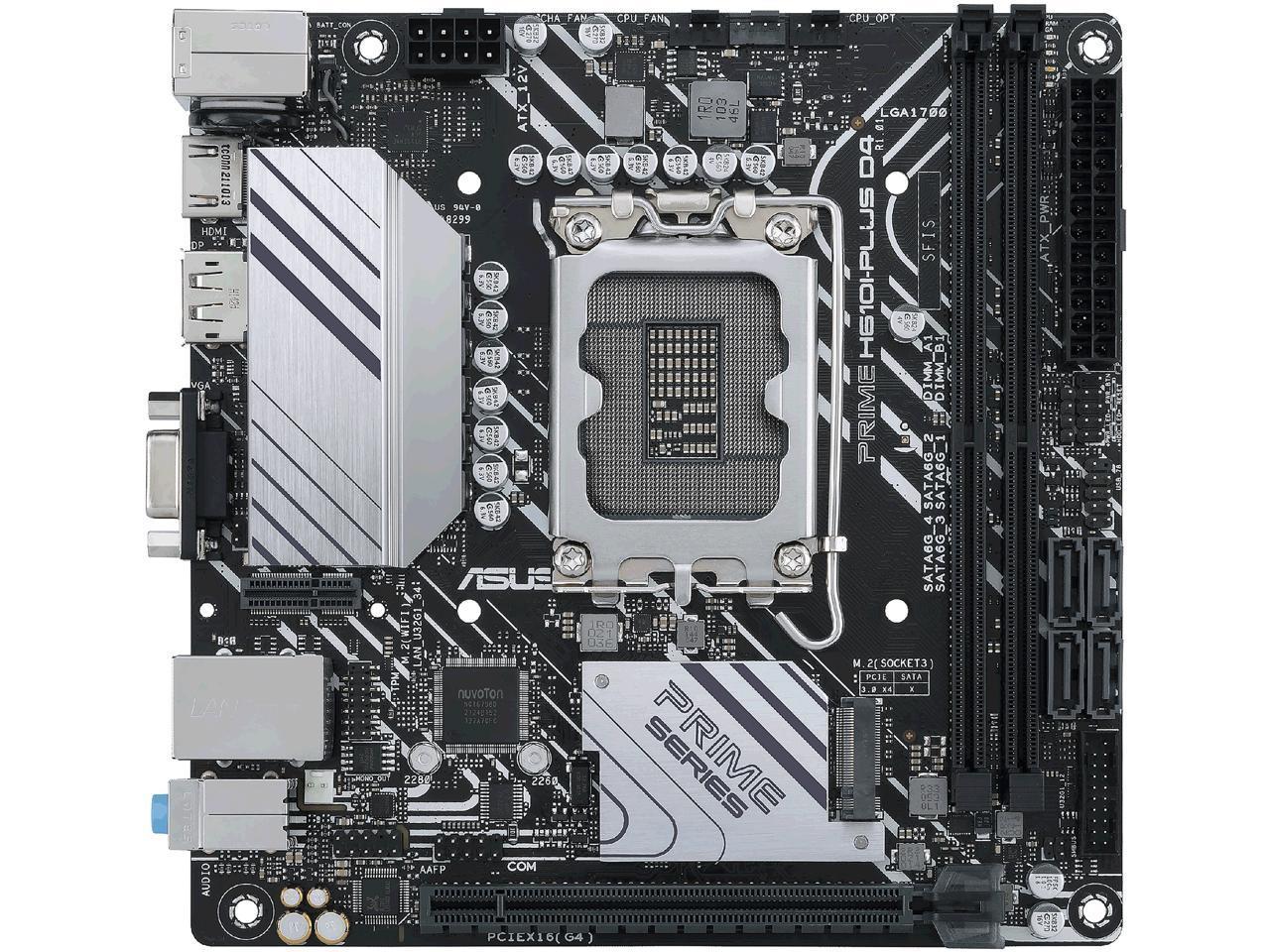

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header
Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Allmänt
- Processorsocket
- Intel 1700
- Chipset
- H610
- Formfaktor
- Mini-ITX
Minne
- Minnestyp
- DDR4
- Minneskanal
- DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
- Minnesplatser
- 2 st.
- Max minne
- 64 GB
Expansionsplatser
- PCIe x16
- 1 st.
Lagringsplatser
- Antal M.2-platser
- 1 st.
- M.2 stöd
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- SATA-portar
- 4 st.
Nätverk
- WiFi
- Nej
- Bluetooth
- Nej

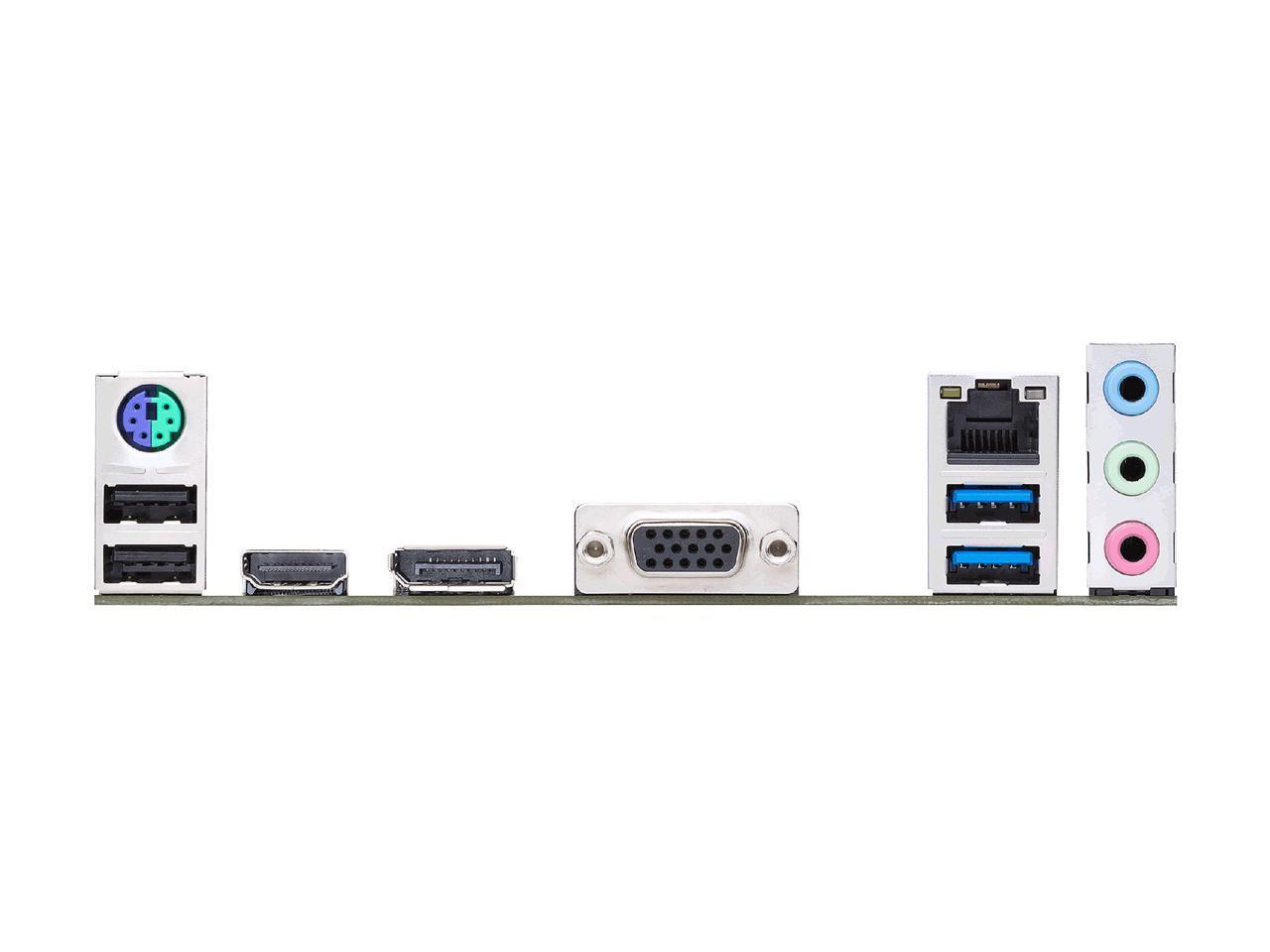

Externa portar
- USB typ-A
- Ja 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
- Ljudutgång
- Ja
- Ethernet
- Ja Realtek 1Gb Ethernet port
Mått och vikt
- Bredd
- 324 mm
- Längd
- 203 mm
Förpackningsinfo
- Förpackningsstorlek
- 234 x 234 x 71 mm
- Förpackningsvikt
- 743 g
