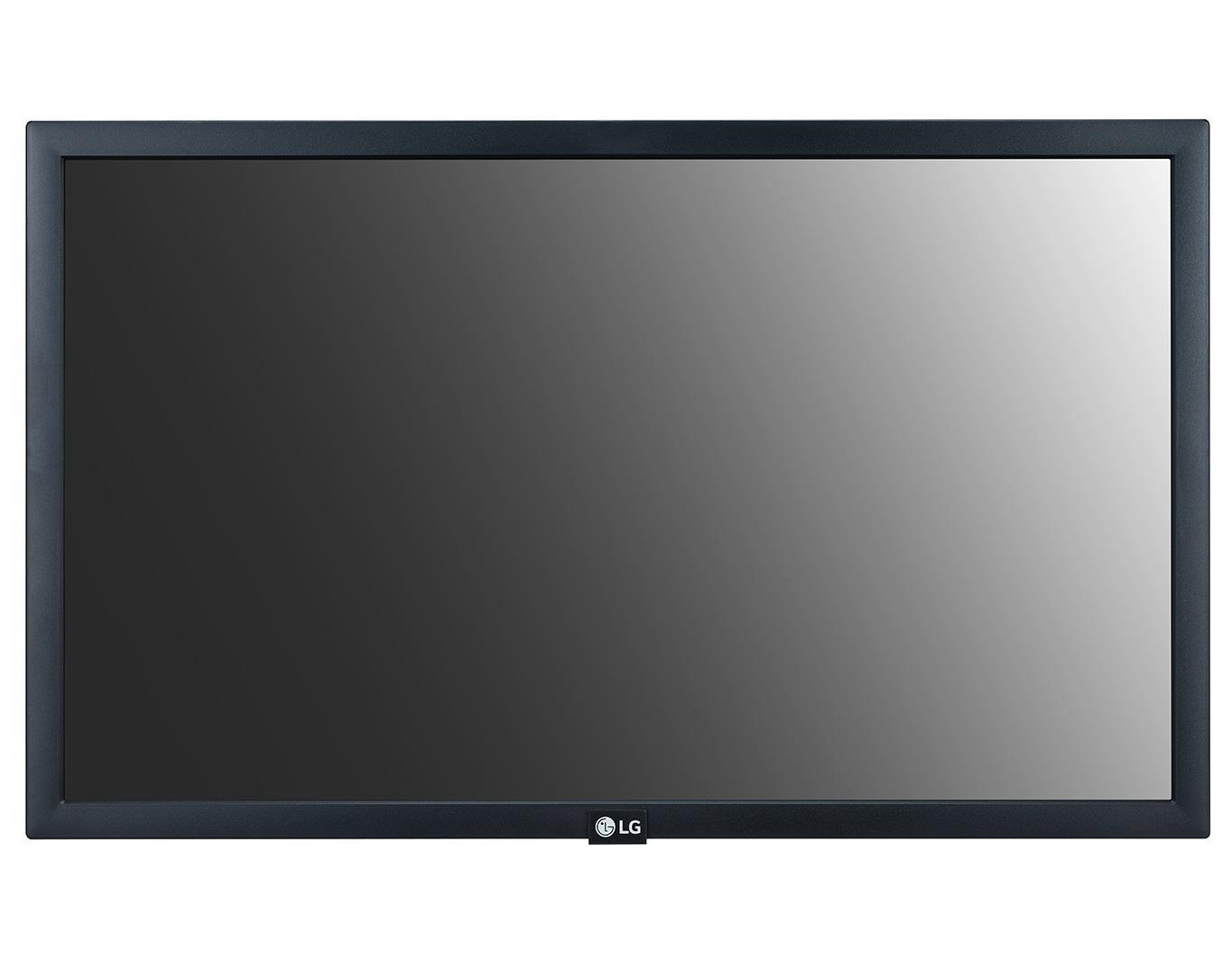

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
Key Features:
• Brightness(Typ.) : 250 cd/m²
• Bezel : 16.3mm

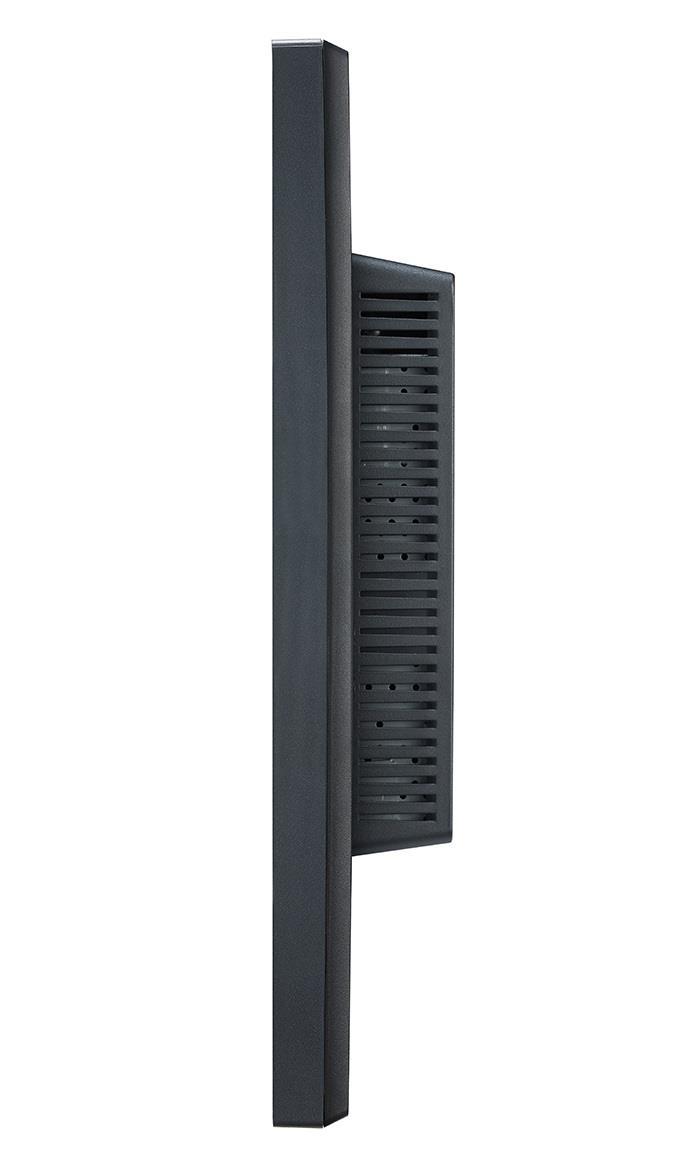

• Depth : 53.8mm
• Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
• USB Plug & Play
• Built-in Wi-Fi
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
- The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
Display
- Drifttid
- 16/7
- Bilddiagonal
- 22 "
- Upplösning
- 1920x1080
- Ljusstyrka
- 250 Nits
- Porträtt
- Ja
Funktioner
- Skyddsglas
- Nej
- Videovägg
- Nej
- Utomhusbruk
- Nej
- TV Tuner
- Nej
- Inbyggd högtalare
- Ja 2x1W
- Mediaspelare
- Integrerad WebOS 4.1
- Mediaspelare
- USB mediaspelare
Kommunikation
- Ethernet
- Ja
- Wi-Fi
- Inbyggt
- Trådlös bilddelning
- Ja Screen Share
Energi
- Strömförsörjning
- AC 100-240 V~, 50 / 60 Hz built in powersupply
- Förbrukning Stand-by
- 0,5 W
- Förbrukning Typisk
- 30 W
- Förbrukning Max
- 33 W
Mått och vikt
- VESA hålbild (mm)
- 100x100
- Bredd
- 510,3 mm
- Höjd
- 302,1 mm
- Djup
- 53,8 mm
- Nettovikt
- 3,34 kg
- Rambredd (bild-bild)
- 16,3 mm
Övrigt
- Medföljande Tillbehör
- Remote, Power Cord, QSG, HDMI Cable, 3,5mm tele to RS232C adapter, External IR, IR Sheet
- Garanti
- 3 år Swap
Förpackningsinfo
- Förpackningsstorlek
- 572 x 369 x 119 mm
- Förpackningsvikt
- 4,87 kg
