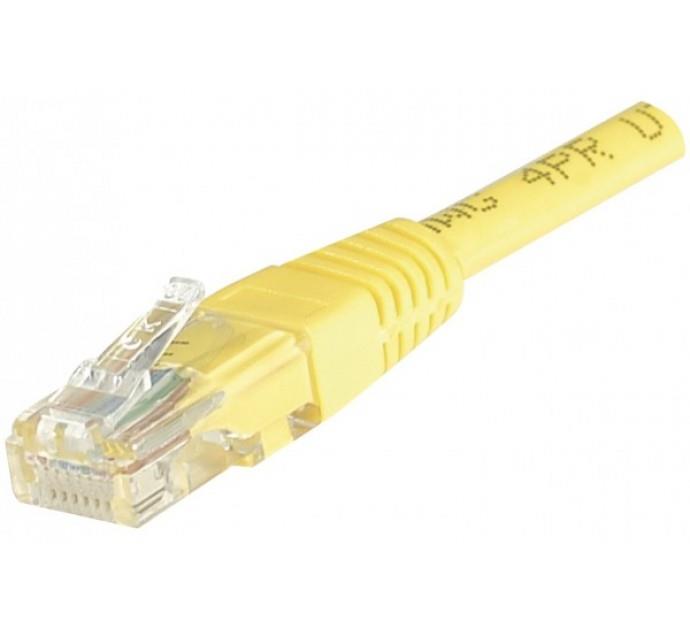

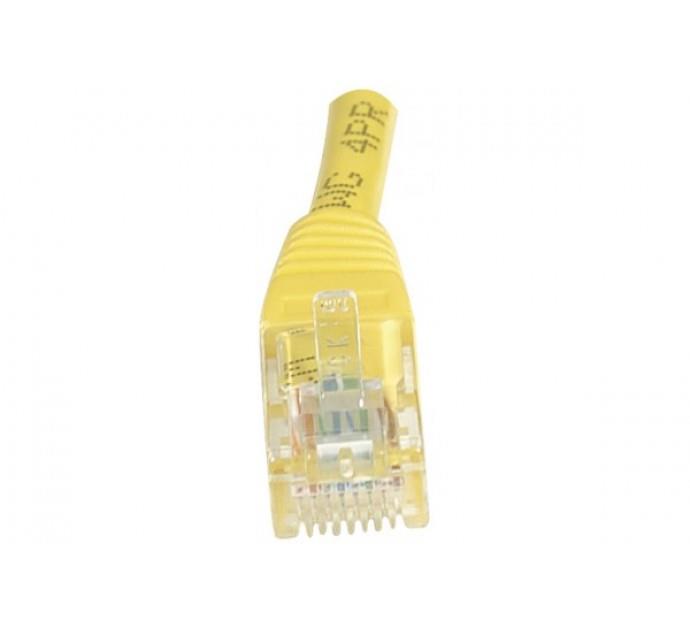

UNSHIELDED PATCH CABLE CAT 6 U/UTP copper aluminum composite
This RJ45 network cord compatible with the CAT.6 Class E category, allows you to transmit data at frequencies up to 250 MHz, and at speeds up to 1 Gbps.
The expression U/UTP indicates that it has no protective shield. This type of cord is recommended only in the absence of external disturbances.
Its conductor is made of aluminum covered with copper, with a copper proportion >25% in order to ensure better conductivity than competing products, guaranteeing higher performance. Network cords made of copper-clad aluminum are not recommended for PoE applications, which require cords made exclusively of copper.
The sheath of this cord is PVC, for indoor use only.
This cord is compatible with ANSI/TIA 568 and ISO 11801 standards, and is guaranteed for
15 years.
Characteristics:
- Category: CAT. 6
- Frequency: 250 MHz
- Impedance: 100 ohms
- Conductor: Copper Clad Aluminum (CCA)
- Wiring Standard: Compliant with ANSI/TIA 568C.2 - ISO 11801
- Jacket: PVC
- Low Profile Connector Sleeve, Compliant high density
- Individually packaged
- Storage and operating temperatures: -20° to +60°C
- Guarantee: 15 years
- Not suitable for PoE applications
Allmänt
- Kabeltyp
- Patch rund (standard)
- Kategori
- Cat 6
- Skärmning
- U/UTP
- Typ av ledare
- Flertrådig
- Material Ledare
- Kopparlegering
- Korskopplad
- Nej
- Utomhusbruk
- Nej
- Låg rök/halogenfri
- Nej
- HDBaseT-klassad
- Nej
- Vinklad kontakt
- Nej
Mått och vikt
- Längd
- 0,3 m
Övrigt
- Färg
- Gul
- Garanti
- 15 år
Förpackningsinfo
- Förpackningsstorlek
- 57 x 32 x 12 mm
- Förpackningsvikt
- 18 g
