More Flexibility for Room Design and Installation
Get more from your codec: Bridge traditional videoconferencing equipment into the USB-based conferencing applications such as Skype for Business, Google Hangouts, or Zoom that your budget-minded customers may prefer.
Make your camera a conferencing camera, without a codec: OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. You get traditional videoconferencing audio quality with soft-client connectivity – and without the traditional videoconferencing price tag.
Sounds complicated – but it's not. Tailored for Polycom codec systems and compatible with the Polycom EagleEye IV camera, this OneLINK Bridge kit simplifies installation by extending power, video and control to your camera over a single Cat-5e cable up to 328 ft (100m).
Key Features:
• Simple, clutter-free camera extension with HDBaseT technology
• Power, control, and video up to 328ft (100m) over a single Cat-5e/6 cable
• Bridges audio and video for easy soft-client conferencing
• Configurable audio matrix with AEC
• Simultaneous HDMI, USB 3.0, and HD-SDI outputs
• Up to 1080p/60 resolution available over uncompressed USB
In the Box:

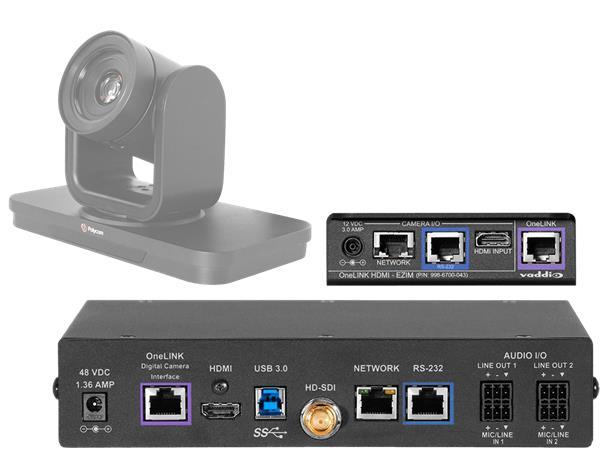

• OneLINK Bridge Interface
• OneLINK HDMI EZIM with mounting screws

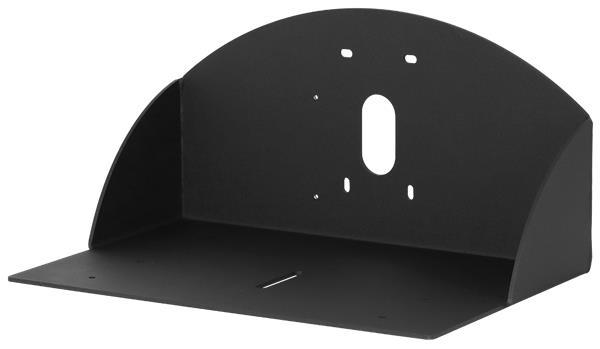

• Thin Profile Wall Mount (black) with mounting hardware
• Quick-Start Guide
• 48V power supply with AC cord set(s)
• 4 qty 3-position phoenix-style connectors
• 0.3m OneLINK for Polycom cable, EZIM side
• 0.6m OneLINK for Polycom cable, codec side
• 1.8m USB 3.0 cable, type A to B
• EZCamera RS-232 Control Adapter
- Extender typ
- Sändare & mottagar kit
- Teknologi
- HDBaseT 1.0 Class B
- Räckvidd
- 100 m over Cat-6 cable
Bildspecifikation
- Upplösning max ut
- 1920x1080
- Uppdateringsfrekvens
- 60 Hz
Anslutningar
- Bildanslutning in
- HDMI
- Bildanslutning ut
- HDMI, HD-SDI, USB-B
- Ljudanslutning in
- Euroblock lågnivå x2 Line/Mic Balanced
- Ljudanslutning ut
- Euroblock lågnivå x2 Line Balanced
Funktioner
- Scaler
- Nej
- USB passthrough
- Nej
- Styrning
- Ethernet/IP (RJ-45) Telnet
- Styrning
- Frontpanel, RS-232
Energi
- Strömförsörjning
- External Power Supply
Mått och vikt
- Bredd
- 213 mm Reciever
- Djup
- 152 mm Reciever
- Höjd
- 44 mm Reciever
- Nettovikt
- 1,5 kg Reciever
Övrigt
- Montering
- 19" Rack, 1U with rack adapter (optional)
- Montering
- Bord Under table mounting with optional bracket
- Montering
- Fristående/Hylla
- Medföljande Tillbehör
- See product text above
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 355 x 330 x 330 mm
- Förpackningsvikt
- 3,63 kg
