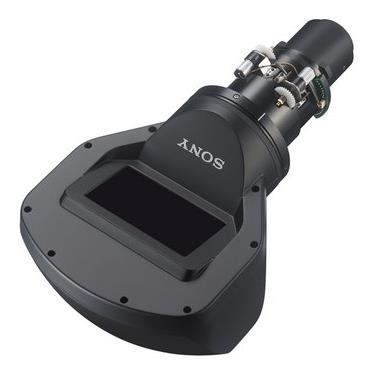

Projection Lens for the VPL-F Series with a throw ratio of 0.33:1*
- Focus: Powered
- Coner Correction: Powered
- F value: F1.85
- Focal Length: 5.9 mm
- Focus Quality** ARC-F
- Convergence Quality** Required "Panel Alignment" adjustment
- 3D Support: No
- Brightness Ratio* (100% = standard lens, widest zoom position)88%
- Remarks: Convex from Cabinet: +256.1 mm
*Values are approximately
**Depends on the attached model
***Based on the position of projection distance chart
Allmänt
- Lins Typ
- Ultra Short Mirror
- Zoomtyp
- Fix
Optik
- Throw Ratio från
- 0,33
- Throw Ratio till
- 0,33
- Lens shift
- Ja V. Shift***+/-5%, H. Shift***+/-5%
- Bilddiagonal min
- 80 "
- Bilddiagonal max
- 300 "
Mått och vikt
- Bredd
- 229 mm
- Djup
- 375 mm
- Höjd
- 328 mm
- Nettovikt
- 2,9 kg
Förpackningsinfo
- Förpackningsstorlek
- 100 x 100 x 100 mm
- Förpackningsvikt
- 1 000 g
