Signage Solutions D-Line Display

Smart, fast 24/7 display.
Make it stand out with a fast Philips D-Line Professional FHD display. Philips superb
picture quality ensures true colors and intense contrast. You can effortlessly display
content from multiple sources on a single screen.

Operational flexibility
• SmartPower for energy saving

Brilliant picture. Blazing processor speed
• Full HD. Clear images. Crisp contrast
• Place in landscape or portrait orientation
• ADS wide-view panel display

Effortless setup. Total control
• Operate, monitor and maintain with CMND & Control
• Schedule what you want, when you want with SmartPlayer

Cost-effective system solution
• Energy-saving automatic backlight control
• FailOver ensures content is always playing



Display

Drifttid
24/7
Bilddiagonal
43 "
Upplösning
3840x2160
Ljusstyrka
500 Nits
Haze värde (%)
25
Porträtt
Ja

Funktioner

Skyddsglas
Nej
Videovägg
Nej
Utomhusbruk
Nej
TV Tuner
Nej
Inbyggd högtalare
Ja 2x 10W
Mediaspelare
USB mediaspelare For image, video, audio

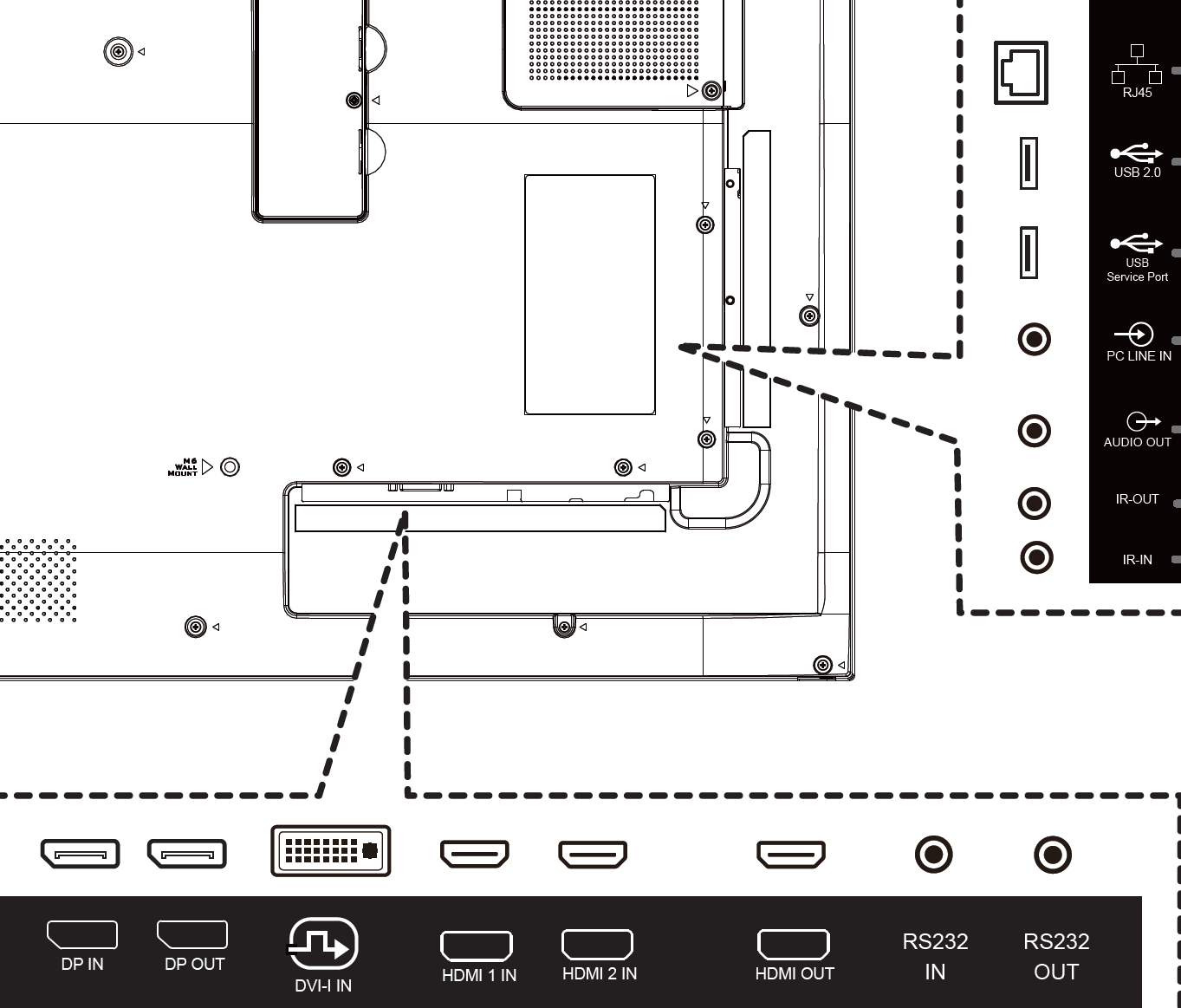

Anslutningar

Bildanslutning in
DisplayPort x1 (DP 1.4)
Bildanslutning in
DVI-I x1 (VGA via adapter)
Bildanslutning in
HDMI x2 (HDMI 2.0)
Bildanslutning ut
DisplayPort x1 (DP 1.4)
Bildanslutning ut
HDMI x1
Ljudanslutning in
3,5mm tele x1
Ljudanslutning ut
3,5mm tele x1

Kommunikation

Ethernet
Ja
Wi-Fi
Nej

Energi

Strömförsörjning
AC 100-240 V; 50-60 Hz Internal Power Supply
Förbrukning Stand-by
0,5 W
Förbrukning Typisk
62 W
Förbrukning Max
170 W
Energiklass
G

Mått och vikt

VESA hålbild (mm)
200x200 M6
Bredd
973 mm
Höjd
561,2 mm
Djup
63,5 mm
Nettovikt
10,71 kg

Övrigt

Medföljande Tillbehör
Philips logo (x1), AC Power cord, AC Switch Cover, IR sensor cable (1.8 m) (x1), Quick start guide (x1), Remote control & AAA batteries, RS232 cable, RS232 daisy-chain cable, USB Cover and screw x1, Wire Clamper (x3)
Garanti
3 år

Förpackningsinfo

Förpackningsstorlek
1 060 x 170 x 680 mm
Förpackningsvikt
15,60 kg
