Modular video conferencing room system for effortless hybrid meetings with Control Panel
- Wireless presentation: 4K content sharing with 1 Button
- Next-gen ClickShare Button with Wi-Fi 6E support and USB-C DisplayPort™
- Intuitive Control Panel for one-tap start to your hybrid meetings
- Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
- Sustainable product with Barco Eco label A+

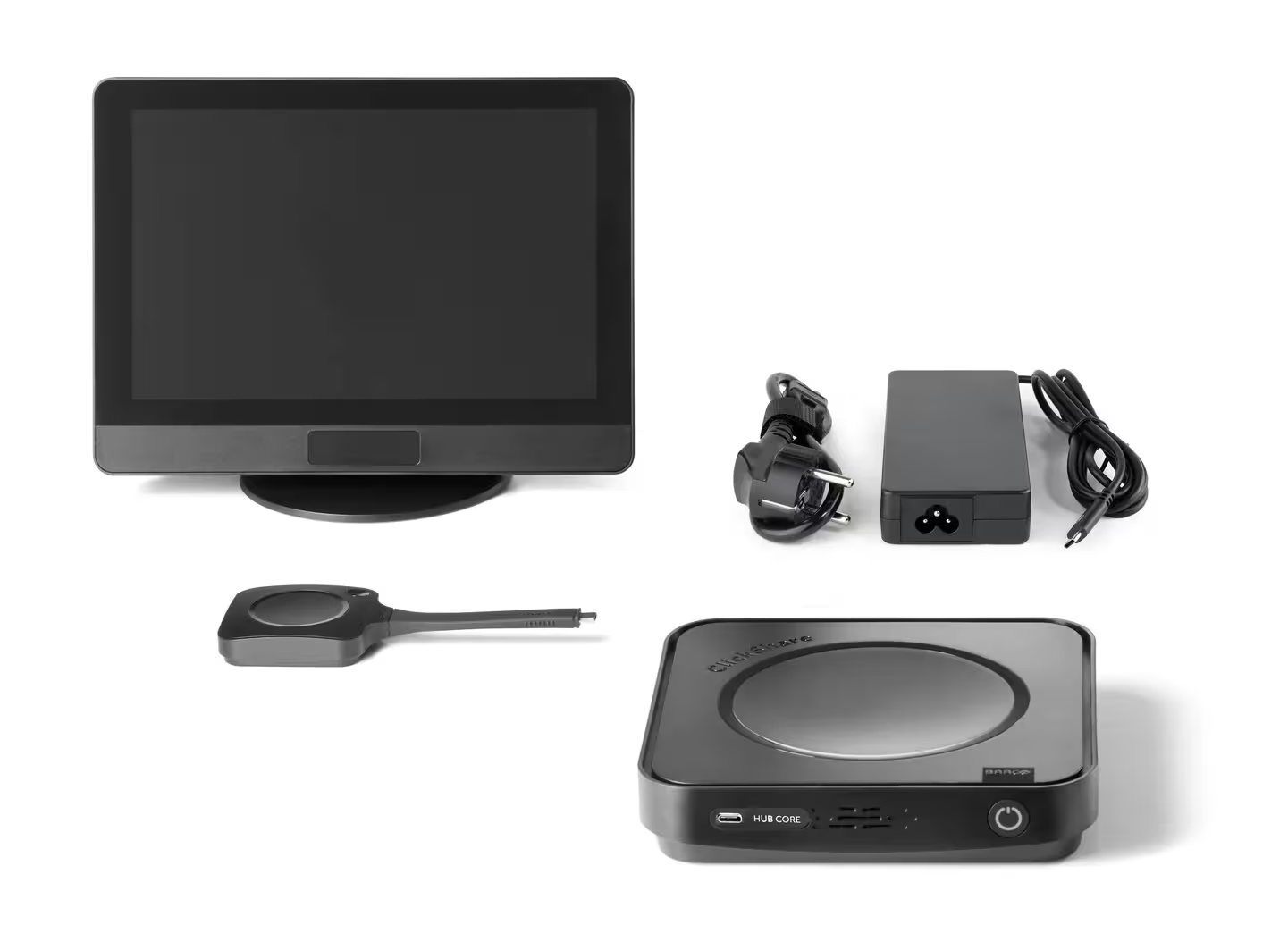

ClickShare Hub Core is a modular, wireless video conferencing system designed for effortless hybrid meetings.
The Hub Core works either with the ClickShare Control Panel or a touch screen of your choice, and it enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy thanks to the next-gen ClickShare Button.
For IT managers and integrators, ClickShare Hub Core offers a customizable solution for all room types. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.

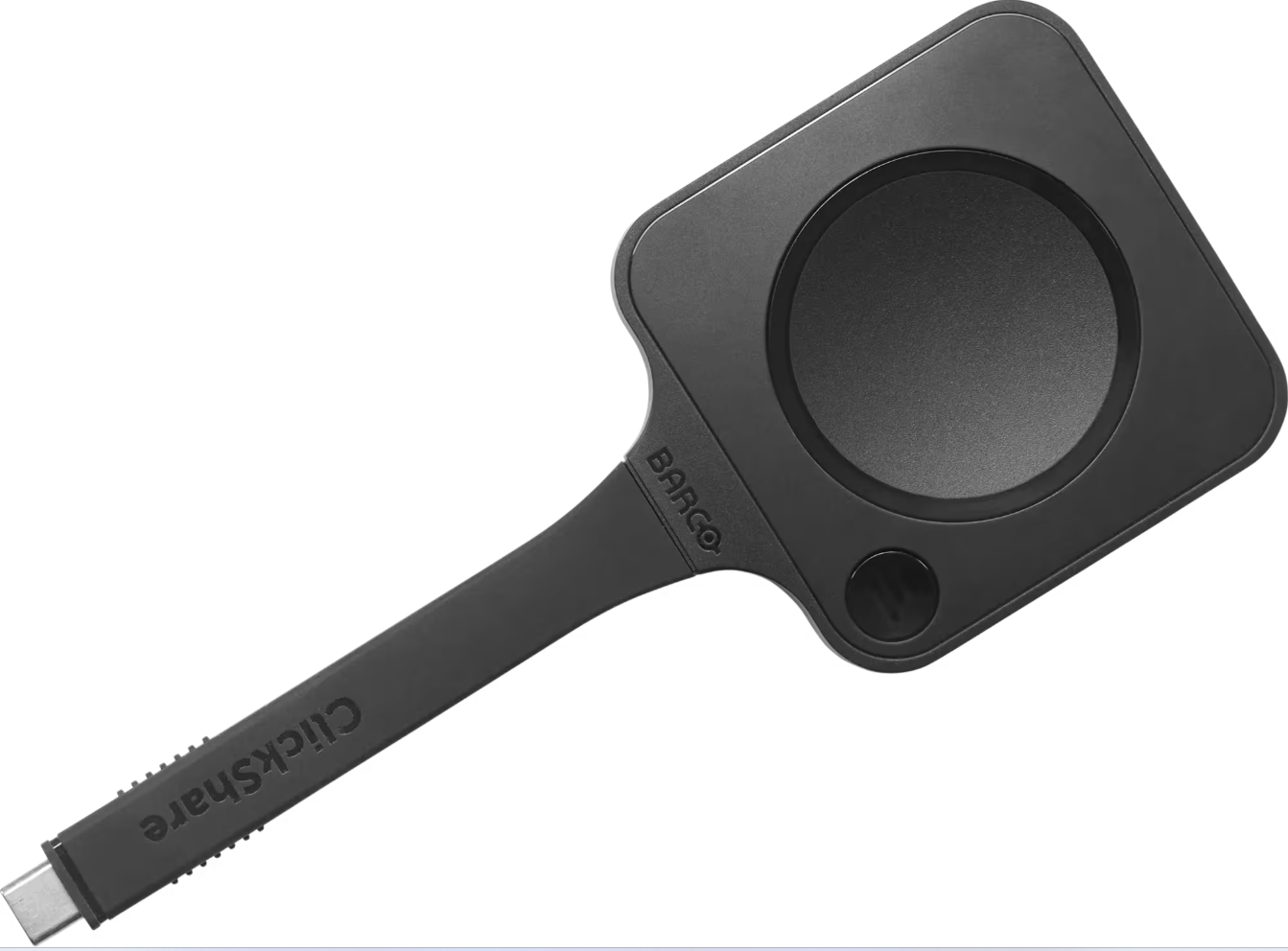

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.
Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing -no software or drivers needed.
For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
- Works seamlessly across all major OS in high-security environments
- Built-in security and user control
Allmänt
- Applikation/Certifiering
- Microsoft Teams Room
Kamera
- Kameratyp
- Ingen Kamera Connect camera via USB connection to Hub Core
Ljudspecifikation
- Inbyggd mikrofon
- Nej
- Extern mikrofon
- Ja via USB connection to Hub Core
- Inbyggd högtalare
- Nej
- Extern högtalare
- Ja via USB connection to Hub Core
Kommunikation
- Ethernet
- Ja
- Wi-Fi
- Inbyggt 2.4GHZ, 5GHz and 6GHz. IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1
- Trådlös bilddelning
- via ClickShare Button 5th Generation
- Trådlös BYOD
- via ClickShare Button 5th Generation
Anslutningar
- Bildanslutning in
- HDMI Up to 3840x2160) @30Hz
- Bildanslutning ut
- HDMI for Main Display, Up to 5120x2160 @30Hz
- Bildanslutning ut
- USB-C for Control Panel, up to 1280x800 @60Hz
Energi
- Strömförsörjning
- 100-240V~50-60Hz 2.4A External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR)
- Förbrukning Max
- 140 W
Mått och vikt
- Bredd
- 180 mm (Hub core)
- Djup
- 180 mm (Hub core)
- Höjd
- 30 mm (Hub core)
- Nettovikt
- 0,72 kg (Hub core)
Övrigt
- Medföljande Tillbehör
- ClickShare Hub Core Base Unit, 1 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide, Control Panel, ClickShare 10M 20W USB-C AOC cable, L-Shape mounting plate, Round base, Screw pack, Quick setup guide, USB-C cable lock kit
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 525 x 274 x 323 mm
- Förpackningsvikt
- 8,15 kg
