Features
- 18Gbps, 4K(60Hz 4:4:4), HDR10 and HDCP 2.2.
- 4K downscale to 1080p output, HDCP 2.2 downscale to HDCP 1.4 for maximum compatibility
- Up to 15m video repeater function with 10m input and 5m output
- 5V power injection
- Slim design

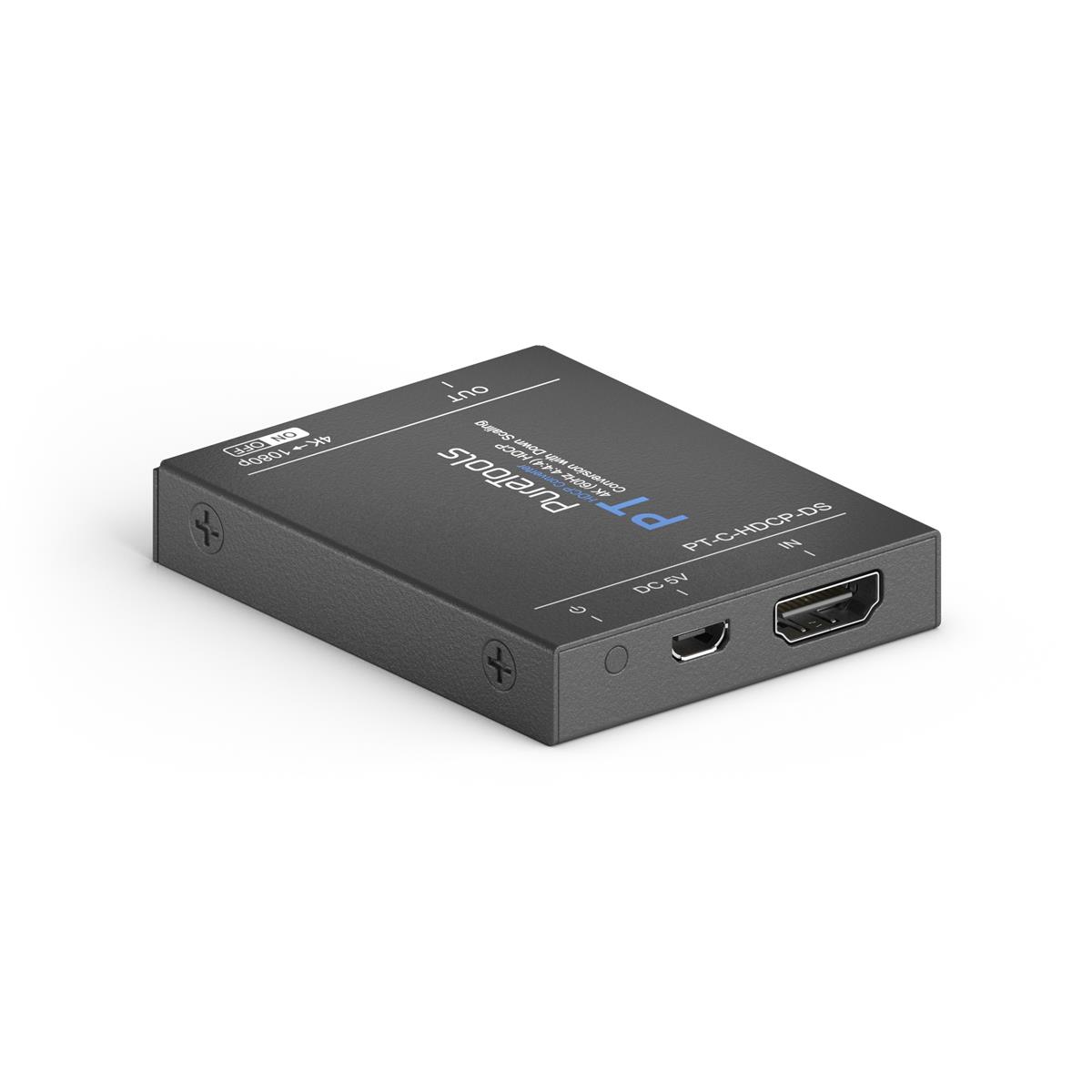

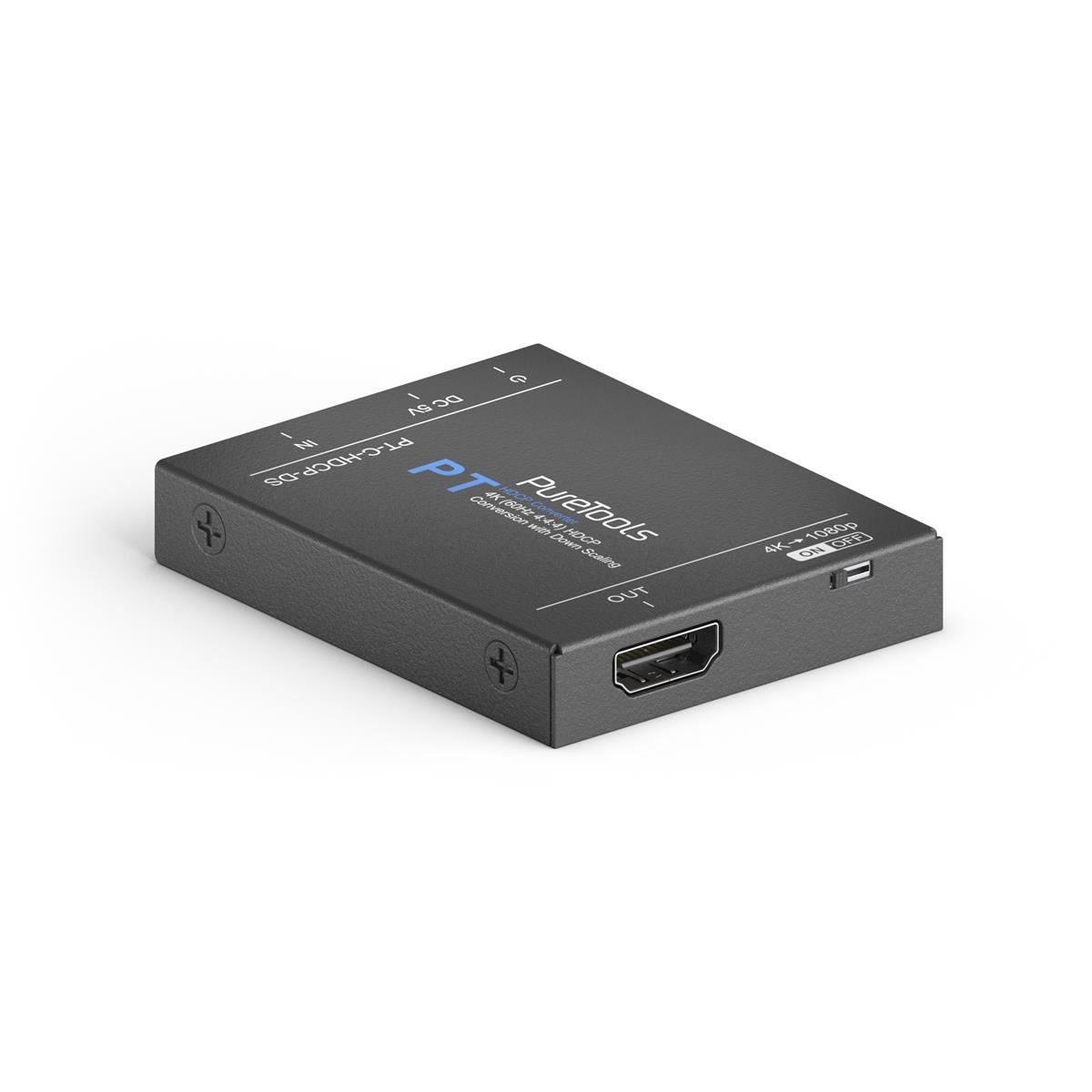

PureTools HDCP Converter with Down Scaling
The PT-C-HDCP-DS is an ultra-thin HDMI signal manager with HDMI V2.0 support. It is designed to enhance the compatibility between HDMI source and display to ensure compatibility between all display devices. The transmission of 4k@60Hz (max) signal from source to display is extended to up to 15m. In addition, it supports 4K downscaling to 1080p output, and HDCP follows the display device ensuring device compatibility.
In-Line HDCP Doctor and Repeater with 4K to 1080p Downscaling
PureTools HDCP Converter with Down Scaling - 18Gbps, 4K(60Hz 4:4:4), HDR10 and HDCP 2.3., 4K downscale to 1080p output, HDCP 2.3 downscale to HDCP 1.4 for maximum compatibility, Up to 15m video repeater function with 10m input and 5m output, Slim design with 5V power injection.
Allmänt
- Modell
- PT-C-HDCP-DS
- Applikation
- Konverter, Scaler
Bildspecifikation
- Upplösning
- 3840x2160 18Gbps, with HDR10 and HDCP 2.2.
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling
- 4:4:4
Anslutningar
- Antal bildingångar
- 1
- Antal bildutgångar
- 1
- Bildanslutning in
- HDMI
- Bildanslutning ut
- HDMI
Funktioner
- Scaler
- Ja 4K downscale to 1080p output, HDCP 2.2 downscale to HDCP 1.4 for maximum compatibility
- USB passthrough
- Nej
Energi
- Strömförsörjning
- USB, 5V power injection
Mått och vikt
- Bredd
- 70 mm
- Djup
- 55 mm
- Höjd
- 12 mm
- Nettovikt
- 0,05 kg
Övrigt
- Montering
- Fristående/Hylla
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 90 x 60 x 30 mm
- Förpackningsvikt
- 62 g
- Streckkod
- 4251364734957
