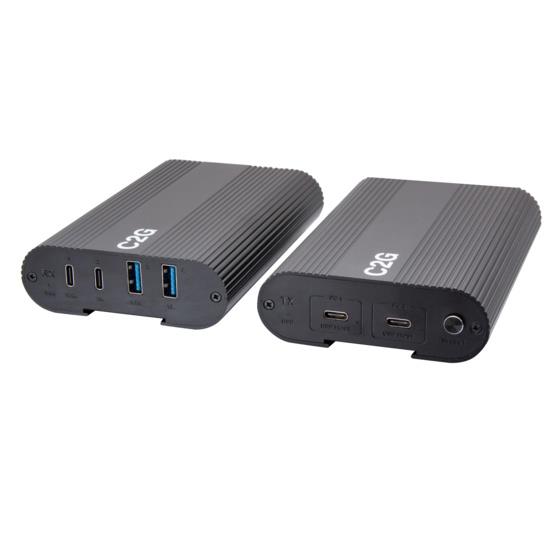

Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
The C2G Superbooster® 2x4 USB Extender Switch delivers exceptional performance, transmitting USB 3.2 Gen 1 signals at speeds up to 5Gbps over distances of up to 100m (328ft) via a single CAT6a U/FTP cable. Engineered for convenience and versatility, it features input switching of two computers to four devices.
Backwards compatibility with USB 2.0 and 1.1, makes it suitable for a wide range of devices.
It Supports auto switching (USB 5V detection), manual switching and RS-232 switching modes on the transmitter for versatile operation.
The receiver is equipped with 2 USB-C and 2 USB-A ports, ensuring broad device compatibility. With bidirectional 24V PoC (Power over Cable), this extender switch ensures seamless power distribution between the transmitter and receiver. Its plug-and-play functionality guarantees a hassle-free setup without the need for drivers, downloads, or software.
The Superbooster® USB Extender Switch is an ideal solution for connecting various USB devices, including webcams, PTZ cameras, keyboards, mouse devices, USB microphones, flash sticks, printers, scanners, and touch panel displays.
This device supports data transmission only and does not support DP Alt Mode video or Power Delivery.
- Extends USB 3.2 Gen 1 data signal up to 328ft (100m) over Cat6a U/FTP cable
- Data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Isochronous and bulk data transfer protocols
- Supports auto switching (USB 5V detection) and manual switching modes on the transmitter end
- Supports RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Plug and play – no drivers, downloads, or software required
- Backed by a 5-year warranty
Allmänt
- Extender typ
- Sändare & mottagar kit
- Teknologi
- HDBaseT 3.0
- Räckvidd (max)
- 100 m over Cat6a U/FTP cable
Egenskaper
- USB standard
- 1.1, 2.0
- USB standard
- 3.2 Gen 1 Data Transfer Protocol: Isochronous, Control, Interrupt, and Bulk
- Data överföringshastighet
- 5 Gbit/s
- USB/Data anslutning från
- USB-A x2 (USB 3.2 Gen 1, 5V/1.5A)
- USB/Data anslutning från
- USB-C x2 USB-Host [USB-C 3.2 Gen 1, 24-pin female]
- USB/Data anslutning till
- USB-C x2 (USB 3.2 Gen 1, 5V/1.5A)
Energi
- Strömförsörjning
- Supports bi-directional 24V PoC or DC 24V (DC24V/2A)
Mått och vikt
- Bredd
- 85 mm
- Djup
- 161 mm
- Höjd
- 28 mm
- Nettovikt
- 0,19 kg
Övrigt
- Medföljande Tillbehör
- 1x Transmitter, 1x Reciever, 1 x 24V/1A Multinational Power Supply with Conversion Plug (1,5m cable), 4x Phoenix connectors, User manual
- Garanti
- 5 år
