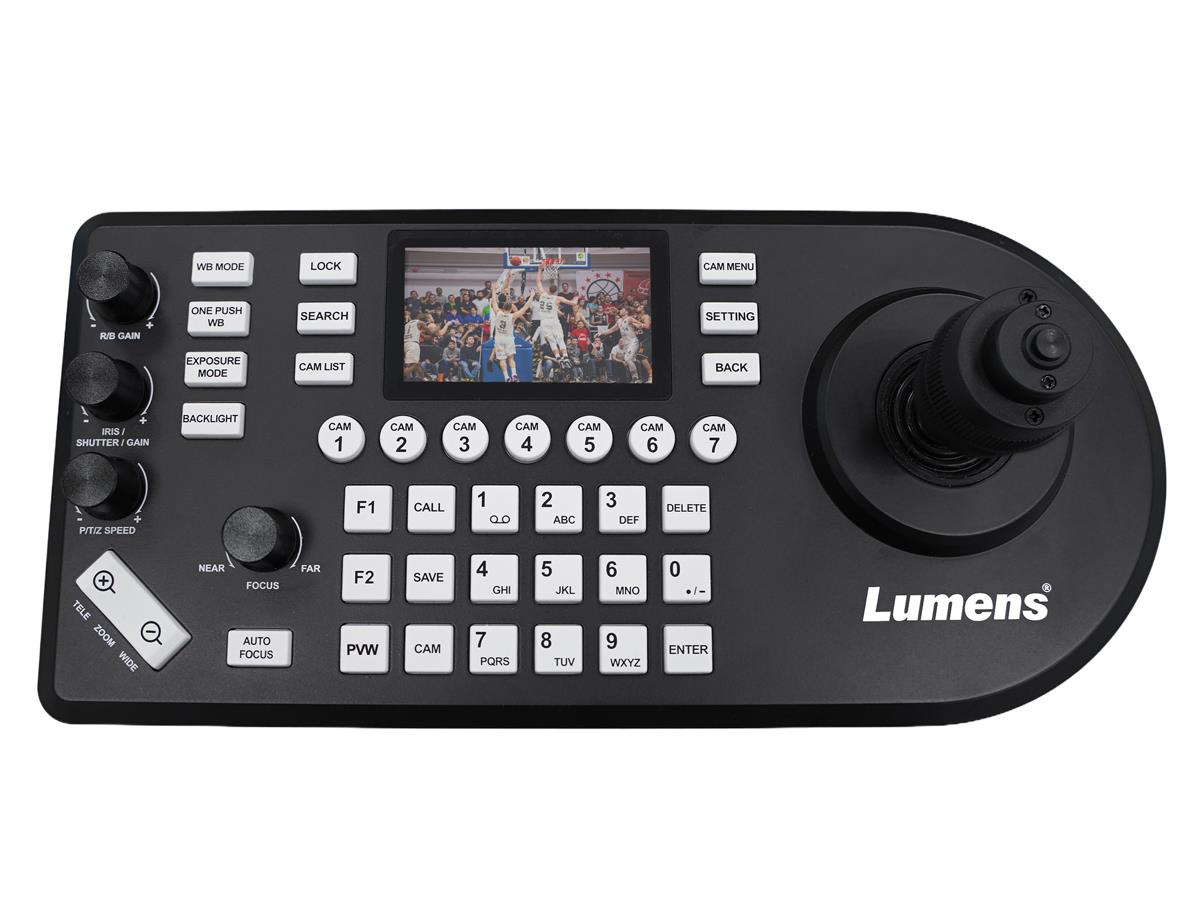

VS-KB21 - IP Camera Controller

  • Controls up-to total of 255 IP-connected cameras
  • Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
  • Supports RTSP Preview on LCD screen
  • Supports RS-232, RS-422, and Ethernet control
  • Supports VISCA and VISCA Over IP control protocols

3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.

Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.



Allmänt

Montering
Desktop
Interface typ
Joystick

Anslutningar

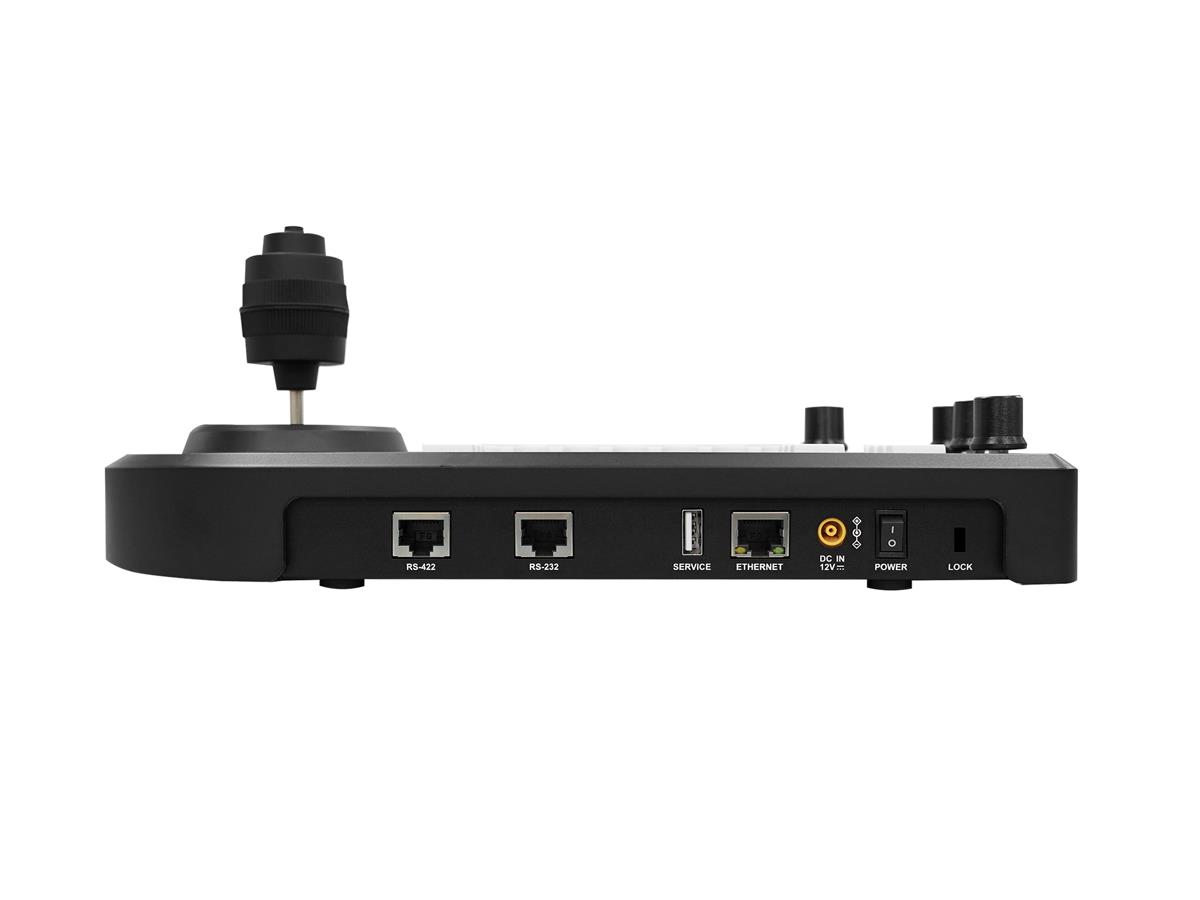

Styrportar
Ethernet/IP (RJ-45), RS-232, RS-422
Ethernet
Ja

Energi

Strömförsörjning
DC12V external power supply or PoE. Consumption max 5W

Mått och vikt

Bredd
302 mm
Djup
143 mm
Höjd
112 mm
Nettovikt
1,3 kg

Övrigt

Färg
Grå
Medföljande Tillbehör
Power cord, Power adapter
Garanti
5 år

Tillbehör

Artikelnummer 2265476
