VS-KB21N - IP Camera Controller with NDI
- Controls up-to total of 255 IP-connected or NDI-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP and NDI HX Stream Preview on LCD screen
- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA, VISCA Over IP and NDI control protocols
NDI Workflows
VS-KB21N identifies NDI cameras on the IP network and allows monitoring and full device control. The controller also supports the VISCA protocol making it a supremely versatile unit.
3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview

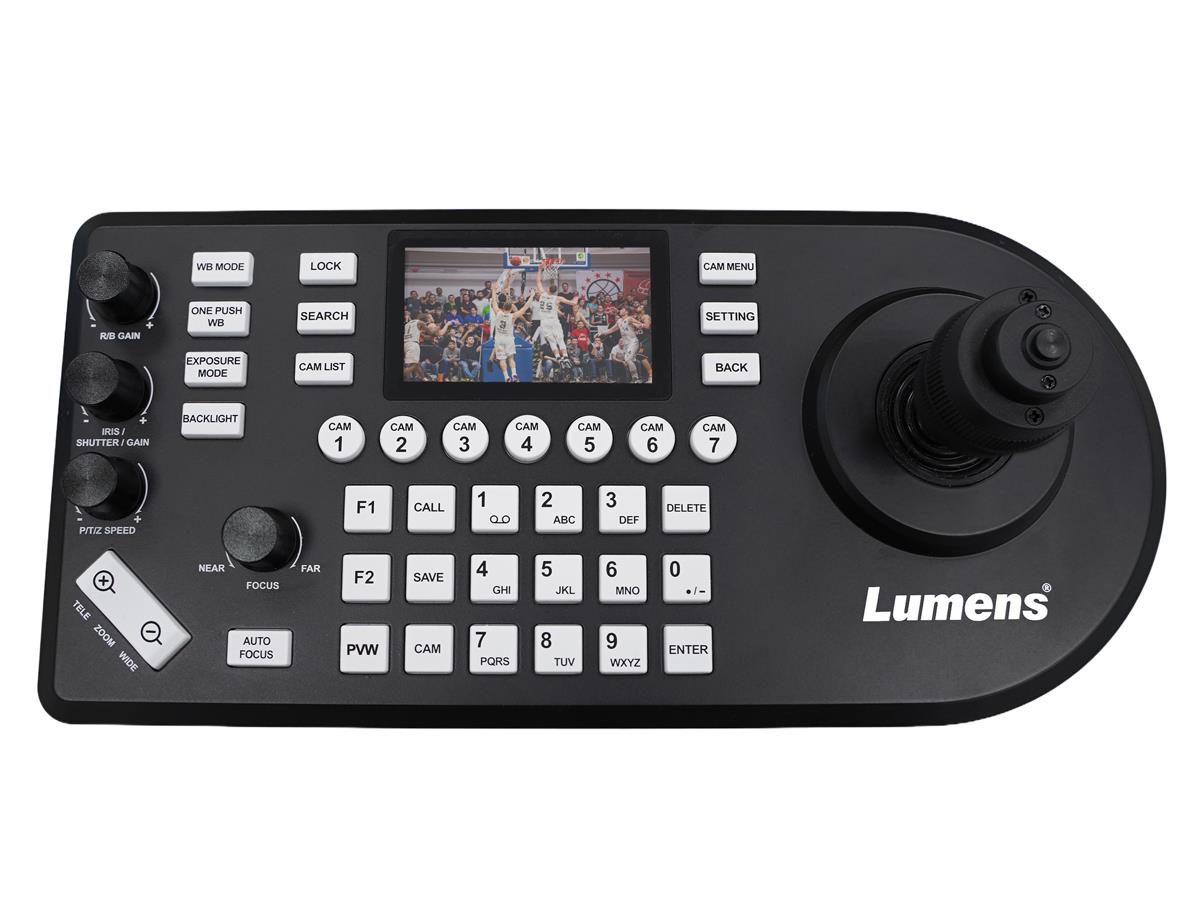

Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
Allmänt
- Montering
- Desktop
- Interface typ
- Joystick

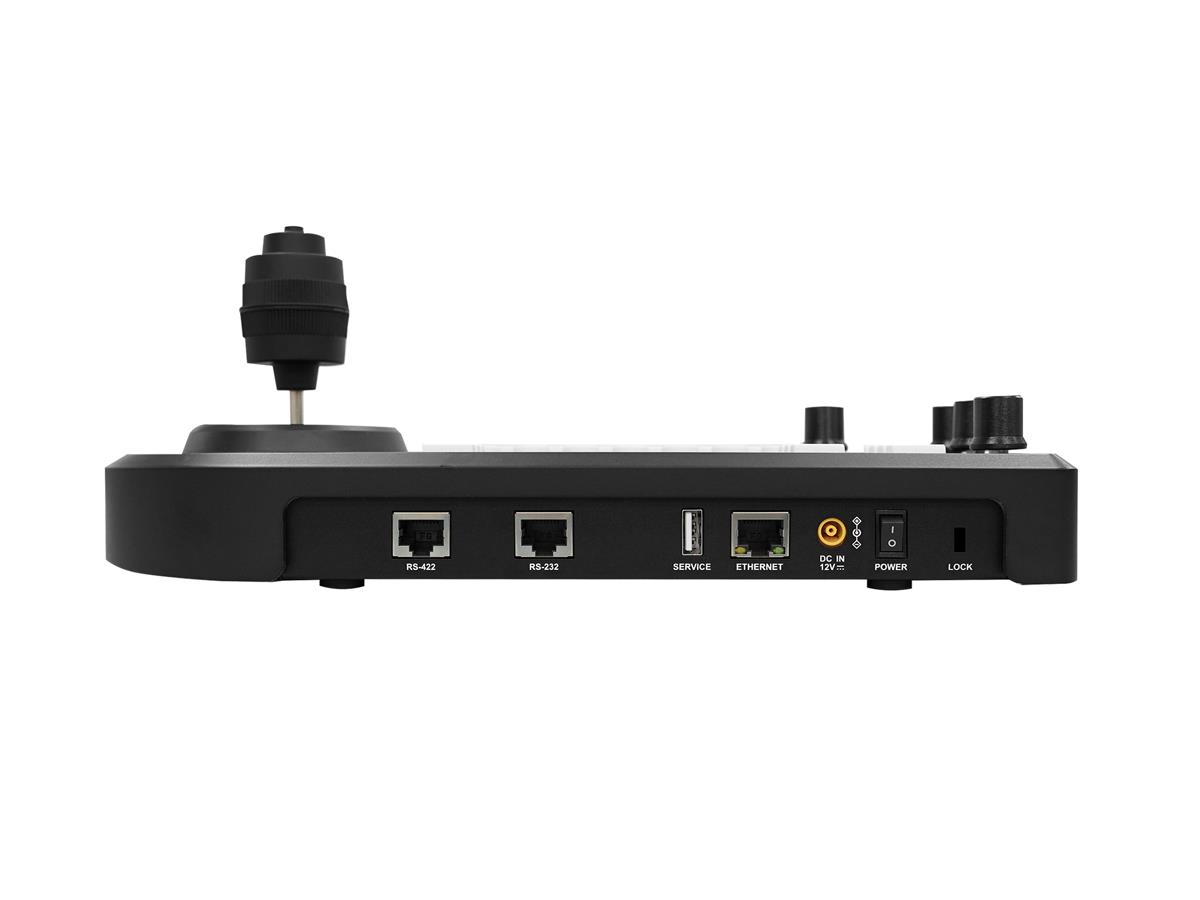

Anslutningar
- Styrportar
- Ethernet/IP (RJ-45), RS-232, RS-422
- Ethernet
- Ja
Energi
- Strömförsörjning
- DC12V external power supply or PoE. Consumption max 5W
Mått och vikt
- Bredd
- 302 mm
- Djup
- 143 mm
- Höjd
- 112 mm
- Nettovikt
- 1,3 kg
Övrigt
- Färg
- Grå
- Medföljande Tillbehör
- Power cord, Power adapter
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 376 x 225 x 182 mm
- Förpackningsvikt
- 2,74 kg
