Overview

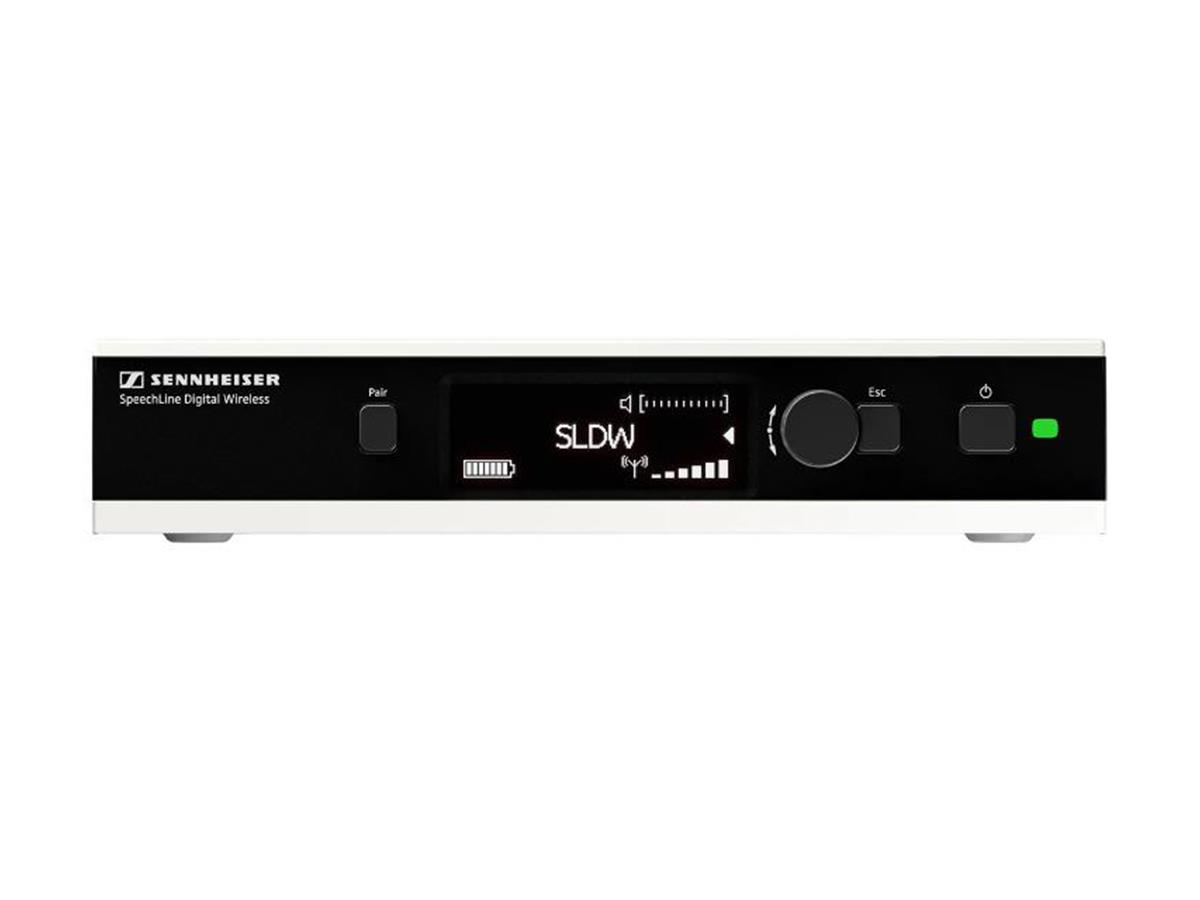

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted.
Furthermore, extension cables for wall mounting are available.
Features
- Automatic frequency and interference management
- Speech optimized automatics and sound profiles
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Media control protocol integration
- Secure 256 bit AES encryption
- Remote controllable
- Quick setup pairing process
Audio effects:
Low cut: -3 dB at 120 Hz
Equalizer: 7-band graphic equalizer with sound presets
Sound profiles: female voice, male voice, instrument/media
Allmänt
- Modellserie
- SpeechLine
- Mikrofon applikation
- Lös mottagare

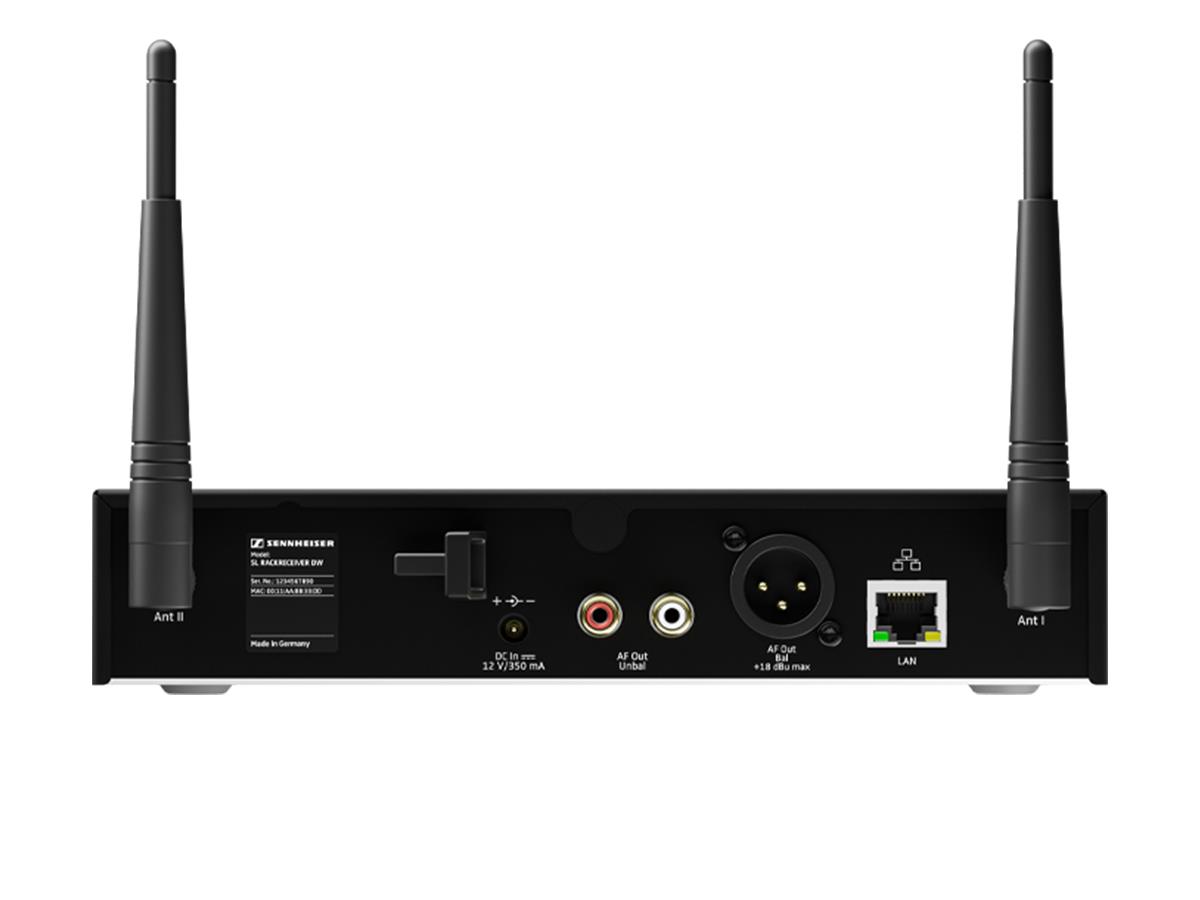

Anslutningar
- Ljudanslutning ut
- RCA x2, Unbalanced
- Ljudanslutning ut
- XLR x1 3pin Male, balanced
- Ethernet
- Ja Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
Trådlös specifikation
- Trådlös teknik
- Digital
- Radiofrekvens Min
- 1 880 MHz
- Radiofrekvens Max
- 1 900 MHz
- Latency
- 19 ms
Energi
- Strömförsörjning
- 12V DC external power supply, Current consumption 350 mA
Mått och vikt
- Bredd
- 212,1 mm
- Djup
- 155,8 mm
- Höjd
- 43,1 mm
- Nettovikt
- 0,83 kg
Övrigt
- Medföljande Tillbehör
- SL Reveiver DW - Rack Receiver, Power supply, Antennas
Förpackningsinfo
- Förpackningsstorlek
- 405 x 274 x 73 mm
- Förpackningsvikt
- 2,43 kg
